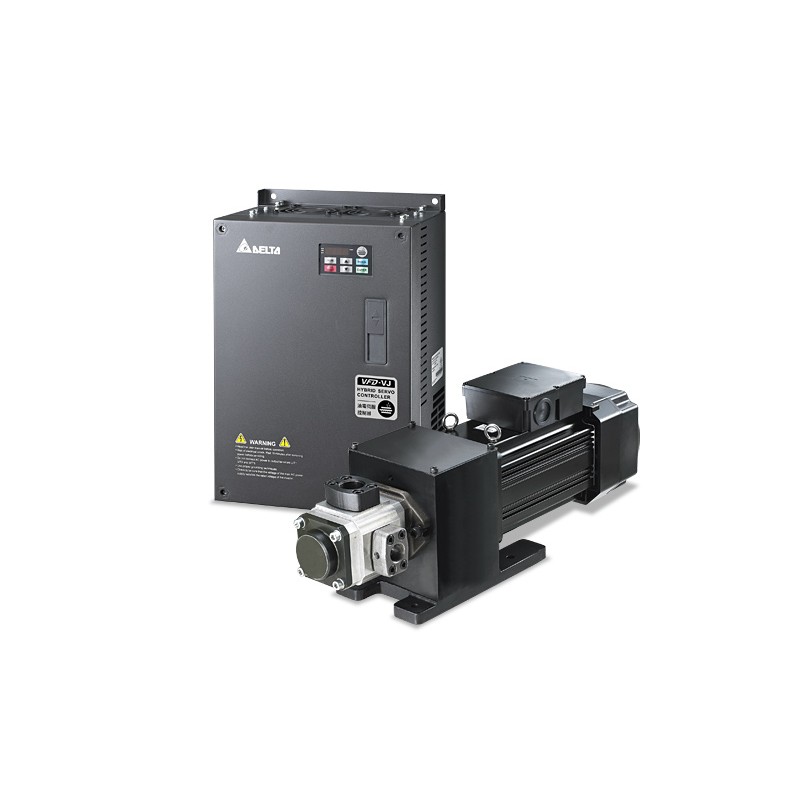

Delta HES063H43A – 460V SERIES Hybrid Energy System

Delta’s Hybrid Energy Saving (HES) System:

Provides precise pressure and flow controls for each injection molding process and also solves the energy waste issues of a traditional injection molding machine. This solution helps to improve product quality, market competitiveness and productivity.

• Superior Energy-Saving Outcomes: Lower energy consumption rate at the clamping and cooling stage while providing high productivity and high precision.
• 40% less energy consumption compared to a variable pump hydraulic systems.
• 60% less energy consumption compared to a traditional quantitative pump hydraulic system.
• Low Oil Temperature: Oil temperature reduced by 5~10 oC; oil usage reduced by 50~60%; requires 50% less oil tank volume; lower cooler specifications required and for some cases cooler is not required.
• High Duplication Accuracy: Precise flow and pressure control featuring duplication of products with less than 0.09% difference.
• Long Holding pressure: Keeps mold halves securely closed for a longer period for thick plastic products formation.
• Good Frequency Response: When uses Delta HES with permanent magnetic servo motor (PMSM) speeds up frequency response to 50ms.
• Suitable for Harsh Environments: The resolver used in Delta HES is resistant to earthquakes, oil and dust.
• Old Machine Replenishment: Supports analog command 0~10V and linear correction (3 points), no replacing
• Flow Convergence: Saves cost on tubes, large flow capacity, enhances energy-saving.
