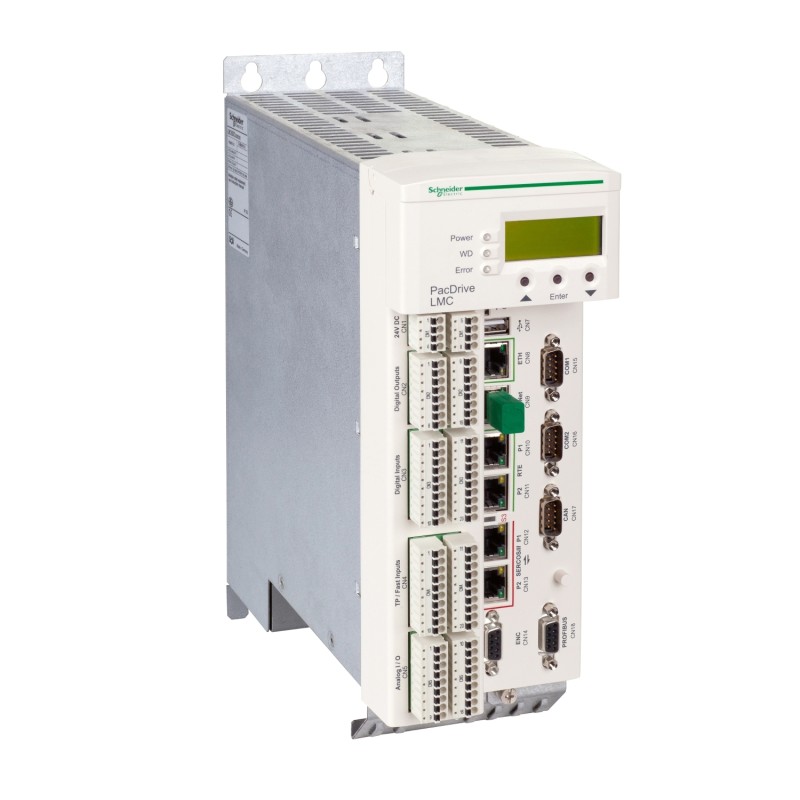

Schneider LMC400CBI10000 Motion Controller – 16 Axis with Acc Kit, OM CAN & OM RT-Ethernet
$0.00
Tax included
Schneider LMC400CBI10000 Motion Controller: Advanced 16-Axis Solution with Comprehensive ConnectivityOverviewThe Schneider LMC400CBI10000 Motion Controller represents the pinnacle of motion control technology, delivering unparalleled performance and flexibility for complex automation applications. Engineered for high-precision control of up to 16 axes, this advanced motion controller is ideal for demanding industrial environments requiring robust and reliable automation solutions.Key Features16-Axis Control: The LMC400CBI10000 supports up to 16 axes of motion control, making it an ideal choice for multi-axis applications including robotics, CNC machinery, and automated production lines.Advanced Acceleration Kit (Acc Kit): Equipped with an acceleration kit, the LMC400 ensures smooth and pre
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Schneider LMC400CBI10000 Motion Controller: Advanced 16-Axis Solution with Comprehensive Connectivity
Overview
The Schneider LMC400CBI10000 Motion Controller represents the pinnacle of motion control technology, delivering unparalleled performance and flexibility for complex automation applications. Engineered for high-precision control of up to 16 axes, this advanced motion controller is ideal for demanding industrial environments requiring robust and reliable automation solutions.
Key Features
- 16-Axis Control: The LMC400CBI10000 supports up to 16 axes of motion control, making it an ideal choice for multi-axis applications including robotics, CNC machinery, and automated production lines.
- Advanced Acceleration Kit (Acc Kit): Equipped with an acceleration kit, the LMC400 ensures smooth and precise motion profiles, minimizing mechanical stress and optimizing overall system performance.
- OM CAN Interface: The integrated OM CAN (Controller Area Network) interface provides reliable and efficient communication between the motion controller and various field devices, enhancing system integration and data exchange.
- OM RT-Ethernet Communication: Featuring OM RT-Ethernet, the LMC400 offers high-speed real-time Ethernet communication, facilitating seamless data transfer and synchronization across networked devices for improved system coordination and response times.
Technical Specifications
- Model: Schneider LMC400CBI10000
- Motion Control: 16 axes
- Acceleration Kit: Included for optimized motion profiles
- Communication Interfaces:
- OM CAN: Ensures robust device communication and control
- OM RT-Ethernet: Provides high-speed, real-time network connectivity
- Operating Temperature Range: [Insert temperature range if known]
- Power Supply: [Insert power supply details if known]
- Dimensions: [Insert dimensions if known]
- Mounting: [Insert mounting options if known]
Applications
The Schneider LMC400CBI10000 is designed for a wide range of industrial applications, including but not limited to:
- Robotics: Precision control of robotic arms and systems.
- CNC Machining: Accurate and efficient operation of CNC machines.
- Automated Production Lines: Synchronization and control of complex production processes.
- Material Handling: Advanced control of conveyors and automated material handling systems.
Benefits
- Enhanced Performance: Achieve superior motion control with high precision and minimal latency.
- Scalability: Easily scalable to accommodate various system sizes and complexities.
- Reliability: Built for industrial environments, ensuring consistent operation even in demanding conditions.
- Integration Flexibility: Seamlessly integrates with existing systems through versatile communication interfaces.
Why Choose Schneider LMC400CBI10000?
The Schneider LMC400CBI10000 Motion Controller stands out for its combination of advanced features, superior performance, and flexible connectivity options. Whether you're enhancing an existing automation setup or designing a new system from scratch, this motion controller provides the robustness and precision needed to drive your operations forward.
For more information or to request a quote, contact our sales team today.
| range of product |
PacDrive 3
|
|
|---|---|---|
| product or component type |
Motion controller
|
| product compatibility |
LMC400
|
|
|---|---|---|
| number of axis |
<= 16
|
|
| discrete input number |
20 digital input conforming to IEC 61131-2 Type 1
4 interrupt input conforming to IEC 61131-2 Type 1 16 touch probe input conforming to IEC 61131-2 Type 1 |
|
| discrete input voltage |
20...33 V
0...6 V |
|
| discrete input voltage type |
DC
|
|
| analogue input number |
2
|
|
| analogue input type |
Voltage analog input : - 10...10 V
Current analog input : - 20...20 mA |
|
| analogue input resolution |
12 bits
|
|
| discrete input current |
5 mA digital input
5 mA interrupt input 5 mA touch probe input |
|
| input impedance |
100000 Ohm analog input
500 Ohm |
|
| anti bounce filtering |
Configurable from 1 ms or 5 ms for digital input
From 100 µs for touch probe input Configurable from 0.1 ms or 1 ms for interrupt input |
|
| discrete output number |
16 digital output
2 analog output |
|
| discrete output current |
250 mA for digital output
|
|
| leakage current |
< 0.4 mA
|
|
| number of I/O expansion module |
2
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| power consumption in W |
36 W
|
|
| memory type |
RAM DDR2 512 MB
NVRAM 128 kB |
|
| programming language |
IL (instruction list)
LD (ladder) FBD (function block diagram) CFC (continuous function chart) ST (structured text) SFC (sequential function chart) |
|
| integrated connection type |
2 Ethernet port, connector RJ45 for protocol Sercos
1 Ethernet port, connector RJ45 for protocol Ethernet 10/100BASE-T, FTP/HTTP 1 CAN port, connector SUB-D 9 for protocol CANopen 1 USB port, connector USB type A 2 Ethernet port, connector RJ45 for protocol RT-Ethernet (real-time) 1 Ethernet port, connector RJ45 for protocol PacNet 1 port, connector SUB-D 9 for protocol Profibus DP 1 COM1 serial link, connector SUB-D 9 for protocol RS232 1 COM2 serial link, connector SUB-D 9 for protocol RS422/RS485 1 port, connector SUB-D 9 for master encoder |
|
| supply |
Power supply 24 V DC, 1 A
|
|
| width |
100 mm
|
|
| height |
310 mm
|
|
| depth |
243 mm
|
|
| product weight |
3.5 kg
|
| standards |
EN/IEC 61131-2
CSA C22.2 No 14 CSA C22.2 No 274 UL 508C |
|
|---|---|---|
| product certifications |
cULus
CE CSA EAC |
|
| ambient air temperature for operation |
5...55 °C
|
|
| relative humidity |
5...95 % without condensation
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| pollution degree |
2 conforming to IEC 61131-2
|
|
| vibration resistance |
3.5 mm (f = 5...8.4 Hz)
10 m/s² (f = 8.4...150 Hz) |
|
| shock resistance |
150 m/s² (duration = 6 ms) conforming to EN/IEC 60721-3-3
operation
|
LMC400CBI10000
Specific References
- UPC
- LMC400CBI100
- MPN
- LMC400CBI10000
