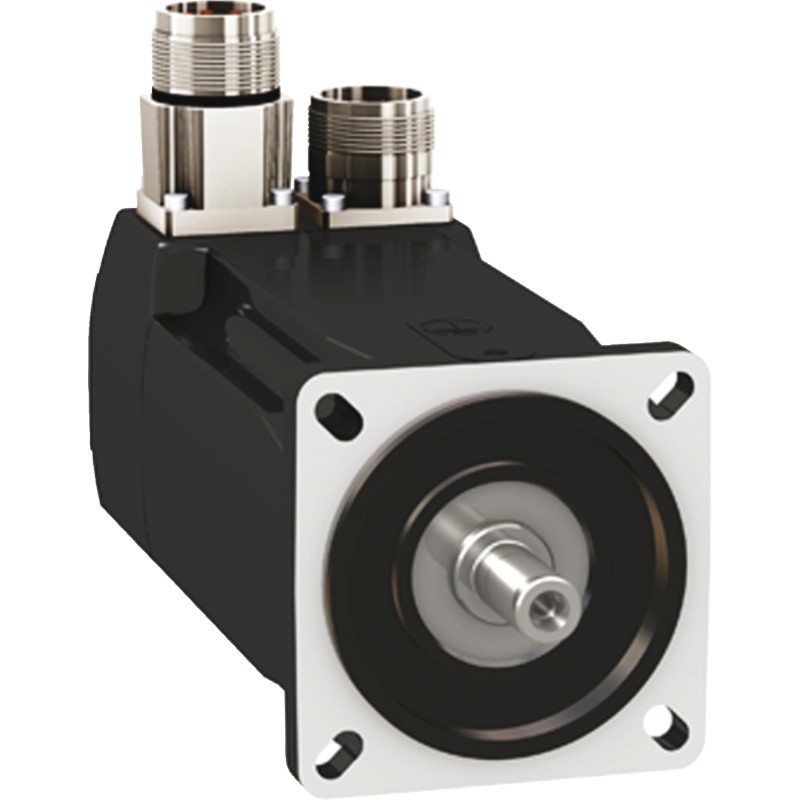

Schneider BMH0702T12F2A Servo Motor - Precision Motion Control Solution

Name: Schneider BMH0702T12F2A Servo Motor - Precision Motion Control Solution
Brand: Schneider
SKU: BMH0702T12F2A
Availability: OutOfStock

$0.00

Tax included

Schneider BMH0702T12F2A Servo MotorThe Schneider BMH0702T12F2A Servo Motor embodies precision, reliability, and advanced engineering to meet the demands of high-performance industrial applications. Engineered with cutting-edge technology and precision components, this servo motor stands as a pinnacle of quality and efficiency in the realm of motion control.Technical Specifications:Model: BMH0702T12F2ARated Power: [Insert specific power rating]Voltage: [Specify voltage range]Current: [Detail current rating]Speed Range: [Specify speed range]Construction: High-grade materials ensure durability and resilience to demanding operational conditions.Encoder: [Detail encoder type and resolution]Mounting: Versatile mounting options for seamless integration into various systems.Communication Protocols

Quantity

Out-of-Stock

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Schneider BMH0702T12F2A Servo Motor

The Schneider BMH0702T12F2A Servo Motor embodies precision, reliability, and advanced engineering to meet the demands of high-performance industrial applications. Engineered with cutting-edge technology and precision components, this servo motor stands as a pinnacle of quality and efficiency in the realm of motion control.

Technical Specifications:

Model: BMH0702T12F2A
Rated Power: [Insert specific power rating]
Voltage: [Specify voltage range]
Current: [Detail current rating]
Speed Range: [Specify speed range]
Construction: High-grade materials ensure durability and resilience to demanding operational conditions.
Encoder: [Detail encoder type and resolution]
Mounting: Versatile mounting options for seamless integration into various systems.
Communication Protocols: [Include supported communication protocols, e.g., EtherCAT, Modbus, etc.]

Key Features:

Precision Control: This servo motor delivers exceptional precision control, ensuring accurate positioning and smooth operation in critical applications.
High Torque Density: With an optimized design, it provides impressive torque density, empowering machinery to handle heavy loads efficiently.
Robust Construction: Engineered with robust materials, it withstands challenging environmental conditions, ensuring longevity and reliability.
Efficiency: Its advanced design maximizes energy efficiency, contributing to reduced operational costs and environmental impact.
Integration Flexibility: Compatible with various drive systems and controllers, offering seamless integration into diverse automation setups.
Enhanced Performance: Rapid response times and superior performance characteristics make it an ideal choice for dynamic industrial applications.

Applications:

Industrial Automation: Perfectly suited for precision-driven automation processes in industries like manufacturing, robotics, CNC machinery, and more.
Motion Control Systems: Ideal for applications requiring precise speed, position, and torque control.
Robotics: Enables agile and accurate movement in robotic systems for tasks demanding high precision.

Conclusion:

The Schneider BMH0702T12F2A Servo Motor represents a pinnacle of technological innovation, delivering unparalleled performance, reliability, and precision control in industrial automation. Engineered for excellence, it stands as a dependable solution for various motion control applications.

For inquiries or to integrate this high-performance servo motor into your system, contact us today.

Main
product or component type	Servo motor
device short name	BMH
maximum mechanical speed	8000 rpm
continuous stall torque	2.5 N.m for LXM32.D30M2 10 A at 115 V single phase 2.5 N.m for LXM32.D18M2 6 A at 230 V single phase
peak stall torque	6.4 N.m for LXM32.D30M2 10 A at 115 V single phase 7.4 N.m for LXM32.D18M2 6 A at 230 V single phase
nominal output power	600 W for LXM32.D30M2 10 A at 115 V single phase 900 W for LXM32.D18M2 6 A at 230 V single phase
nominal torque	2.3 N.m for LXM32.D30M2 10 A at 115 V single phase 2.1 N.m for LXM32.D18M2 6 A at 230 V single phase
nominal speed	4000 rpm for LXM32.D18M2 6 A at 230 V single phase 2500 rpm for LXM32.D30M2 10 A at 115 V single phase
product compatibility	LXM32.D30M2 at 115 V single phase LXM32.D18M2 at 230 V single phase
shaft end	Keyed
IP degree of protection	IP54 (standard)
speed feedback resolution	131072 points/turn x 4096 turns
holding brake	With
mounting support	International standard flange
electrical connection	Rotatable right-angled connectors

Complementary
range compatibility	Lexium 32
[Us] rated supply voltage	240 V
network number of phases	Three phase
continuous stall current	5.38 A
continuous power	1.51 W
maximum current Irms	15 A for LXM32.D30M2 17.5 A for LXM32.D18M2
maximum permanent current	17.71 A
second shaft	Without second shaft end
shaft diameter	11 mm
shaft length	23 mm
key width	18 mm
feedback type	Multiturn SinCos Hiperface
holding torque	3 N.m (holding brake)
motor flange size	70 mm
number of motor stacks	2
torque constant	0.46 N.m/A at 120 °C
back emf constant	29.6 V/krpm at 120 °C
number of motor poles	10
rotor inertia	1.24 kg.cm²
stator resistance	1.15 Ohm at 20 °C
stator inductance	3.6 mH at 20 °C
stator electrical time constant	3.1 ms at 20 °C
maximum radial force Fr	390 N at 6000 rpm 410 N at 5000 rpm 450 N at 4000 rpm 490 N at 3000 rpm 560 N at 2000 rpm 710 N at 1000 rpm
maximum axial force Fa	0.2 x Fr
brake pull-in power	7 W
type of cooling	Natural convection
length	193 mm
centring collar diameter	60 mm
centring collar depth	2.5 mm
number of mounting holes	4
mounting holes diameter	5.5 mm
circle diameter of the mounting holes	82 mm
product weight	3.3 kg
