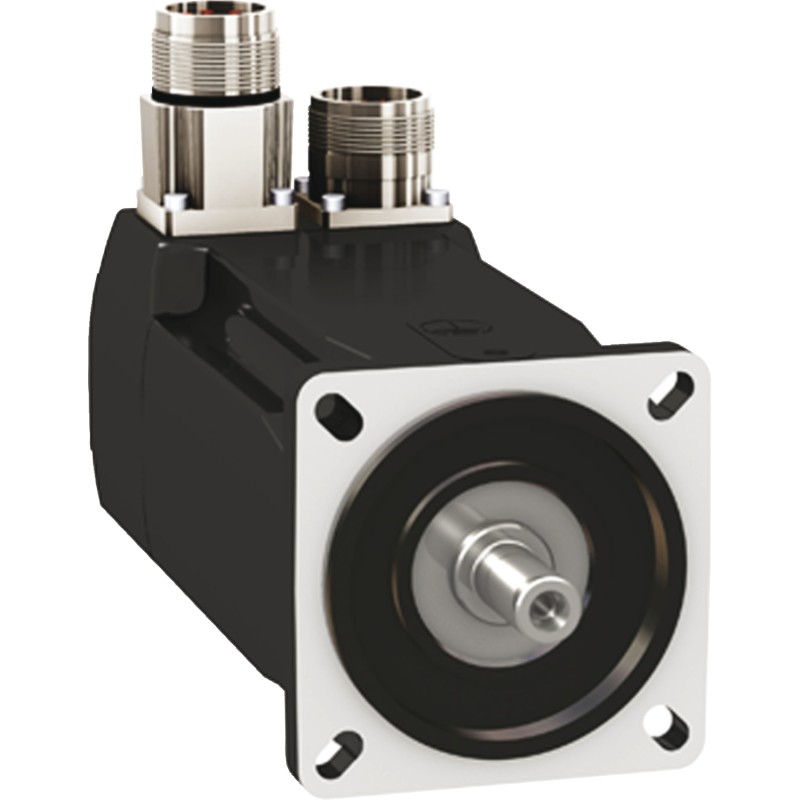

Schneider BMH0702T17F1A Servo Motor | 2.5 Nm Torque, 8000 RPM, Keyed Shaft with Brake, IP54
search
  • Schneider BMH0702T17F1A Servo Motor | 2.5 Nm Torque, 8000 RPM, Keyed Shaft with Brake, IP54

Schneider BMH0702T17F1A Servo Motor - 2.5 Nm Torque, 8000 RPM, Keyed Shaft, Brake, IP54

$0.00
Tax included
Schneider BMH0702T17F1A Servo MotorOverview: The Schneider BMH0702T17F1A Servo Motor exemplifies cutting-edge precision and reliability for industrial automation applications. Engineered to deliver superior performance with a high torque-to-weight ratio, this servo motor is ideal for sophisticated machinery and robotics that demand both speed and accuracy.Key Features:Torque Rating: The BMH0702T17F1A offers a robust torque output of 2.5 Nm, making it suitable for a wide range of applications requiring significant force and stability.High-Speed Operation: With a maximum rotational speed of 8000 RPM, this servo motor ensures rapid and efficient movement, optimizing operational throughput and reducing cycle times.Keyed Shaft Design: Equipped with a keyed shaft, the motor provides enhanced me
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Schneider BMH0702T17F1A Servo Motor

Overview: The Schneider BMH0702T17F1A Servo Motor exemplifies cutting-edge precision and reliability for industrial automation applications. Engineered to deliver superior performance with a high torque-to-weight ratio, this servo motor is ideal for sophisticated machinery and robotics that demand both speed and accuracy.

Key Features:

  • Torque Rating: The BMH0702T17F1A offers a robust torque output of 2.5 Nm, making it suitable for a wide range of applications requiring significant force and stability.

  • High-Speed Operation: With a maximum rotational speed of 8000 RPM, this servo motor ensures rapid and efficient movement, optimizing operational throughput and reducing cycle times.

  • Keyed Shaft Design: Equipped with a keyed shaft, the motor provides enhanced mechanical coupling and stability, minimizing slippage and ensuring consistent performance under load.

  • Integrated Brake: The built-in brake feature enhances the motor’s ability to hold positions accurately and safely, preventing unintended movement during pauses or power outages.

  • Durability and Protection: Designed with an IP54 rating, the BMH0702T17F1A offers superior protection against dust ingress and water splashes, ensuring reliable operation in demanding environments.

Applications: The Schneider BMH0702T17F1A is ideally suited for high-precision tasks in sectors such as robotics, CNC machinery, packaging, and material handling. Its combination of high torque, speed, and durability makes it a versatile choice for both standard and complex automation requirements.

Specifications:

  • Model: BMH0702T17F1A
  • Torque: 2.5 Nm
  • Speed: 8000 RPM
  • Shaft: Keyed
  • Brake: Integrated
  • Protection Rating: IP54

Advantages:

  • Precision Engineering: Ensures high accuracy and repeatability for critical processes.
  • Versatile Performance: Adapts to a broad range of industrial applications with varying demands.
  • Enhanced Safety: The integrated brake system offers additional safety and stability.

Optimize your automation processes with the Schneider BMH0702T17F1A Servo Motor, where cutting-edge technology meets exceptional reliability.

Main
product or component type
Servo motor
device short name
BMH
maximum mechanical speed
8000 rpm
continuous stall torque
2.5 N.m for LXM32.D30M2 10 A at 115 V single phase
2.5 N.m for LXM32.D18M2 6 A at 230 V single phase
peak stall torque
6.4 N.m for LXM32.D30M2 10 A at 115 V single phase
7.4 N.m for LXM32.D18M2 6 A at 230 V single phase
nominal output power
600 W for LXM32.D30M2 10 A at 115 V single phase
900 W for LXM32.D18M2 6 A at 230 V single phase
nominal torque
2.3 N.m for LXM32.D30M2 10 A at 115 V single phase
2.1 N.m for LXM32.D18M2 6 A at 230 V single phase
nominal speed
4000 rpm for LXM32.D18M2 6 A at 230 V single phase
2500 rpm for LXM32.D30M2 10 A at 115 V single phase
product compatibility
LXM32.D30M2 at 115 V single phase
LXM32.D18M2 at 230 V single phase
shaft end
Keyed
IP degree of protection
IP54 (standard)
speed feedback resolution
32768 points/turn x 4096 turns
holding brake
With
mounting support
International standard flange
electrical connection
Straight connectors

Complementary
range compatibility
Lexium 32
[Us] rated supply voltage
240 V
network number of phases
Three phase
continuous stall current
5.38 A
continuous power
1.51 W
maximum current Irms
15 A for LXM32.D30M2
17.5 A for LXM32.D18M2
maximum permanent current
17.71 A
second shaft
Without second shaft end
shaft diameter
11 mm
shaft length
23 mm
key width
18 mm
feedback type
Multiturn SinCos Hiperface
holding torque
3 N.m (holding brake)
motor flange size
70 mm
number of motor stacks
2
torque constant
0.46 N.m/A at 120 °C
back emf constant
29.6 V/krpm at 120 °C
number of motor poles
10
rotor inertia
1.24 kg.cm²
stator resistance
1.15 Ohm at 20 °C
stator inductance
3.6 mH at 20 °C
stator electrical time constant
3.1 ms at 20 °C
maximum radial force Fr
390 N at 6000 rpm
410 N at 5000 rpm
450 N at 4000 rpm
490 N at 3000 rpm
560 N at 2000 rpm
710 N at 1000 rpm
maximum axial force Fa
0.2 x Fr
brake pull-in power
7 W
type of cooling
Natural convection
length
193 mm
centring collar diameter
60 mm
centring collar depth
2.5 mm
number of mounting holes
4
mounting holes diameter
5.5 mm
circle diameter of the mounting holes
82 mm
product weight
3.3 kg
BMH0702T17F1A

Specific References

UPC
BMH0702T17F1
MPN
BMH0702T17F1A
