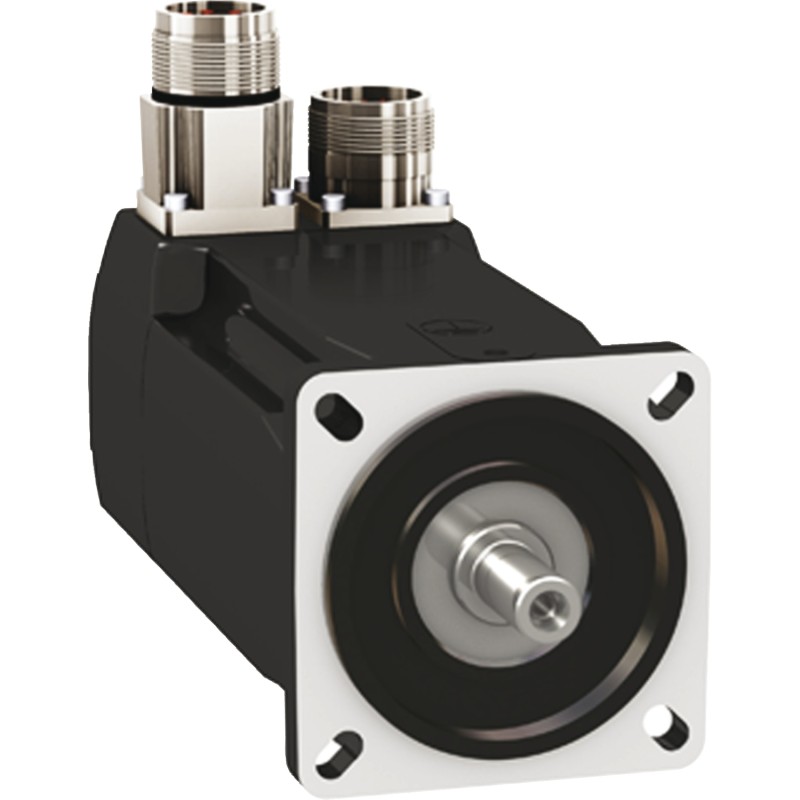

Schneider BMH0702P17F2A Servo Motor - 2.5 Nm Torque - 8000 RPM - Keyed Shaft with Brake - IP54 Protection
$0.00
Tax included
Schneider BMH0702P17F2A Servo Motor - Precision Engineering for Superior PerformanceExperience unparalleled control and efficiency with the Schneider BMH0702P17F2A servo motor. Engineered for high-performance applications, this advanced motor combines robust construction with cutting-edge technology to meet the demanding needs of industrial automation.Key Features:Torque and Speed: Delivering a nominal torque of 2.5 Nm and achieving speeds up to 8000 rpm, the BMH0702P17F2A ensures rapid and precise movement, ideal for high-speed, high-torque applications.Keyed Shaft Design: The motor features a keyed shaft that provides enhanced stability and reliable coupling with your machinery, reducing the risk of slippage and ensuring consistent performance.Integrated Brake: Equipped with a high-quali
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Schneider BMH0702P17F2A Servo Motor - Precision Engineering for Superior Performance
Experience unparalleled control and efficiency with the Schneider BMH0702P17F2A servo motor. Engineered for high-performance applications, this advanced motor combines robust construction with cutting-edge technology to meet the demanding needs of industrial automation.
Key Features:
Torque and Speed: Delivering a nominal torque of 2.5 Nm and achieving speeds up to 8000 rpm, the BMH0702P17F2A ensures rapid and precise movement, ideal for high-speed, high-torque applications.
Keyed Shaft Design: The motor features a keyed shaft that provides enhanced stability and reliable coupling with your machinery, reducing the risk of slippage and ensuring consistent performance.
Integrated Brake: Equipped with a high-quality brake, this servo motor offers exceptional stopping power and positional accuracy, making it ideal for applications requiring precise hold and quick stops.
Durability and Protection: With an IP54 rating, the BMH0702P17F2A is designed to withstand dust and water splashes, ensuring reliable operation in challenging environments. Its rugged construction ensures long-term durability and minimal maintenance.
Compatibility and Integration: Designed to integrate seamlessly with a variety of control systems, the BMH0702P17F2A is a versatile choice for diverse applications, from robotics and conveyor systems to CNC machinery and automated processes.
High Efficiency: Schneider’s servo motor technology ensures high efficiency and minimal energy loss, contributing to overall system performance and reducing operational costs.
Applications:
The Schneider BMH0702P17F2A servo motor is perfect for a wide range of industrial applications, including:
- Robotics: Precision control for robotic arms and automation systems.
- CNC Machinery: Accurate positioning and control for milling, turning, and drilling operations.
- Conveyor Systems: Reliable and efficient movement control in automated material handling.
- Packaging Machinery: High-speed and high-torque performance for packaging lines.
Technical Specifications:
- Model: BMH0702P17F2A
- Nominal Torque: 2.5 Nm
- Maximum Speed: 8000 rpm
- Shaft Type: Keyed
- Brake: Integrated
- Protection Rating: IP54
Why Choose Schneider?
Schneider Electric is a global leader in energy management and automation, known for its innovative solutions and commitment to quality. The BMH0702P17F2A servo motor reflects Schneider's dedication to providing reliable, high-performance products that drive efficiency and productivity in industrial operations.
Optimize your automation with the Schneider BMH0702P17F2A servo motor—where precision meets performance.
For more information or to request a quote, contact us today.
| product or component type |
Servo motor
|
|
|---|---|---|
| device short name |
BMH
|
|
| maximum mechanical speed |
8000 rpm
|
|
| continuous stall torque |
2.5 N.m for LXM32.D12N4 3 A at 400 V three phase
2.5 N.m for LXM32.D12N4 3 A at 480 V three phase |
|
| peak stall torque |
7.4 N.m for LXM32.D12N4 3 A at 400 V three phase
7.4 N.m for LXM32.D12N4 3 A at 480 V three phase |
|
| nominal output power |
700 W for LXM32.D12N4 3 A at 400 V three phase
700 W for LXM32.D12N4 3 A at 480 V three phase |
|
| nominal torque |
2.2 N.m for LXM32.D12N4 3 A at 400 V three phase
2.2 N.m for LXM32.D12N4 3 A at 480 V three phase |
|
| nominal speed |
3000 rpm for LXM32.D12N4 3 A at 400 V three phase
3000 rpm for LXM32.D12N4 3 A at 480 V three phase |
|
| product compatibility |
LXM32.D12N4 at 400...480 V three phase
|
|
| shaft end |
Keyed
|
|
| IP degree of protection |
IP54 (standard)
|
|
| speed feedback resolution |
32768 points/turn x 4096 turns
|
|
| holding brake |
With
|
|
| mounting support |
International standard flange
|
|
| electrical connection |
Rotatable right-angled connectors
|
| range compatibility |
Lexium 32
|
|
|---|---|---|
| [Us] rated supply voltage |
480 V
|
|
| network number of phases |
Three phase
|
|
| continuous stall current |
2.94 A
|
|
| continuous power |
1.51 W
|
|
| maximum current Irms |
9.7 A for LXM32.D12N4
|
|
| maximum permanent current |
9.68 A
|
|
| second shaft |
Without second shaft end
|
|
| shaft diameter |
11 mm
|
|
| shaft length |
23 mm
|
|
| key width |
18 mm
|
|
| feedback type |
Multiturn SinCos Hiperface
|
|
| holding torque |
3 N.m (holding brake)
|
|
| motor flange size |
70 mm
|
|
| number of motor stacks |
2
|
|
| torque constant |
0.84 N.m/A at 120 °C
|
|
| back emf constant |
54.08 V/krpm at 120 °C
|
|
| number of motor poles |
10
|
|
| rotor inertia |
1.24 kg.cm²
|
|
| stator resistance |
3.8 Ohm at 20 °C
|
|
| stator inductance |
12.2 mH at 20 °C
|
|
| stator electrical time constant |
3.2 ms at 20 °C
|
|
| maximum radial force Fr |
390 N at 6000 rpm
410 N at 5000 rpm 450 N at 4000 rpm 490 N at 3000 rpm 560 N at 2000 rpm 710 N at 1000 rpm |
|
| maximum axial force Fa |
0.2 x Fr
|
|
| brake pull-in power |
7 W
|
|
| type of cooling |
Natural convection
|
|
| length |
193 mm
|
|
| centring collar diameter |
60 mm
|
|
| centring collar depth |
2.5 mm
|
|
| number of mounting holes |
4
|
|
| mounting holes diameter |
5.5 mm
|
|
| circle diameter of the mounting holes |
82 mm
|
|
| product weight |
3.3 kg
|
BMH0702P17F2A
Specific References
- UPC
- BMH0702P17F2
- MPN
- BMH0702P17F2A
