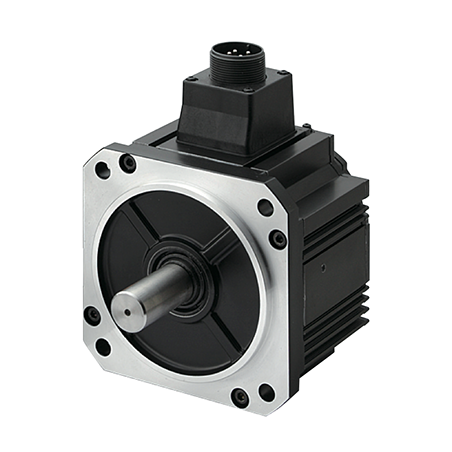

Panasonic MINAS A5 MDME044S1C 400V 400W Servo Motor

Name: Panasonic MINAS A5 MDME044S1C 400V 400W Servo Motor
Brand: Panasonic
SKU: MDME044S1C
Availability: OutOfStock

$0.00

Tax included

Product DescriptionPanasonic MINAS A5 MDME044S1C 400V 400W Servo MotorThe Panasonic MINAS A5 MDME044S1C is a high-performance servo motor designed to deliver exceptional precision and efficiency in demanding industrial applications. Featuring a robust 400W power rating and operating at 400V, this servo motor is engineered to meet the rigorous requirements of advanced automation systems.Key Features:High Torque and Precision: The MINAS A5 MDME044S1C provides superior torque output and accurate control, making it ideal for applications requiring high precision and reliability.Advanced Control Technology: Incorporates Panasonic's sophisticated control algorithms to ensure smooth and accurate motion, reducing system errors and enhancing performance.Enhanced Durability: Constructed with high-qu

Quantity

Out-of-Stock

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Product Description

Panasonic MINAS A5 MDME044S1C 400V 400W Servo Motor

The Panasonic MINAS A5 MDME044S1C is a high-performance servo motor designed to deliver exceptional precision and efficiency in demanding industrial applications. Featuring a robust 400W power rating and operating at 400V, this servo motor is engineered to meet the rigorous requirements of advanced automation systems.

Key Features:

High Torque and Precision: The MINAS A5 MDME044S1C provides superior torque output and accurate control, making it ideal for applications requiring high precision and reliability.
Advanced Control Technology: Incorporates Panasonic's sophisticated control algorithms to ensure smooth and accurate motion, reducing system errors and enhancing performance.
Enhanced Durability: Constructed with high-quality materials and designed to withstand harsh operational environments, this servo motor offers long-lasting durability and reduced maintenance needs.
Compact Design: The motor's compact and lightweight design allows for flexible integration into various setups, making it suitable for space-constrained applications.
Energy Efficiency: Optimized for energy efficiency, the MINAS A5 reduces operational costs while maintaining high performance, contributing to lower total cost of ownership.
Easy Integration: Compatible with a wide range of Panasonic and third-party control systems, facilitating straightforward integration into existing setups and minimizing downtime.

Applications:

The Panasonic MINAS A5 MDME044S1C is ideal for applications in robotics, CNC machinery, packaging equipment, and other automated systems where precise control and reliability are paramount.

Technical Specifications:

Power Rating: 400W
Voltage: 400V
Control Type: Closed-loop
Torque Rating: High torque capability for demanding applications
Dimensions: Compact footprint for flexible installation

Invest in the Panasonic MINAS A5 MDME044S1C for cutting-edge performance and reliability in your servo motor needs. Whether for high-precision tasks or robust industrial environments, this servo motor is engineered to exceed expectations and deliver superior results.

Panasonic MINAS A5 Family MDME044S1C 400V 400W Servo Motor

Spec Detail

Item	Specifications
Part Number	MDME044S1C
Details	Middle inertia, Connector type, IP67
Family Name	MINAS A5
Series	MDME Series
Type	Middle inertia
Enclosure	IP67
About Enclosure	Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
Environmental Conditions	For more details, please refer to the instruction manual.
Flange sq. dimension	100 mm sq.
Flange sq. dimension (Unit:mm)	100
Motor lead-out configuration	Connector
Motor encoder connector	Connector
Power supply capacity (kVA)	0.9
Voltage specifications	400 V
Rated output	400 W
Rated current (A (rms))	1.2
Holding brake	without
Mass (kg)	3.1
Oil seal	with
Shaft	Round
Rated torque (N ⋅ m)	1.91
Momentary Max. peak torque (N ⋅ m)	5.73
Max. current (A (o-p))	4.9
Regenerative brake frequency (times/min)	Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0PM20048
About regenerative brake frequency	Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)	2000
Rated rotational Max. speed (r/min)	3000
Moment of inertia of rotor ( x10^-4 kg ⋅ m²)	1.61
Recommended moment of inertia ratio of the load and the rotor	10 times or less
About recommended moment of inertia ratio of the load and the rotor	Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications	17-bit Absolute/Incremental system
Notice	When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution	131072

Permissible load

Item	Specifications
During assembly: Radial load P-direction (N)	980
During assembly: Thrust load A-direction (N)	588
During assembly: Thrust load B-direction (N)	686
During operation: Radial load P-direction (N)	490
During operation: Thrust load A, B-direction (N)	196
About permissible load	For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".
