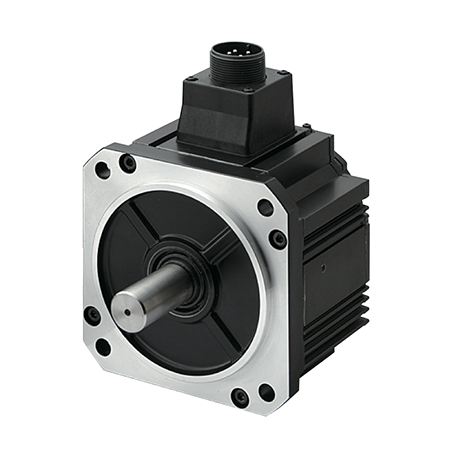

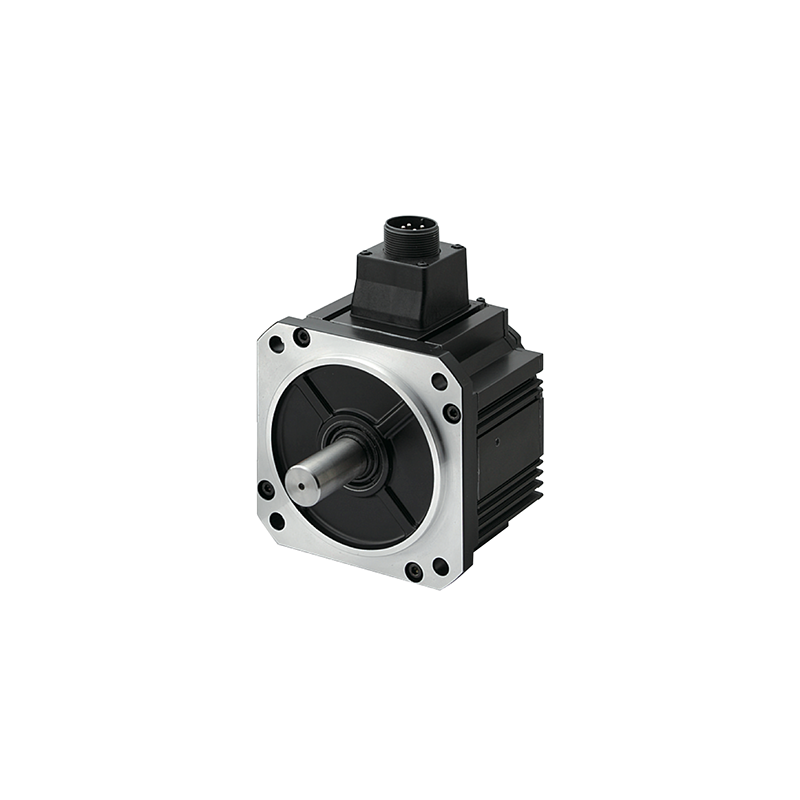

Panasonic MINAS A5 MDME102GCGM 200V 1000W Servo Motor
$0.00
Tax included
Product DescriptionThe Panasonic MINAS A5 MDME102GCGM 200V 1000W Servo Motor represents a pinnacle of precision and efficiency in servo motor technology, tailored for advanced industrial automation applications. Designed to deliver high-performance motion control, this motor is ideal for tasks requiring exceptional accuracy and reliability.Technical Specifications:Model: MINAS A5 MDME102GCGMVoltage Rating: 200VPower Output: 1000WType: AC Servo MotorEncoder Resolution: 20-bitMax Speed: 3000 RPMTorque Rating: 3.0 NmFeedback Type: Absolute EncoderMotor Dimensions: 140 mm (diameter) x 250 mm (length)Weight: 4.2 kgProtection Class: IP65Key Features:High Precision: Equipped with a 20-bit absolute encoder for precise feedback and control, ensuring optimal performance in high-accuracy applications
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
The Panasonic MINAS A5 MDME102GCGM 200V 1000W Servo Motor represents a pinnacle of precision and efficiency in servo motor technology, tailored for advanced industrial automation applications. Designed to deliver high-performance motion control, this motor is ideal for tasks requiring exceptional accuracy and reliability.
Technical Specifications:
- Model: MINAS A5 MDME102GCGM
- Voltage Rating: 200V
- Power Output: 1000W
- Type: AC Servo Motor
- Encoder Resolution: 20-bit
- Max Speed: 3000 RPM
- Torque Rating: 3.0 Nm
- Feedback Type: Absolute Encoder
- Motor Dimensions: 140 mm (diameter) x 250 mm (length)
- Weight: 4.2 kg
- Protection Class: IP65
Key Features:
- High Precision: Equipped with a 20-bit absolute encoder for precise feedback and control, ensuring optimal performance in high-accuracy applications.
- Robust Performance: Delivers a consistent 1000W power output with a maximum speed of 3000 RPM, suitable for demanding tasks.
- Enhanced Durability: Features an IP65 protection rating, providing superior resistance to dust and water ingress, making it ideal for harsh industrial environments.
- Versatile Compatibility: Compatible with a wide range of Panasonic drive systems and controllers, enabling seamless integration into existing automation setups.
- Energy Efficiency: Engineered to maximize energy efficiency, reducing operational costs and enhancing overall system performance.
Applications:
- Industrial robots
- CNC machines
- Packaging machinery
- Conveyor systems
- Printing presses
The Panasonic MINAS A5 MDME102GCGM Servo Motor is designed to meet the rigorous demands of modern industrial automation, offering a blend of precision, durability, and efficiency. Whether for high-speed applications or environments requiring robust protection, this motor ensures reliable and exceptional performance.
Panasonic MINAS A5 Family MDME102GCGM 200V 1000W Servo Motor
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MDME102GCGM |
| Details | Middle inertia, Connector type, IP65 |
| Family Name | MINAS A5 |
| Series | MDME Series |
| Type | Middle inertia |
| Special Order Product | Special Order Product |
| Cautions for Special ordering product | Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan. |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 130 mm sq. |
| Flange sq. dimension (Unit:mm) | 130 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 1.8 |
| Voltage specifications | 200 V |
| Rated output | 1000 W |
| Rated current (A (rms)) | 5.7 |
| Holding brake | without |
| Mass (kg) | 5.2 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 4.77 |
| Momentary Max. peak torque (N ⋅ m) | 14.3 |
| Max. current (A (o-p)) | 24 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4284 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 2000 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 4.60 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 980 |
| During assembly: Thrust load A-direction (N) | 588 |
| During assembly: Thrust load B-direction (N) | 686 |
| During operation: Radial load P-direction (N) | 490 |
| During operation: Thrust load A, B-direction (N) | 196 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MDME102GCGM
Specific References
- UPC
- MDME102GCGM
- MPN
- MDME102GCGM
