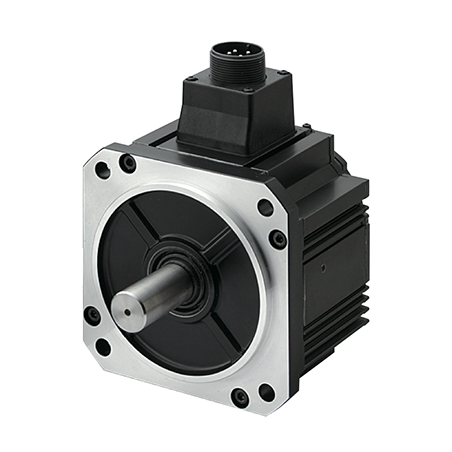

Panasonic MINAS A5 MDME202GCG Servo Motor 200V 2000W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MDME202GCG Servo Motor 200V 2000WThe Panasonic MINAS A5 MDME202GCG Servo Motor is engineered to deliver high precision and reliability in demanding industrial applications. With a rated voltage of 200V and a robust power output of 2000W, this servo motor is ideal for high-performance automation and motion control systems.Key Features:High Power and Efficiency: The 2000W power rating ensures efficient operation and ample power for demanding tasks, reducing energy consumption and operational costs.Precision Control: Advanced control algorithms and high-resolution feedback systems provide exceptional accuracy and responsiveness, making it suitable for applications requiring fine motion control.Durable Construction: Designed for reliability, the MDME202GCG
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MDME202GCG Servo Motor 200V 2000W
The Panasonic MINAS A5 MDME202GCG Servo Motor is engineered to deliver high precision and reliability in demanding industrial applications. With a rated voltage of 200V and a robust power output of 2000W, this servo motor is ideal for high-performance automation and motion control systems.
Key Features:
- High Power and Efficiency: The 2000W power rating ensures efficient operation and ample power for demanding tasks, reducing energy consumption and operational costs.
- Precision Control: Advanced control algorithms and high-resolution feedback systems provide exceptional accuracy and responsiveness, making it suitable for applications requiring fine motion control.
- Durable Construction: Designed for reliability, the MDME202GCG features a rugged build to withstand harsh operating environments, ensuring longevity and minimal maintenance.
- Compact Design: The motor’s compact and lightweight design allows for easy integration into various systems, saving space and facilitating installation.
- Versatile Compatibility: Compatible with a range of Panasonic MINAS A5 servo drives, offering flexibility in system design and configuration.
Applications: The Panasonic MINAS A5 MDME202GCG Servo Motor is well-suited for use in robotics, CNC machinery, packaging equipment, and other high-precision industrial applications where performance and durability are critical.
Specifications:
- Rated Voltage: 200V
- Power Output: 2000W
- Motor Type: Brushless DC Servo Motor
- Feedback Type: High-resolution encoder
- Control Type: Digital Servo Control
Enhance your automation systems with the Panasonic MINAS A5 MDME202GCG Servo Motor, delivering exceptional performance and reliability in every operation.
Panasonic MINAS A5 Family MDME202GCG Servo Motor 200V 2000W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MDME202GCG |
| Details | Middle inertia, Connector type, IP65 |
| Family Name | MINAS A5 |
| Series | MDME Series |
| Type | Middle inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 130 mm sq. |
| Flange sq. dimension (Unit:mm) | 130 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 3.3 |
| Voltage specifications | 200 V |
| Rated output | 2000 W |
| Rated current (A (rms)) | 11.5 |
| Holding brake | without |
| Mass (kg) | 8.0 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 9.55 |
| Momentary Max. peak torque (N ⋅ m) | 28.6 |
| Max. current (A (o-p)) | 49 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 2000 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 8.72 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 980 |
| During assembly: Thrust load A-direction (N) | 588 |
| During assembly: Thrust load B-direction (N) | 686 |
| During operation: Radial load P-direction (N) | 490 |
| During operation: Thrust load A, B-direction (N) | 196 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
