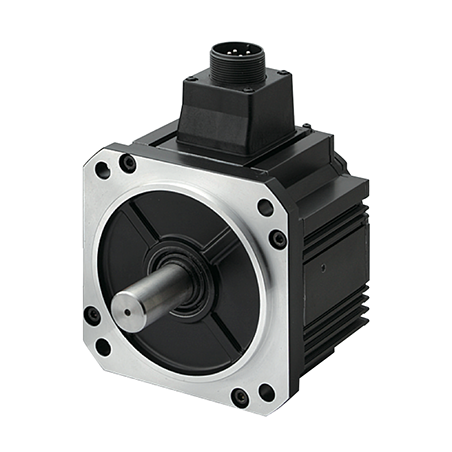

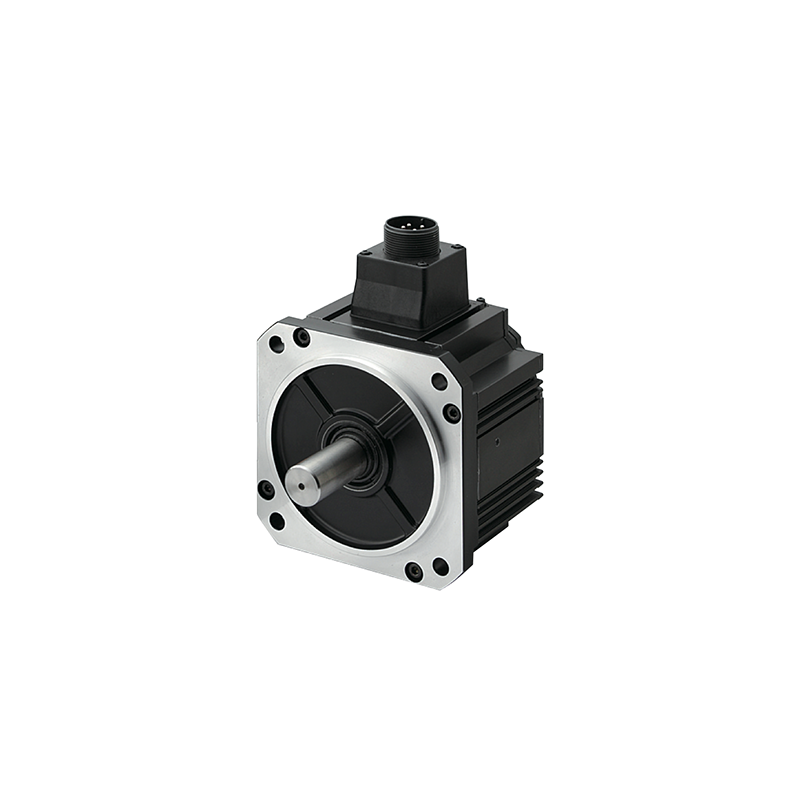

Panasonic MINAS A5 MDME302GCD Servo Motor 200V 3000W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MDME302GCD Servo Motor 200V 3000WThe Panasonic MINAS A5 MDME302GCD Servo Motor is a high-performance solution engineered to deliver precision and reliability for demanding industrial applications. Designed for 200V operation with a robust 3000W output, this servo motor integrates cutting-edge technology to achieve superior control and efficiency.Key Features:High Power and Efficiency: With a power rating of 3000W and operating voltage of 200V, the MDME302GCD offers exceptional torque and speed performance, ideal for high-load and high-speed applications.Advanced Control Technology: Equipped with Panasonic’s state-of-the-art control algorithms, this servo motor ensures precise positioning and smooth motion, enhancing the overall system performance and a
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MDME302GCD Servo Motor 200V 3000W
The Panasonic MINAS A5 MDME302GCD Servo Motor is a high-performance solution engineered to deliver precision and reliability for demanding industrial applications. Designed for 200V operation with a robust 3000W output, this servo motor integrates cutting-edge technology to achieve superior control and efficiency.
Key Features:
High Power and Efficiency: With a power rating of 3000W and operating voltage of 200V, the MDME302GCD offers exceptional torque and speed performance, ideal for high-load and high-speed applications.
Advanced Control Technology: Equipped with Panasonic’s state-of-the-art control algorithms, this servo motor ensures precise positioning and smooth motion, enhancing the overall system performance and accuracy.
Durable Construction: Built with high-quality materials and advanced manufacturing techniques, the MDME302GCD is designed to withstand harsh environments and demanding operational conditions, ensuring long-term reliability and minimal maintenance.
Enhanced Thermal Management: The motor features an efficient cooling system to maintain optimal operating temperatures, even under continuous heavy loads, preventing overheating and extending the motor's lifespan.
Compatibility and Integration: Ideal for integration with Panasonic’s MINAS A5 series servo drives, the MDME302GCD seamlessly connects with other components, providing a comprehensive solution for complex automation tasks.
Applications:
The Panasonic MINAS A5 MDME302GCD is suitable for a wide range of industrial applications, including CNC machines, robotics, packaging equipment, and other precision-driven machinery. Its high power and accuracy make it an excellent choice for both new installations and system upgrades.
Specifications:
- Model: MINAS A5 MDME302GCD
- Voltage: 200V
- Power Output: 3000W
- Control Type: Advanced digital control
- Construction: High-strength materials with enhanced cooling
- Application Suitability: CNC, robotics, packaging, automation
Panasonic MINAS A5 Family MDME302GCD Servo Motor 200V 3000W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MDME302GCD |
| Details | Middle inertia, Connector type, IP65 |
| Family Name | MINAS A5 |
| Series | MDME Series |
| Type | Middle inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 130 mm sq. |
| Flange sq. dimension (Unit:mm) | 130 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 4.5 |
| Voltage specifications | 200 V |
| Rated output | 3000 W |
| Rated current (A (rms)) | 17.4 |
| Holding brake | with |
| Mass (kg) | 12.6 |
| Oil seal | with |
| Shaft | Round |
| Rated torque (N ⋅ m) | 14.3 |
| Momentary Max. peak torque (N ⋅ m) | 43.0 |
| Max. current (A (o-p)) | 74 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 2000 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 14.2 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 16.2 or more |
| Engaging time (ms) | 110 or less |
| Releasing time (ms) | 50 or less |
| Exciting current (DC) (A) | 0.90 |
| Releasing voltage (DC) (V) | 2 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 980 |
| During assembly: Thrust load A-direction (N) | 588 |
| During assembly: Thrust load B-direction (N) | 686 |
| During operation: Radial load P-direction (N) | 784 |
| During operation: Thrust load A, B-direction (N) | 343 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MDME302GCD
Specific References
- UPC
- MDME302GCD
- MPN
- MDME302GCD
