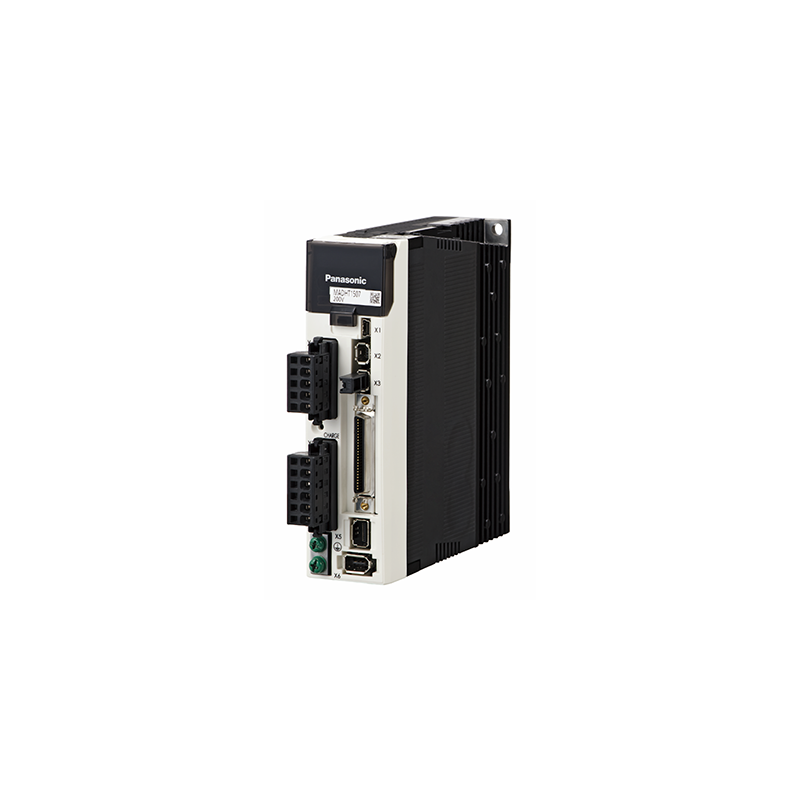

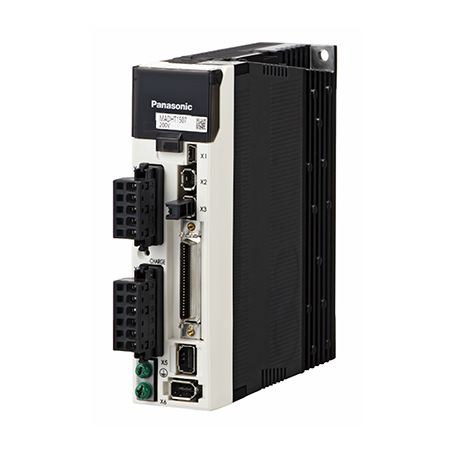

Panasonic MINAS A5 MADHT1105 Servo Driver

Name: Panasonic MINAS A5 MADHT1105 Servo Driver
Brand: Panasonic
SKU: MADHT1105
Availability: OutOfStock

$0.00

Tax included

Product DescriptionPanasonic MINAS A5 MADHT1105 Servo DriverThe Panasonic MINAS A5 MADHT1105 Servo Driver is a cutting-edge solution designed for high-precision motion control in demanding industrial applications. Engineered to deliver superior performance, the MINAS A5 MADHT1105 integrates advanced features and robust specifications to ensure optimal operation and reliability.Key Features:High-Power Drive: Capable of handling substantial loads with its high-torque output, the MADHT1105 is ideal for applications requiring significant mechanical power and precision.Advanced Control Algorithms: Utilizes sophisticated control algorithms to enhance dynamic response and stability, ensuring smooth and accurate motion control.Compact Design: Designed with a compact footprint, the MINAS A5 MADHT11

Quantity

Out-of-Stock

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Product Description

Panasonic MINAS A5 MADHT1105 Servo Driver

The Panasonic MINAS A5 MADHT1105 Servo Driver is a cutting-edge solution designed for high-precision motion control in demanding industrial applications. Engineered to deliver superior performance, the MINAS A5 MADHT1105 integrates advanced features and robust specifications to ensure optimal operation and reliability.

Key Features:

High-Power Drive: Capable of handling substantial loads with its high-torque output, the MADHT1105 is ideal for applications requiring significant mechanical power and precision.
Advanced Control Algorithms: Utilizes sophisticated control algorithms to enhance dynamic response and stability, ensuring smooth and accurate motion control.
Compact Design: Designed with a compact footprint, the MINAS A5 MADHT1105 provides efficient space utilization without compromising performance.
Robust Communication Interfaces: Equipped with multiple communication interfaces, including EtherCAT and RS-232, for seamless integration into diverse automation systems.
Enhanced Protection: Features comprehensive protection mechanisms against overcurrent, overvoltage, and overheating, ensuring long-term durability and operational safety.
User-Friendly Interface: Includes an intuitive setup and diagnostic interface, simplifying configuration and maintenance tasks.

Specifications:

Model: MINAS A5 MADHT1105
Voltage Rating: [Insert Voltage Rating]
Current Rating: [Insert Current Rating]
Communication Protocols: EtherCAT, RS-232
Protection Features: Overcurrent, Overvoltage, Overheating
Dimensions: [Insert Dimensions]
Weight: [Insert Weight]

The Panasonic MINAS A5 MADHT1105 Servo Driver is designed to meet the rigorous demands of modern industrial automation, providing reliable and precise motion control for a wide range of applications.

Panasonic MINAS A5 Family MADHT1105 Servo Driver

Spec Detail

Item	Specifications
Part Number	MADHT1105
Details	A5 series Speed, Position, Torque, Full-closed type with the safety function
Family Name	MINAS A5
Series	A5 series
Type	Speed, Position, Torque, Full-closed type
Frame	A-Frame
Frequency response	2.3 kHz
Control method	Position control, Velocity control, Torque control, and Full-closed control
Safety Function	with
Power device Max. current rating	10A
Current detector current rating	5A
Supply voltage	Single phase 100 V
I/F Classification of type	Analog/Pulse
Dimensions (W) (Unit: mm)	40
Dimensions (H) (Unit: mm)	150
Dimensions (D) (Unit: mm)	130
Mass (kg)	0.8
Environment	For more details, please refer to the instruction manual.

Basic Specifications

Item	Specifications
Input power: Main circuit	Single phase 100 to 120V +10% -15% 50/60 Hz
Input power: Control circuit	Single phase 100 to 120V +10% -15% 50/60 Hz
Encoder feedback	17-bit (131072 resolution) absolute encoder, 7-wire serial 20-bit (1048576 resolution) incremental encoder, 5-wire serial
External scale feedback	A/B phase, homing signal differential input. Serial communication is also supported.
Parallel I/O connector: Control signal Input	General purpose 10 inputs The function of general-purpose input is selected by parameters.
Parallel I/O connector: Control signal Output	General purpose 6 output The function of general-purpose output is selected by parameters.
Parallel I/O connector: Analog signal Input	3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs)
Parallel I/O connector: Analog signal Output	2 outputs (Analog monitor: 2 output)
Parallel I/O connector: Pulse signal Input	2 inputs (Photo-coupler input, Line receiver input)
Parallel I/O connector: Pulse signal Output	4 outputs (Line driver: 3 output, open collector: 1 output)
Communication function	USB, RS232, RS485
Communication function: USB	USB interface to connect to computers for parameter setting or status monitoring.
Communication function: RS232	1:1 communication
Communication function: RS485	1: n communication (max 31)
Regeneration	No built-in regenerative resistor (external resistor only)
Control mode	Switching among the following 7 mode is enabled, (1) Position control, (2) Speed control, (3) Torque control, (4) Position/speed control, (5) Position/Torque control, (6) Speed/Torque control, (7) Full-closed control
