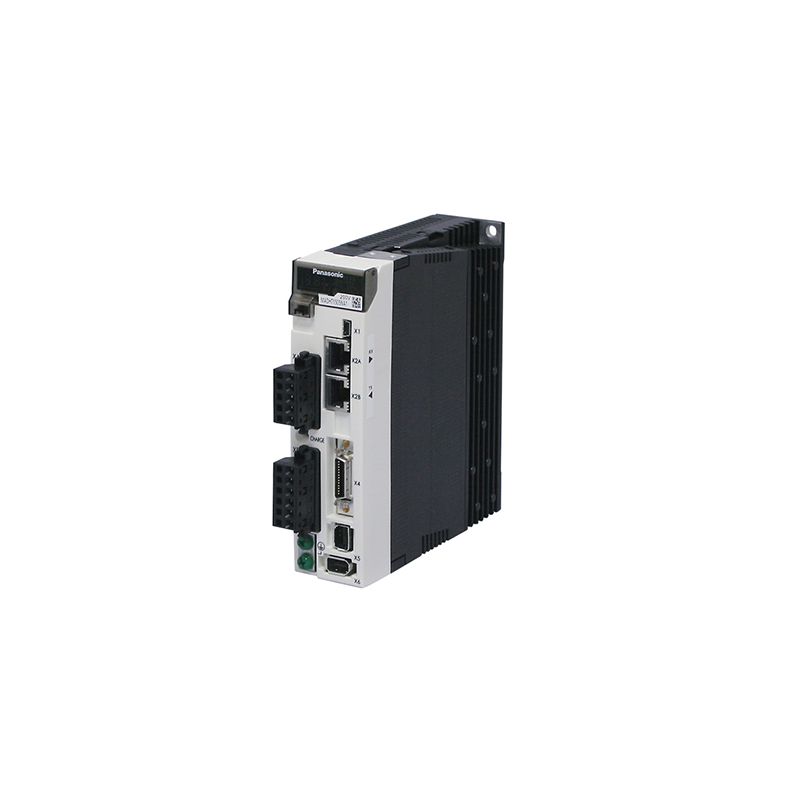

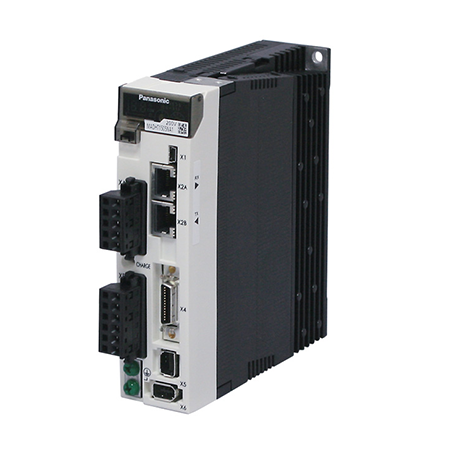

Panasonic MINAS A5 MCDHT3520ND1 Servo Driver

$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MCDHT3520ND1 Servo DriverThe Panasonic MINAS A5 MCDHT3520ND1 Servo Driver represents the pinnacle of precision and efficiency in motion control technology. Designed for high-performance applications, this servo driver offers exceptional speed, accuracy, and reliability, making it ideal for demanding industrial environments.Key Features:Advanced Control Technology: Equipped with Panasonic's state-of-the-art control algorithms, the MCDHT3520ND1 ensures precise and smooth motion control, enhancing the performance of your machinery.High-Speed Operation: With a maximum pulse input frequency of 2 MHz, this servo driver supports rapid and accurate position adjustments, crucial for high-speed applications.Robust Build: Engineered for durability, the MCDHT3520N
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Description

Panasonic MINAS A5 MCDHT3520ND1 Servo Driver

The Panasonic MINAS A5 MCDHT3520ND1 Servo Driver represents the pinnacle of precision and efficiency in motion control technology. Designed for high-performance applications, this servo driver offers exceptional speed, accuracy, and reliability, making it ideal for demanding industrial environments.

Key Features:

  • Advanced Control Technology: Equipped with Panasonic's state-of-the-art control algorithms, the MCDHT3520ND1 ensures precise and smooth motion control, enhancing the performance of your machinery.
  • High-Speed Operation: With a maximum pulse input frequency of 2 MHz, this servo driver supports rapid and accurate position adjustments, crucial for high-speed applications.
  • Robust Build: Engineered for durability, the MCDHT3520ND1 features a rugged design that withstands harsh industrial conditions, ensuring long-term reliability and minimal maintenance.
  • Versatile Compatibility: Compatible with a wide range of servo motors, this driver offers flexibility and adaptability, making it suitable for various automation and robotics applications.
  • User-Friendly Interface: The intuitive setup and diagnostic tools simplify installation and maintenance, allowing for quick adjustments and optimal performance.
  • Energy Efficiency: Designed to minimize power consumption, this servo driver contributes to reduced operational costs and supports environmentally friendly practices.

Applications:

  • Industrial Automation: Ideal for use in manufacturing lines, assembly machines, and process automation where precision and reliability are paramount.
  • Robotics: Perfect for robotic arms and other robotic systems requiring high-speed and accurate motion control.
  • Packaging Machinery: Enhances the efficiency and accuracy of packaging systems, improving throughput and product quality.

Technical Specifications:

  • Input Voltage: 200-230V AC
  • Current Rating: 20A
  • Control Mode: Position, Speed, and Torque
  • Communication Protocols: RS232, RS485
  • Protection Class: IP20

For more information or to request a quote, please contact our sales team.

Panasonic MINAS A5 Family MCDHT3520ND1 Servo Driver

Spec Detail

ItemSpecifications
Part NumberMCDHT3520ND1
DetailsA5ⅡN series
RTEX, Ultra high-speed Network
without the safety function
Family NameMINAS A5
SeriesA5ⅡN series
TypeRTEX, Ultra high-speed Network
FrameC-Frame
Frequency response2.3 kHz
Control methodPosition control, Velocity control, Torque control, and Full-closed control
Safety Functionwithout
Power device Max. current rating30A
Current detector current rating20A
Supply voltageSingle/3-phase 200 V
I/F Classification of typeRTEX
Dimensions (W) (Unit: mm)65
Dimensions (H) (Unit: mm)150
Dimensions (D) (Unit: mm)172
Mass (kg)1.6
EnvironmentFor more details, please refer to the instruction manual.


Basic Specifications

ItemSpecifications
Input power: Main circuitSingle/3-phase 200 to 240V +10% -15% 50/60 Hz
Input power: Control circuitSingle phase 200 to 240V +10% -15% 50/60 Hz
Encoder feedback17-bit (131072 resolution) absolute encoder, 7-wire serial
20-bit (1048576 resolution) incremental encoder, 5-wire serial
External scale feedbackA/B phase, homing signal differential input. Serial communication is also supported.
Parallel I/O connector:
Control signal Input		Each 8 input can be assigned by the parameter.
Parallel I/O connector:
Control signal Output		Each 3 input can be assigned by the parameter.
Parallel I/O connector:
Analog signal Output		2 outputs (Analog monitor: 1, 2 output)
Parallel I/O connector:
Pulse signal Output		Line driver output for Encoder pulses or external scale pulses (A/B phase signal).
Communication functionRTEX, USB
Communication function: USBUSB interface to connect to computers for parameter setting or status monitoring.
Communication function: RTEXCommunication for transmission of a real-time operation command, the parameter setting, or the status monitoring.
RegenerationBuilt-in regenerative resistor (external resistor is also enabled.)
Control mode1. Semi-closed control
Position control: Profile position control [PP], Cyclic position control [CP]
Velocity control: Cyclic velocity control [CV]
Torque control: Cyclic torque control [CT]

2.Full-closed control
Position control: Profile position control [PP], Cyclic position control [CP]
* Switch two modes (above-mentioned 1 and 2) according to the parameter.
* Switch PP/CP/CV/CT mode according to the RTEX communication command.
MCDHT3520ND1

Specific References

UPC
MCDHT3520ND1
MPN
MCDHT3520ND1
