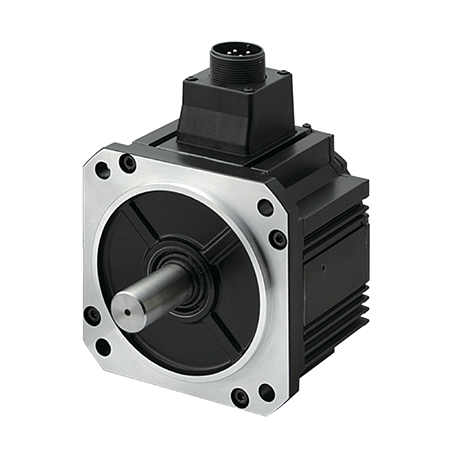

Panasonic MINAS A5 MFME252S1D Servo Motor 200V 2500W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MFME252S1D Servo Motor (200V 2500W)The Panasonic MINAS A5 MFME252S1D Servo Motor is a high-performance, precision-engineered solution designed for demanding industrial applications. This 200V, 2500W servo motor combines robust construction with advanced technology to deliver unparalleled performance, reliability, and efficiency.Key Features:High Torque and Speed: The MINAS A5 MFME252S1D offers exceptional torque output and high-speed capabilities, making it ideal for applications requiring precise motion control and fast response times.Advanced Control Technology: Equipped with Panasonic's cutting-edge control algorithms, this servo motor ensures smooth and accurate motion with minimal oscillation. Its advanced feedback system provides real-time perfor
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MFME252S1D Servo Motor (200V 2500W)
The Panasonic MINAS A5 MFME252S1D Servo Motor is a high-performance, precision-engineered solution designed for demanding industrial applications. This 200V, 2500W servo motor combines robust construction with advanced technology to deliver unparalleled performance, reliability, and efficiency.
Key Features:
High Torque and Speed: The MINAS A5 MFME252S1D offers exceptional torque output and high-speed capabilities, making it ideal for applications requiring precise motion control and fast response times.
Advanced Control Technology: Equipped with Panasonic's cutting-edge control algorithms, this servo motor ensures smooth and accurate motion with minimal oscillation. Its advanced feedback system provides real-time performance adjustments to enhance operational efficiency.
Durable Construction: Designed for longevity, the motor features a rugged housing that withstands harsh industrial environments. Its high-quality bearings and seals ensure reliable operation even under heavy loads and continuous use.
Energy Efficiency: The motor’s high power density and optimized control contribute to lower energy consumption and reduced operational costs, aligning with modern demands for sustainability and efficiency.
Versatile Compatibility: The MINAS A5 series is compatible with a wide range of Panasonic servo drives and controllers, allowing for seamless integration into existing systems and easy upgrades.
Enhanced Safety: Incorporating safety features such as over-current protection and thermal overload detection, this servo motor ensures safe operation and minimizes the risk of equipment damage.
Applications:
- Automated manufacturing systems
- Robotics and material handling
- CNC machinery
- Printing and packaging machines
- High-precision assembly lines
Specifications:
- Voltage: 200V
- Power: 2500W
- Maximum Speed: [Insert max speed if available]
- Torque Range: [Insert torque range if available]
- Dimensions: [Insert dimensions if available]
- Weight: [Insert weight if available]
Benefits:
- Maximizes operational efficiency with high torque and precision control.
- Reduces downtime and maintenance costs with durable and reliable construction.
- Enhances system performance and integration flexibility with advanced control technology.
The Panasonic MINAS A5 MFME252S1D Servo Motor represents a significant advancement in servo motor technology, offering a blend of high performance, efficiency, and reliability that meets the rigorous demands of modern industrial applications.
Panasonic MINAS A5 Family MFME252S1D Servo Motor 200V 2500W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MFME252S1D |
| Details | Middle inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MFME Series |
| Type | Middle inertia |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 220 mm sq. |
| Flange sq. dimension (Unit:mm) | 220 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 3.8 |
| Voltage specifications | 200 V |
| Rated output | 2500 W |
| Rated current (A (rms)) | 13.4 |
| Holding brake | with |
| Mass (kg) | 17.2 |
| Oil seal | with |
| Shaft | Round |
| Rated torque (N ⋅ m) | 11.9 |
| Momentary Max. peak torque (N ⋅ m) | 30.4 |
| Max. current (A (o-p)) | 57 |
| Regenerative brake frequency (times/min) | Without option :75 With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 2000 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 45.2 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 17-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 131072 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 21.6 or more |
| Engaging time (ms) | 150 or less |
| Releasing time (ms) | 100 or less |
| Exciting current (DC) (A) | 0.75 |
| Releasing voltage (DC) (V) | 2 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 1862 |
| During assembly: Thrust load A-direction (N) | 686 |
| During assembly: Thrust load B-direction (N) | 686 |
| During operation: Radial load P-direction (N) | 784 |
| During operation: Thrust load A, B-direction (N) | 294 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
