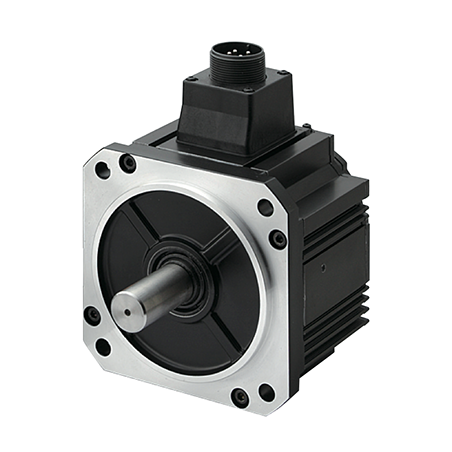

Panasonic MINAS A5 MGME094G1D Servo Motor 400V 900W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MGME094G1D Servo Motor 400V 900WElevate your automation and motion control systems with the Panasonic MINAS A5 MGME094G1D Servo Motor, a high-performance solution engineered for precision and reliability. This 400V, 900W servo motor is a key component in achieving superior control over your mechanical systems, delivering outstanding performance across a range of industrial applications.Key Features:High Efficiency and Power: With a power rating of 900W and operating voltage of 400V, the MINAS A5 MGME094G1D ensures efficient energy usage while providing robust torque and speed capabilities for demanding applications.Precision Control: Featuring advanced feedback mechanisms and sophisticated control algorithms, this servo motor offers exceptional accurac
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MGME094G1D Servo Motor 400V 900W
Elevate your automation and motion control systems with the Panasonic MINAS A5 MGME094G1D Servo Motor, a high-performance solution engineered for precision and reliability. This 400V, 900W servo motor is a key component in achieving superior control over your mechanical systems, delivering outstanding performance across a range of industrial applications.
Key Features:
High Efficiency and Power: With a power rating of 900W and operating voltage of 400V, the MINAS A5 MGME094G1D ensures efficient energy usage while providing robust torque and speed capabilities for demanding applications.
Precision Control: Featuring advanced feedback mechanisms and sophisticated control algorithms, this servo motor offers exceptional accuracy in position, velocity, and torque control, ensuring optimal performance in automated processes.
Enhanced Durability: The MINAS A5 series is designed with durable components and superior heat dissipation, making it highly reliable even in challenging environments. Its rugged construction ensures long-term operational stability.
Compact Design: Despite its high power output, the servo motor boasts a compact and lightweight design, allowing for easy integration into a variety of systems and minimizing space requirements.
Versatile Application: Ideal for use in robotics, CNC machinery, and other high-precision automation systems, the MGME094G1D is adaptable to various industrial settings, enhancing productivity and operational efficiency.
User-Friendly Interface: Equipped with intuitive setup and adjustment features, the Panasonic MINAS A5 servo motor simplifies installation and calibration, reducing setup time and operational complexity.
Technical Specifications:
- Model: MINAS A5 MGME094G1D
- Power Rating: 900W
- Voltage: 400V
- Maximum Speed: [Specify maximum speed if available]
- Torque: [Specify maximum torque if available]
- Dimensions: [Provide dimensions]
- Weight: [Provide weight]
- Connector Type: [Specify connector type]
- Protection Class: [Specify protection class, e.g., IP65]
Applications:
- Robotics
- CNC Machining
- Conveyor Systems
- Automated Assembly Lines
- Precision Test Equipment
Why Choose Panasonic MINAS A5?
Panasonic's MINAS A5 series represents cutting-edge technology and engineering excellence in servo motor design. With a commitment to quality and innovation, Panasonic delivers products that meet the highest industry standards, ensuring your automation solutions are reliable, efficient, and scalable.
For more information or to request a quote, contact our sales team today.
Panasonic MINAS A5 Family MGME094G1D Servo Motor 400V 900W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MGME094G1D |
| Details | Middle inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MGME Series |
| Type | Middle inertia |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 130 mm sq. |
| Flange sq. dimension (Unit:mm) | 130 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 1.8 |
| Voltage specifications | 400 V |
| Rated output | 900 W |
| Rated current (A (rms)) | 3.8 |
| Holding brake | with |
| Mass (kg) | 8.2 |
| Oil seal | with |
| Shaft | Round |
| Rated torque (N ⋅ m) | 8.59 |
| Momentary Max. peak torque (N ⋅ m) | 19.3 |
| Max. current (A (o-p)) | 12 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0PM20048 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 1000 |
| Rated rotational Max. speed (r/min) | 2000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 7.99 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 13.7 or more |
| Engaging time (ms) | 100 or less |
| Releasing time (ms) | 50 or less |
| Exciting current (DC) (A) | 0.79 ± 10% |
| Releasing voltage (DC) (V) | 2 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 980 |
| During assembly: Thrust load A-direction (N) | 588 |
| During assembly: Thrust load B-direction (N) | 686 |
| During operation: Radial load P-direction (N) | 686 |
| During operation: Thrust load A, B-direction (N) | 196 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MGME094G1D
Specific References
- UPC
- MGME094G1D
- MPN
- MGME094G1D
