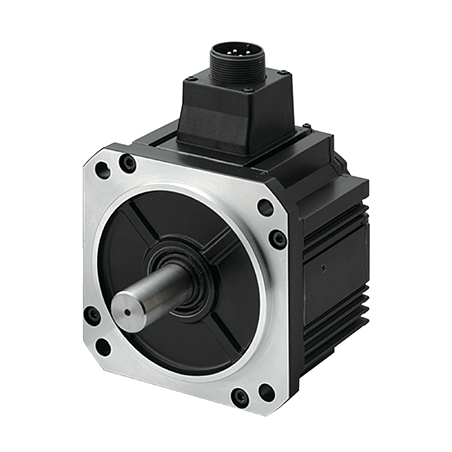

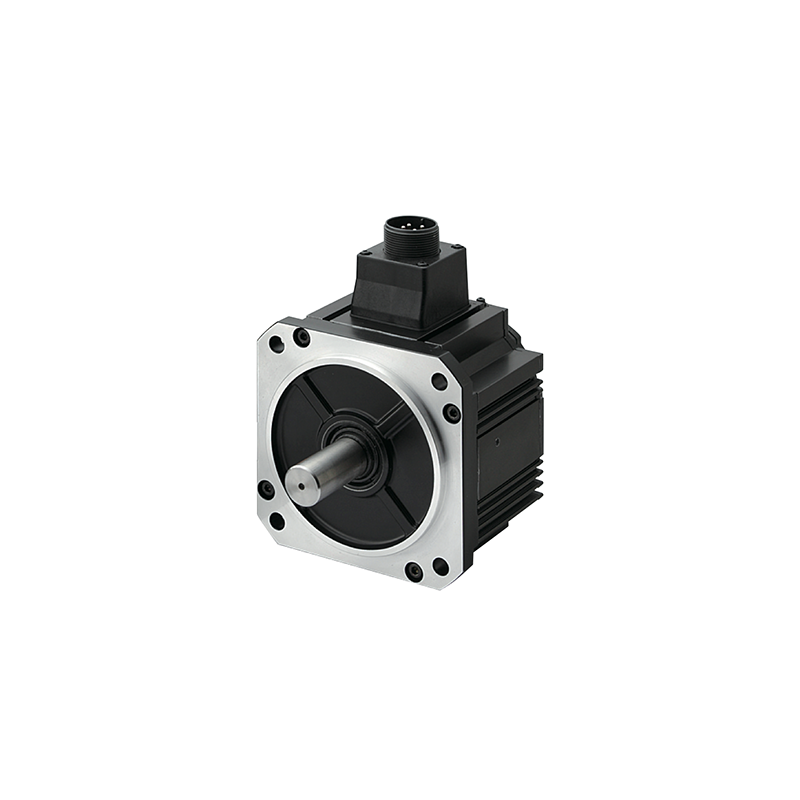

Panasonic MINAS A5 MGME302G1C Servo Motor 200V 3000W

$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MGME302G1C Servo Motor – 200V, 3000WThe Panasonic MINAS A5 MGME302G1C Servo Motor is engineered for precision and reliability in high-performance applications. Designed to deliver optimal performance in demanding industrial environments, this servo motor combines cutting-edge technology with robust engineering.Key Features:Power and Voltage: Operating at 200V with a substantial power rating of 3000W, the MGME302G1C ensures high torque and efficient operation across various applications.Advanced Control: This servo motor integrates seamlessly with Panasonic's advanced MINAS A5 series controllers, enabling precise control and smooth motion in automation systems.High Efficiency: The motor's advanced design minimizes energy consumption while maximizing out
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Description

Panasonic MINAS A5 MGME302G1C Servo Motor – 200V, 3000W

The Panasonic MINAS A5 MGME302G1C Servo Motor is engineered for precision and reliability in high-performance applications. Designed to deliver optimal performance in demanding industrial environments, this servo motor combines cutting-edge technology with robust engineering.

Key Features:

  • Power and Voltage: Operating at 200V with a substantial power rating of 3000W, the MGME302G1C ensures high torque and efficient operation across various applications.
  • Advanced Control: This servo motor integrates seamlessly with Panasonic's advanced MINAS A5 series controllers, enabling precise control and smooth motion in automation systems.
  • High Efficiency: The motor's advanced design minimizes energy consumption while maximizing output efficiency, making it ideal for energy-conscious applications.
  • Durability and Reliability: Constructed with high-quality materials and superior engineering, the MGME302G1C is built to withstand rigorous industrial conditions and ensure long-term reliability.
  • Compact Design: The motor's compact and lightweight design allows for easy integration into various machine configurations without compromising performance.
  • Enhanced Performance: Equipped with a high-resolution encoder, the MGME302G1C provides exceptional accuracy and responsiveness, essential for applications requiring precise motion control.

Applications:

  • Robotics: Ideal for high-precision tasks in robotic arms and automation systems.
  • CNC Machines: Enhances the performance and accuracy of CNC machinery.
  • Packaging Machinery: Optimizes speed and accuracy in packaging and processing equipment.
  • Textile Machines: Provides reliable operation in textile manufacturing processes.

Technical Specifications:

  • Model: MGME302G1C
  • Voltage: 200V
  • Power Rating: 3000W
  • Motor Type: Servo Motor
  • Encoder Resolution: High-resolution
  • Dimensions: [Insert Dimensions]
  • Weight: [Insert Weight]
  • Protection Rating: [Insert Protection Rating]

The Panasonic MINAS A5 MGME302G1C Servo Motor is a versatile and high-performance solution for demanding automation and motion control applications. With its advanced features and robust construction, it delivers exceptional reliability and precision, making it a valuable addition to any industrial setup.

Panasonic MINAS A5 Family MGME302G1C Servo Motor 200V 3000W

Spec Detail

ItemSpecifications
Part NumberMGME302G1C
DetailsMiddle inertia, Connector type, IP67
Family NameMINAS A5
SeriesMGME Series
TypeMiddle inertia
EnclosureIP67
About EnclosureExcept rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
Environmental ConditionsFor more details, please refer to the instruction manual.
Flange sq. dimension176 mm sq.
Flange sq. dimension (Unit:mm)176
Motor lead-out configurationConnector
Motor encoder connectorConnector
Power supply capacity (kVA)4.5
Voltage specifications200 V
Rated output3000 W
Rated current (A (rms))22.6
Holding brakewithout
Mass (kg)20.0
Oil sealwith
ShaftRound
Rated torque (N ⋅ m)28.7
Momentary Max. peak torque (N ⋅ m)71.7
Max. current (A (o-p))80
Regenerative brake frequency (times/min)Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel
About regenerative brake frequencyPlease refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)1000
Rated rotational Max. speed (r/min)2000
Moment of inertia of rotor ( x10-4 kg ⋅ m²)48.4
Recommended moment of inertia ratio of the load and the rotor10 times or less
About recommended moment of inertia ratio of the load and the rotorPlease refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications20-bit Incremental system
Rotary encoder: Resolution1048576


Permissible load

ItemSpecifications
During assembly: Radial load P-direction (N)2058
During assembly: Thrust load A-direction (N)980
During assembly: Thrust load B-direction (N)1176
During operation: Radial load P-direction (N)1470
During operation: Thrust load A, B-direction (N)490
About permissible loadFor details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".
MGME302G1C

Specific References

UPC
MGME302G1C
MPN
MGME302G1C
