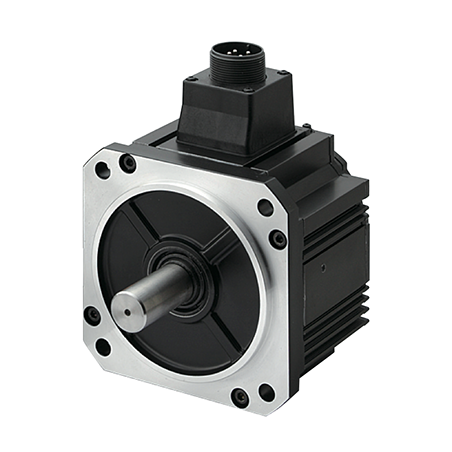

Panasonic MINAS A6 MGMF132L1H6 Servo Motor 200V 1300W
$0.00
Tax included
Panasonic MINAS A6 MGMF132L1H6 Servo Motor 200V 1300WEnhance precision and efficiency in your industrial applications with the Panasonic MINAS A6 MGMF132L1H6 Servo Motor. Engineered for optimal performance, this high-powered 200V servo motor packs 1300W of robust output, delivering unparalleled control and accuracy for demanding motion control systems.Key Features:High-Precision Performance: The MINAS A6 MGMF132L1H6 boasts exceptional accuracy, ensuring precise motion control, positioning, and speed regulation, meeting the stringent demands of various industrial processes.Dynamic Response: With its advanced design, this servo motor offers rapid response times, enabling swift and accurate adjustments, vital for applications requiring quick changes in speed or direction.Durable Construction:
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Panasonic MINAS A6 MGMF132L1H6 Servo Motor 200V 1300W
Enhance precision and efficiency in your industrial applications with the Panasonic MINAS A6 MGMF132L1H6 Servo Motor. Engineered for optimal performance, this high-powered 200V servo motor packs 1300W of robust output, delivering unparalleled control and accuracy for demanding motion control systems.
Key Features:
High-Precision Performance: The MINAS A6 MGMF132L1H6 boasts exceptional accuracy, ensuring precise motion control, positioning, and speed regulation, meeting the stringent demands of various industrial processes.
Dynamic Response: With its advanced design, this servo motor offers rapid response times, enabling swift and accurate adjustments, vital for applications requiring quick changes in speed or direction.
Durable Construction: Crafted with top-grade materials, this motor is built to withstand rugged industrial environments, ensuring longevity and reliability in continuous operations.
Compact Design: Despite its impressive power, the compact form factor of the MINAS A6 MGMF132L1H6 allows for seamless integration into machinery, optimizing space while maintaining superior performance.
Versatile Compatibility: Compatible with a range of automation systems and machinery, this servo motor integrates effortlessly into existing setups, facilitating smoother transitions and upgrades.
Technical Specifications:
- Model: MGMF132L1H6
- Voltage: 200V
- Power: 1300W
- Type: Servo Motor
- Weight: [Specify weight here]
- Dimensions: [Specify dimensions here]
Applications:
The MINAS A6 MGMF132L1H6 finds its applications in various industries, including but not limited to:
- CNC Machinery
- Robotics
- Automated Assembly Lines
- Packaging Equipment
- Printing Machinery
- Industrial Automation Systems
Why Choose the Panasonic MINAS A6 MGMF132L1H6?
Reliability: Benefit from Panasonic's renowned reliability and precision engineering, ensuring consistent performance in critical applications.
Efficiency: Experience enhanced efficiency and productivity, thanks to the motor's seamless integration and high-performance output.
Quality Assurance: Each unit undergoes rigorous testing and quality checks, adhering to industry standards and surpassing expectations.
Elevate your industrial processes with the Panasonic MINAS A6 MGMF132L1H6 Servo Motor, a pinnacle of precision, reliability, and efficiency.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MGMF132L1H6 |
| Details | Middle inertia Low speed/High torque type, Connector type |
| Family Name | MINAS A6 |
| Series | MGMF Series |
| Type | Middle inertia Low speed/High torque type |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 130 mm sq. |
| Flange sq. dimension (Unit:mm) | 130 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Motor connector: JL10, Encoder connector: Large size JL10 |
| About Motor encoder connector | Connector JL10 (Large size): Also applicable to screwed type |
| Power supply capacity (kVA) | 2.6 |
| Voltage specifications | 200 V |
| Rated output | 1300 W |
| Rated current (A (rms)) | 9.3 |
| Holding brake | with |
| Mass (kg) | 7.5 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 8.28 |
| Continuous stall torque (N ⋅ m) | 8.28 |
| Momentary Max. peak torque (N ⋅ m) | 23.3 |
| Max. current (A (o-p)) | 37 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4284 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 1500 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 10.4 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 13.7 or more |
| Engaging time (ms) | 100 or less |
| Releasing time (ms) | 50 or less |
| Exciting current (DC) (A) | 0.79 ± 10 % |
| Releasing voltage (DC) (V) | 2 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 980 |
| During assembly: Thrust load A-direction (N) | 588 |
| During assembly: Thrust load B-direction (N) | 686 |
| During operation: Radial load P-direction (N) | 686 |
| During operation: Thrust load A, B-direction (N) | 196 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MGMF132L1H6
Specific References
- UPC
- MGMF132L1H6
- MPN
- MGMF132L1H6
