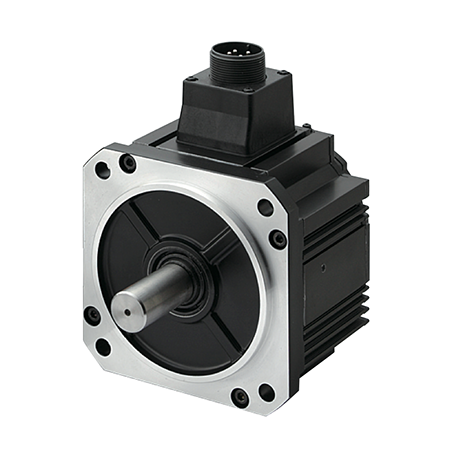

Panasonic MINAS A6 MGMF442L1H8 Servo Motor 200V 4400W
$0.00
Tax included
Panasonic MINAS A6 MGMF442L1H8 Servo Motor 200V 4400WThe Panasonic MINAS A6 MGMF442L1H8 Servo Motor stands as an epitome of cutting-edge engineering in the realm of motion control systems. Crafted to redefine precision and reliability, this servo motor represents a pinnacle of performance in the industry.Key Features:Powerful Performance: With an operational voltage of 200V and an impressive power rating of 4400W, this servo motor guarantees exceptional power delivery and performance efficiency.High Precision Control: Engineered with the latest technology, the MINAS A6 MGMF442L1H8 ensures unparalleled accuracy and precision in motion control, making it ideal for applications demanding exacting standards.Robust Construction: Built with durability in mind, this servo motor boasts a rugged co
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Panasonic MINAS A6 MGMF442L1H8 Servo Motor 200V 4400W
The Panasonic MINAS A6 MGMF442L1H8 Servo Motor stands as an epitome of cutting-edge engineering in the realm of motion control systems. Crafted to redefine precision and reliability, this servo motor represents a pinnacle of performance in the industry.
Key Features:
Powerful Performance: With an operational voltage of 200V and an impressive power rating of 4400W, this servo motor guarantees exceptional power delivery and performance efficiency.
High Precision Control: Engineered with the latest technology, the MINAS A6 MGMF442L1H8 ensures unparalleled accuracy and precision in motion control, making it ideal for applications demanding exacting standards.
Robust Construction: Built with durability in mind, this servo motor boasts a rugged construction that ensures longevity and resilience against harsh operating conditions, guaranteeing sustained performance over its lifespan.
Efficient Cooling System: Equipped with an efficient cooling mechanism, it effectively manages heat dissipation, ensuring optimal performance even during extended operational periods.
Versatile Application: Suitable for a wide spectrum of industrial applications, including robotics, CNC machining, packaging, and automation systems, this servo motor adapts seamlessly to various operational demands.
Intelligent Control Interface: The MINAS A6 MGMF442L1H8 integrates a sophisticated control interface, allowing for seamless integration into existing automation setups while providing ease of operation and configuration.
Technical Specifications:
- Operational Voltage: 200V
- Power Rating: 4400W
- Model Number: MGMF442L1H8
- Application: Industrial Automation, Robotics, CNC Machining
- Cooling System: Efficient Heat Dissipation Mechanism
- Compatibility: Wide range of Panasonic control systems
- Dimensions: [Insert Dimensions]
Why Choose Panasonic MINAS A6 MGMF442L1H8 Servo Motor?
- Reliability: Panasonic, known for its quality, delivers a reliable product that ensures consistent performance in demanding industrial environments.
- Precision: The servo motor's high precision control makes it a preferred choice for applications requiring exacting standards and accuracy.
- Adaptability: Its compatibility with various control systems and versatile application spectrum makes it an adaptable solution for diverse industrial needs.
- Longevity: Built to last, the durable construction guarantees prolonged service life, minimizing downtime and maintenance costs.
SEO-Friendly Keywords:
- Panasonic MINAS A6 Servo Motor
- MGMF442L1H8 Servo Motor
- 200V 4400W Servo Motor
- Industrial Automation Servo Motor
- Precision Control Servo Motor
- High-Power Servo Motor
Enhance your industrial operations with the Panasonic MINAS A6 MGMF442L1H8 Servo Motor, a testament to engineering excellence and reliability, delivering precision, power, and adaptability for your automation needs.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MGMF442L1H8 |
| Details | Middle inertia Low speed/High torque type, Connector type |
| Family Name | MINAS A6 |
| Series | MGMF Series |
| Type | Middle inertia Low speed/High torque type |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 176 mm sq. |
| Flange sq. dimension (Unit:mm) | 176 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Motor connector: JL10, Encoder connector: Large size JL10 |
| About Motor encoder connector | Connector JL10 (Large size): Also applicable to screwed type |
| Power supply capacity (kVA) | 7.0 |
| Voltage specifications | 200 V |
| Rated output | 4400 W |
| Rated current (A (rms)) | 27.2 |
| Holding brake | with |
| Mass (kg) | 19.0 |
| Oil seal | with protective lip |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 28.0 |
| Continuous stall torque (N ⋅ m) | 28.0 |
| Momentary Max. peak torque (N ⋅ m) | 70.0 |
| Max. current (A (o-p)) | 96 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 1500 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 63.0 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 44.1 or more |
| Engaging time (ms) | 150 or less |
| Releasing time (ms) | 30 or less |
| Exciting current (DC) (A) | 1.29 ± 10 % |
| Releasing voltage (DC) (V) | 2 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 1666 |
| During assembly: Thrust load A-direction (N) | 784 |
| During assembly: Thrust load B-direction (N) | 980 |
| During operation: Radial load P-direction (N) | 1470 |
| During operation: Thrust load A, B-direction (N) | 490 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MGMF442L1H8
Specific References
- UPC
- MGMF442L1H8
- MPN
- MGMF442L1H8
