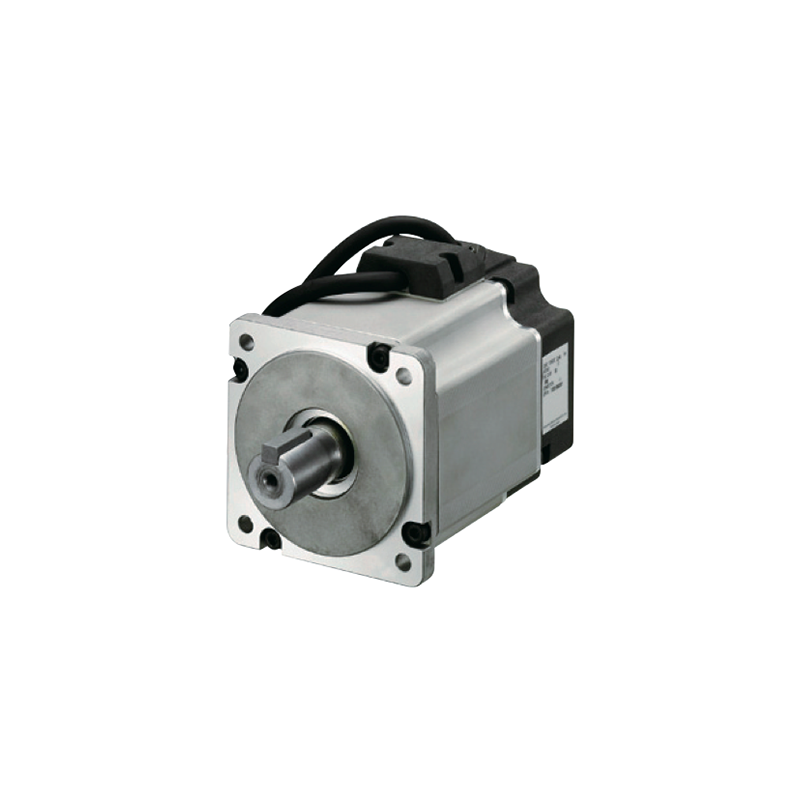

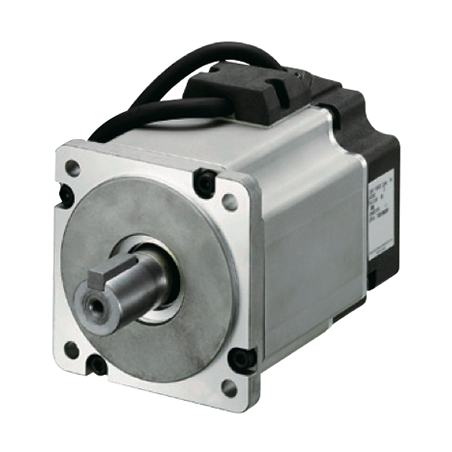

Panasonic MINAS A5 MHMD021G1U Servo Motor 100V 200W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MHMD021G1U Servo Motor 100V 200WThe Panasonic MINAS A5 MHMD021G1U Servo Motor is an advanced, high-performance servo motor designed for precise and reliable motion control in demanding applications. Operating at 100V and delivering a power output of 200W, this servo motor is engineered to meet the rigorous demands of industrial automation, robotics, and precision machinery.Key Features:High Torque and Efficiency: The MINAS A5 MHMD021G1U provides exceptional torque and efficiency, ensuring optimal performance and energy savings.Advanced Control Technology: Incorporates cutting-edge control algorithms for precise speed and position control, enhancing system accuracy and reliability.Durability and Reliability: Built with robust components and rigorous qua
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MHMD021G1U Servo Motor 100V 200W
The Panasonic MINAS A5 MHMD021G1U Servo Motor is an advanced, high-performance servo motor designed for precise and reliable motion control in demanding applications. Operating at 100V and delivering a power output of 200W, this servo motor is engineered to meet the rigorous demands of industrial automation, robotics, and precision machinery.
Key Features:
- High Torque and Efficiency: The MINAS A5 MHMD021G1U provides exceptional torque and efficiency, ensuring optimal performance and energy savings.
- Advanced Control Technology: Incorporates cutting-edge control algorithms for precise speed and position control, enhancing system accuracy and reliability.
- Durability and Reliability: Built with robust components and rigorous quality standards, this motor offers long-lasting performance in challenging environments.
- Compact Design: Its compact form factor allows for easy integration into space-constrained applications without compromising on power.
- Enhanced Connectivity: Compatible with a range of control systems, offering flexible integration and streamlined operations.
Applications:
- Industrial Automation: Ideal for use in automated manufacturing systems requiring precise motion control.
- Robotics: Suitable for robotic arms and other robotic systems where accuracy and repeatability are critical.
- CNC Machinery: Perfect for CNC machines that demand high torque and precise control for machining operations.
Technical Specifications:
- Voltage: 100V
- Power Output: 200W
- Control Type: Closed-loop control
- Motor Type: Brushless DC servo motor
- Compatibility: Compatible with Panasonic MINAS A5 series controllers
The Panasonic MINAS A5 MHMD021G1U Servo Motor combines innovation with reliability, making it a premier choice for professionals seeking superior performance and precision in their applications.
Panasonic MINAS A5 Family MHMD021G1U Servo Motor 100V 200W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHMD021G1U |
| Details | High inertia, Lead wire type, IP65 |
| Family Name | MINAS A5 |
| Series | MHMD Series |
| Type | High inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 60 mm sq. |
| Flange sq. dimension (Unit:mm) | 60 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.5 |
| Voltage specifications | 100 V |
| Rated output | 200 W |
| Rated current (A (rms)) | 2.5 |
| Holding brake | without |
| Mass (kg) | 0.96 |
| Oil seal | with |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 0.64 |
| Momentary Max. peak torque (N ⋅ m) | 1.91 |
| Max. current (A (o-p)) | 10.6 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.42 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 392 |
| During assembly: Thrust load A-direction (N) | 147 |
| During assembly: Thrust load B-direction (N) | 196 |
| During operation: Radial load P-direction (N) | 245 |
| During operation: Thrust load A, B-direction (N) | 98 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MHMD021G1U
Specific References
- UPC
- MHMD021G1U
- MPN
- MHMD021G1U
