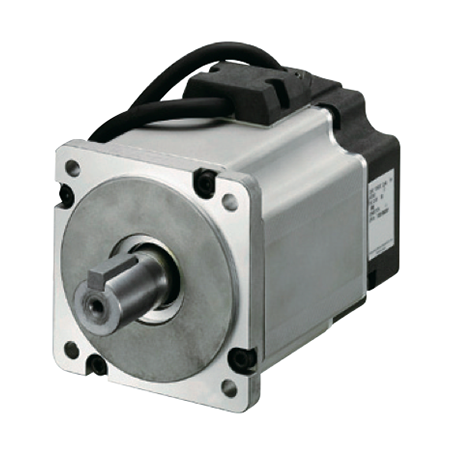

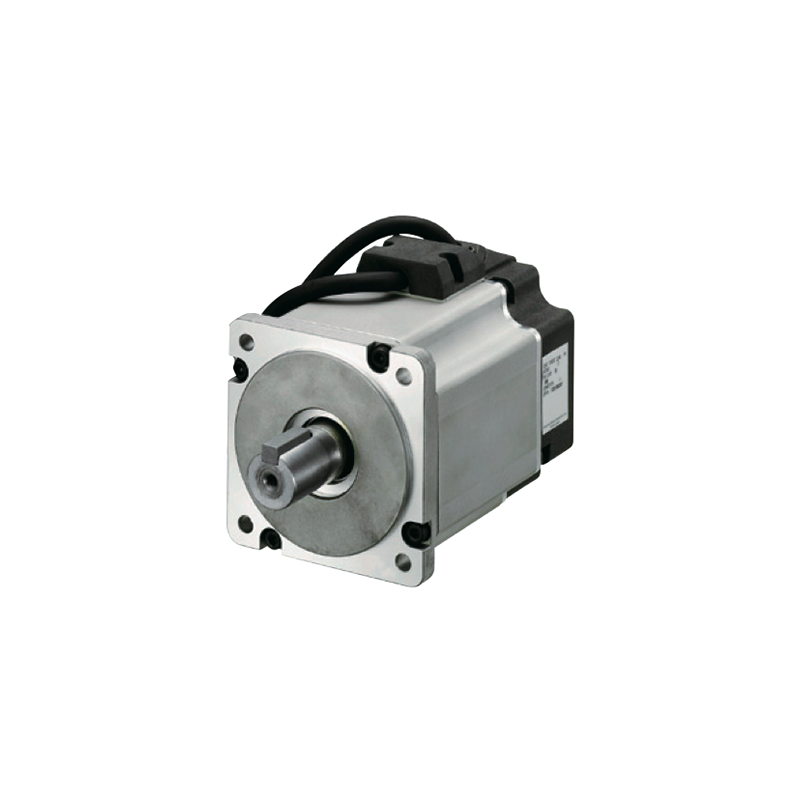

Panasonic MINAS A5 MHMD042S1B Servo Motor 200V 400W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MHMD042S1B Servo Motor 200V 400WExperience exceptional performance and precision with the Panasonic MINAS A5 MHMD042S1B Servo Motor. Engineered for demanding applications, this high-quality servo motor delivers superior control, reliability, and efficiency.Key Features:High Voltage & Power: Designed for 200V systems with a power rating of 400W, ensuring robust performance in various industrial settings.Precision Control: Advanced feedback systems and high-resolution encoders provide precise position, speed, and torque control, enhancing overall system accuracy.Compact Design: Its compact and lightweight construction allows for easy integration into space-constrained environments, without compromising on power or performance.Durability & Reliability: Bu
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MHMD042S1B Servo Motor 200V 400W
Experience exceptional performance and precision with the Panasonic MINAS A5 MHMD042S1B Servo Motor. Engineered for demanding applications, this high-quality servo motor delivers superior control, reliability, and efficiency.
Key Features:
- High Voltage & Power: Designed for 200V systems with a power rating of 400W, ensuring robust performance in various industrial settings.
- Precision Control: Advanced feedback systems and high-resolution encoders provide precise position, speed, and torque control, enhancing overall system accuracy.
- Compact Design: Its compact and lightweight construction allows for easy integration into space-constrained environments, without compromising on power or performance.
- Durability & Reliability: Built with high-grade materials and a rugged construction to withstand harsh operational conditions, ensuring long-term reliability and reduced maintenance.
- Versatile Applications: Ideal for use in robotics, CNC machinery, automated production lines, and other applications requiring high-precision motor control.
Technical Specifications:
- Voltage: 200V AC
- Power: 400W
- Motor Type: Servo Motor
- Series: MINAS A5
- Model: MHMD042S1B
- Feedback Device: High-resolution encoder for accurate feedback
- Cooling Type: Air-cooled
Applications:
- Robotics: Enhance robotic precision and functionality with smooth and accurate motor control.
- CNC Machines: Improve machining accuracy and efficiency with precise motor feedback and control.
- Automated Systems: Ideal for integration into automated production systems requiring reliable and accurate motor performance.
Product Benefits:
- Enhanced Performance: Achieves high-speed operation and precision, contributing to improved overall system performance.
- Energy Efficiency: Designed to optimize energy consumption while delivering powerful performance.
- Easy Integration: Compatible with various control systems and easy to install in different applications.
Warranty: 1-year limited warranty for peace of mind and assurance of quality.
Elevate your automation and control systems with the Panasonic MINAS A5 MHMD042S1B Servo Motor, where cutting-edge technology meets exceptional reliability.
Panasonic MINAS A5 Family MHMD042S1B Servo Motor 200V 400W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHMD042S1B |
| Details | High inertia, Lead wire type, IP65 |
| Family Name | MINAS A5 |
| Series | MHMD Series |
| Type | High inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 60 mm sq. |
| Flange sq. dimension (Unit:mm) | 60 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.9 |
| Voltage specifications | 200 V |
| Rated output | 400 W |
| Rated current (A (rms)) | 2.6 |
| Holding brake | with |
| Mass (kg) | 1.8 |
| Oil seal | without |
| Shaft | Round |
| Rated torque (N ⋅ m) | 1.3 |
| Momentary Max. peak torque (N ⋅ m) | 3.8 |
| Max. current (A (o-p)) | 11.0 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.70 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 17-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 131072 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 1.27 or more |
| Engaging time (ms) | 50 or less |
| Releasing time (ms) | 15 or less |
| Exciting current (DC) (A) | 0.36 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 1.2 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 392 |
| During assembly: Thrust load A-direction (N) | 147 |
| During assembly: Thrust load B-direction (N) | 196 |
| During operation: Radial load P-direction (N) | 245 |
| During operation: Thrust load A, B-direction (N) | 98 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MHMD042S1B
Specific References
- UPC
- MHMD042S1B
- MPN
- MHMD042S1B
