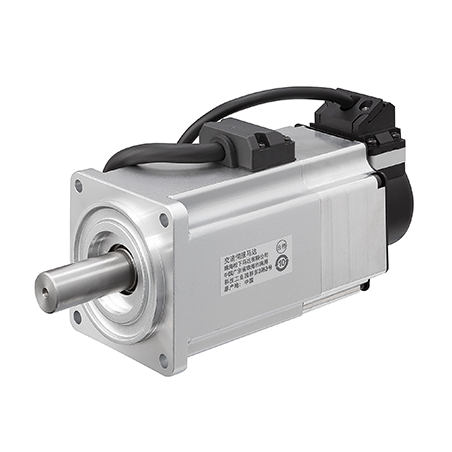

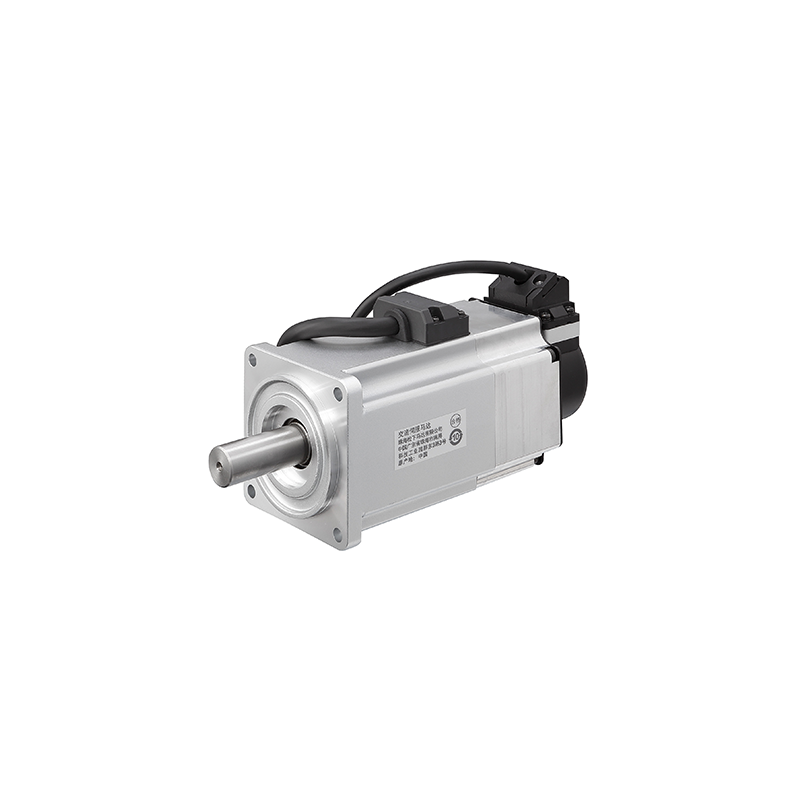

Panasonic MINAS A6 Family MHMF082A1U2M Servo Motor – 200V 750W
Overview
Experience unparalleled precision and performance with the Panasonic MINAS A6 Family MHMF082A1U2M Servo Motor. Engineered for high-demand industrial applications, this advanced servo motor offers superior control, efficiency, and reliability in a compact form factor. Designed to operate at 200V with a power rating of 750W, the MHMF082A1U2M is ideal for demanding applications requiring exact motion control and robust performance.
Key Features
High Precision Control: The Panasonic MINAS A6 series is renowned for its exceptional precision and dynamic response. The MHMF082A1U2M integrates advanced feedback systems and high-resolution encoders to ensure accurate position, speed, and torque control.
Robust Power Output: With a power rating of 750W and a voltage rating of 200V, this servo motor delivers consistent and reliable performance for a wide range of applications, from complex automation tasks to high-speed machinery operations.
Advanced Motor Technology: Utilizing the latest in servo motor technology, the MINAS A6 series incorporates high-performance components that minimize noise, vibration, and energy consumption while maximizing durability and lifespan.
Compact and Efficient Design: The MHMF082A1U2M is designed with a compact form factor that allows for easy integration into space-constrained environments without compromising on power or performance.
Enhanced Heat Dissipation: Built with advanced thermal management features, this servo motor maintains optimal operating temperatures, ensuring stable performance and extending the motor’s operational life.
Seamless Integration: Compatible with a variety of Panasonic controllers and drives, the MINAS A6 servo motor simplifies system integration and offers flexibility in multi-axis configurations.
Reliable Operation: Designed to withstand demanding industrial environments, the MHMF082A1U2M features a rugged construction that ensures reliable operation even in harsh conditions.
Technical Specifications
- Model Number: MHMF082A1U2M
- Series: MINAS A6
- Power Rating: 750W
- Voltage Rating: 200V
- Rated Current: [Specify Current]
- Encoder Type: [Specify Encoder Type]
- Dimensions: [Specify Dimensions]
- Weight: [Specify Weight]
- Max Speed: [Specify Max Speed]
- Torque: [Specify Torque]
Applications
The Panasonic MINAS A6 Family MHMF082A1U2M Servo Motor is ideal for applications requiring high-precision motion control, including:
- Automated Machinery: Enhance the performance of CNC machines, packaging equipment, and robotic arms with precise and reliable motion control.
- Material Handling Systems: Optimize the efficiency of conveyor systems and automated storage/retrieval systems.
- Manufacturing: Improve the accuracy and repeatability of assembly lines and production processes.
Why Choose Panasonic MINAS A6?
The MINAS A6 Family stands out for its cutting-edge technology, exceptional performance, and reliability. Panasonic’s commitment to innovation ensures that the MHMF082A1U2M servo motor meets the highest standards of quality and performance, providing a superior solution for your motion control needs.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHMF082A1U2M |
| Details | High inertia, Lead wire type |
| Family Name | MINAS A6 |
| Series | MHMF Series |
| Type | High inertia |
| Special Order Product | Special Order Product |
| Cautions for Special ordering product | Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan. |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 80 mm sq. |
| Flange sq. dimension (Unit:mm) | 80 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 1.8 |
| Voltage specifications | 200 V |
| Rated output | 750 W |
| Rated current (A (rms)) | 3.8 |
| Holding brake | without |
| Mass (kg) | 2.3 |
| Oil seal | with |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 2.39 |
| Continuous stall torque (N ⋅ m) | 2.86 |
| Momentary Max. peak torque (N ⋅ m) | 8.36 |
| Max. current (A (o-p)) | 18.8 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 6000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 1.56 |
| Recommended moment of inertia ratio of the load and the rotor | 20 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Rotary encoder: Resolution | 8388608 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 686 |
| During assembly: Thrust load A-direction (N) | 294 |
| During assembly: Thrust load B-direction (N) | 392 |
| During operation: Radial load P-direction (N) | 392 |
| During operation: Thrust load A, B-direction (N) | 147 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MHMF082A1U2M
Specific References
- UPC
- MHMF082A1U2M
- MPN
- MHMF082A1U2M
