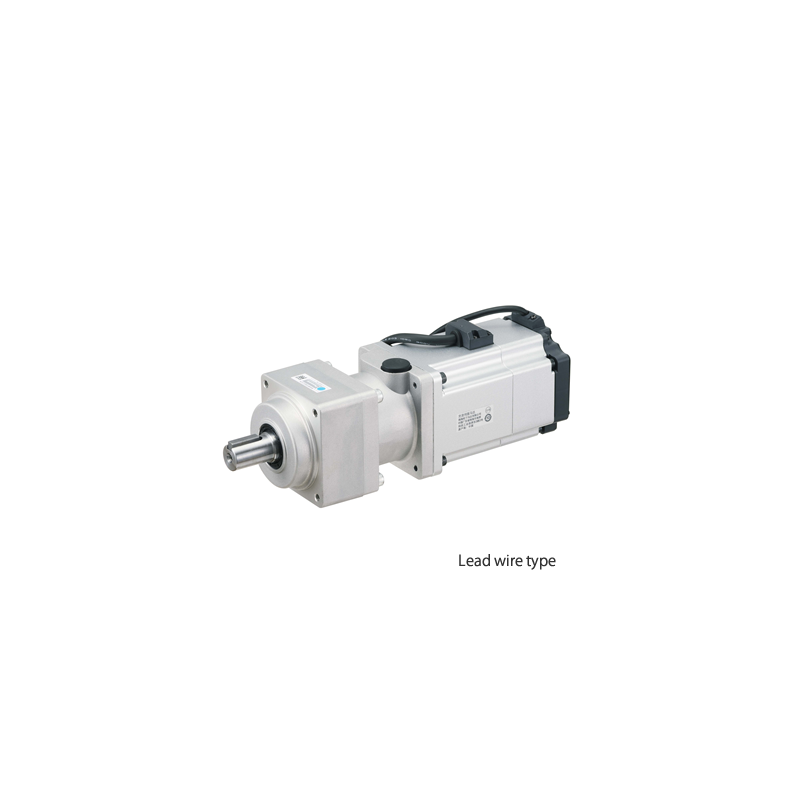

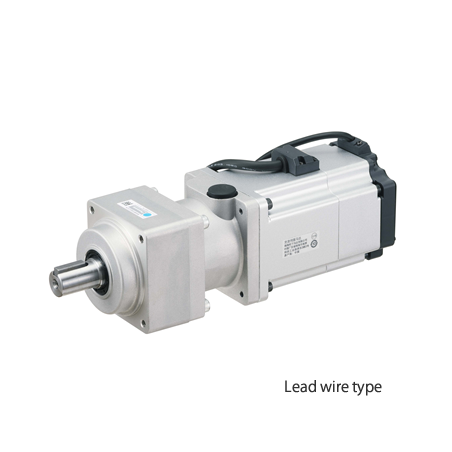

Panasonic MINAS A6 MHMF082L84N Servo Motor 200V 750W
$0.00
Tax included
Panasonic MINAS A6 MHMF082L84N Servo Motor 200V 750WThe Panasonic MINAS A6 MHMF082L84N Servo Motor stands as a pinnacle of precision engineering, delivering unparalleled performance and reliability in motion control applications. Designed to meet the demands of high-end industrial automation, this 200V 750W servo motor embodies cutting-edge technology and robust construction, ensuring optimal operation across diverse sectors.Technical Specifications:Model: MINAS A6 MHMF082L84NVoltage: 200VPower: 750WType: Servo MotorKey Features:Precision Performance: The MINAS A6 MHMF082L84N guarantees exceptional precision in motion control, offering superior accuracy and repeatability crucial for intricate industrial processes.High Torque Density: With an optimized design, this servo motor boasts high t
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Panasonic MINAS A6 MHMF082L84N Servo Motor 200V 750W
The Panasonic MINAS A6 MHMF082L84N Servo Motor stands as a pinnacle of precision engineering, delivering unparalleled performance and reliability in motion control applications. Designed to meet the demands of high-end industrial automation, this 200V 750W servo motor embodies cutting-edge technology and robust construction, ensuring optimal operation across diverse sectors.
Technical Specifications:
- Model: MINAS A6 MHMF082L84N
- Voltage: 200V
- Power: 750W
- Type: Servo Motor
Key Features:
Precision Performance: The MINAS A6 MHMF082L84N guarantees exceptional precision in motion control, offering superior accuracy and repeatability crucial for intricate industrial processes.
High Torque Density: With an optimized design, this servo motor boasts high torque density, enabling seamless handling of varying loads and swift response times.
Enhanced Efficiency: Leveraging advanced engineering, it operates with heightened efficiency, reducing energy consumption without compromising on output.
Robust Construction: Built to withstand rigorous industrial environments, its durable construction ensures longevity and consistent performance, even in demanding conditions.
Seamless Integration: Compatible with a range of control systems, the MINAS A6 MHMF082L84N integrates effortlessly into existing setups, simplifying installation and operation.
Reliability and Durability: Panasonic's commitment to quality ensures reliability, making this servo motor a dependable choice for critical applications where precision and durability are paramount.
Applications:
- CNC Machining
- Robotics
- Automated Assembly Lines
- Packaging Machinery
- Printing Equipment
Servo Motor, Panasonic MINAS A6, MHMF082L84N, 200V, 750W, Precision Motion Control, Industrial Automation, High Torque Density, Efficiency, Durability, CNC Machining, Robotics, Packaging Machinery, Printing Equipment.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHMF082L84N |
| Details | Servo motor with Gear reducer, High inertia, Lead wire type, IP44 |
| Family Name | MINAS A6 |
| Series | MHMF Series |
| Type | High inertia |
| Enclosure | IP44 |
| About Enclosure | at gear reducer |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 1.3 |
| Voltage specifications | 200 V |
| Rated output | 750 W |
| Rated current (A (rms)) | 3.8 |
| Holding brake | with |
| Mass (kg) | 6.7 |
| Gear reduction ratio | 1/25 |
| Gear type | For high precision |
| Shaft | Key-way, center tap |
| [About Characteristic of Gear Reducer] | The output, rated rotational speed, maximum rotational speed, rated torque, instantaneous maximum torque of the geared servomotor are values on the output shaft of the gear. |
| Output (W) | 637 |
| Rated torque (N ⋅ m) | 50.7 |
| Continuous stall torque (N ⋅ m) | 2.86 |
| Momentary Max. peak torque (N ⋅ m) | 186 |
| Max. current (A (o-p)) | 18.8 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| Rated rotational speed (r/min) | 120 |
| Rated rotational Max. speed (r/min) | 240 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 2.32 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or smaller |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 3.8 or more |
| Engaging time (ms) | 70 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.42 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| Radial load (N) | 2060 |
| Thrust load (N) | 1030 |
