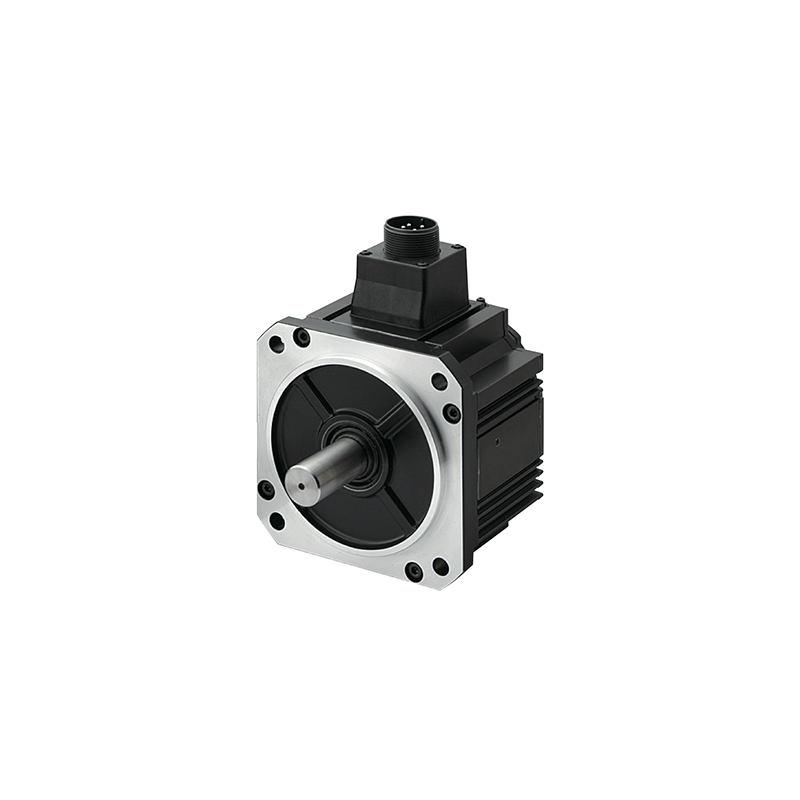

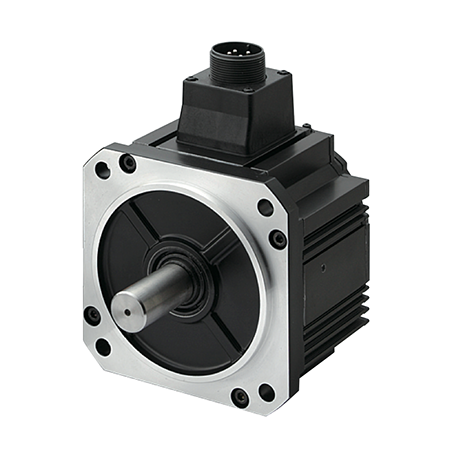

Panasonic MINAS A6 Family MHMF502L1H6M Servo Motor - 200V 5000W
$0.00
Tax included
Panasonic MINAS A6 Family MHMF502L1H6M Servo Motor - 200V 5000WOverviewThe Panasonic MINAS A6 Family MHMF502L1H6M Servo Motor represents the pinnacle of precision and performance in industrial automation. Designed for demanding applications, this high-performance servo motor operates at 200V and delivers a robust 5000W of power. Ideal for use in advanced manufacturing, robotics, and automation systems, the MHMF502L1H6M ensures exceptional accuracy, reliability, and efficiency.Key FeaturesHigh Power Output: With a powerful 5000W rating, the MHMF502L1H6M provides superior torque and speed capabilities, making it suitable for high-load and high-speed applications.Voltage Rating: Operates efficiently at 200V, ensuring compatibility with a wide range of industrial power systems and providing st
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Panasonic MINAS A6 Family MHMF502L1H6M Servo Motor - 200V 5000W
Overview
The Panasonic MINAS A6 Family MHMF502L1H6M Servo Motor represents the pinnacle of precision and performance in industrial automation. Designed for demanding applications, this high-performance servo motor operates at 200V and delivers a robust 5000W of power. Ideal for use in advanced manufacturing, robotics, and automation systems, the MHMF502L1H6M ensures exceptional accuracy, reliability, and efficiency.
Key Features
High Power Output: With a powerful 5000W rating, the MHMF502L1H6M provides superior torque and speed capabilities, making it suitable for high-load and high-speed applications.
Voltage Rating: Operates efficiently at 200V, ensuring compatibility with a wide range of industrial power systems and providing stable performance across various environments.
Precision Engineering: Incorporates advanced feedback mechanisms and high-resolution encoders for precise motion control and accurate positioning, essential for complex manufacturing processes.
Enhanced Reliability: Built with Panasonic’s renowned durability standards, the MINAS A6 series is designed to withstand rigorous operational demands, minimizing downtime and maintenance costs.
Compact Design: The motor’s compact form factor allows for easy integration into tight spaces, optimizing machine layout and enhancing overall system design flexibility.
Advanced Control Features: Equipped with sophisticated control algorithms, the MHMF502L1H6M ensures smooth operation, reduces vibration, and enhances system responsiveness.
Energy Efficiency: Designed to maximize energy efficiency, this servo motor reduces power consumption and operational costs while delivering exceptional performance.
Versatile Applications: Ideal for a wide range of applications including CNC machinery, industrial robots, and high-speed packaging systems, the MHMF502L1H6M adapts to various operational needs.
Technical Specifications
- Model: MHMF502L1H6M
- Series: MINAS A6 Family
- Power Rating: 5000W
- Voltage Rating: 200V
- Control Type: Advanced Servo Control with High-Resolution Feedback
- Mounting Type: [Specify Mounting Type if applicable]
- Protection Class: [Specify Protection Class if applicable]
- Dimensions: [Specify Dimensions if applicable]
- Weight: [Specify Weight if applicable]
Benefits
- Optimized Performance: The MHMF502L1H6M delivers high-speed operation and precise control, enhancing overall system efficiency and productivity.
- Reduced Downtime: Its robust construction and reliability minimize maintenance needs and extend operational life.
- Flexibility in Integration: The motor’s compact design and versatile features make it adaptable to a wide range of applications and environments.
- Cost-Effective Operation: By improving energy efficiency, the MHMF502L1H6M helps reduce operational costs and improve return on investment.
Applications
- CNC Machines: Achieve high-precision cutting, drilling, and machining tasks.
- Industrial Robots: Enhance automation in assembly lines and material handling.
- Packaging Systems: Ensure accurate and efficient packaging and labeling processes.
- Manufacturing Equipment: Improve performance in various manufacturing and production machinery.
Why Choose Panasonic MINAS A6 Family MHMF502L1H6M?
The Panasonic MINAS A6 Family MHMF502L1H6M Servo Motor stands out for its superior power, precision, and reliability. As a leading choice for industrial automation, it provides exceptional performance, flexibility, and efficiency, making it an invaluable component in modern manufacturing systems.
For more information or to request a quote, please contact us or visit our website.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHMF502L1H6M |
| Details | High inertia, Connector type |
| Family Name | MINAS A6 |
| Series | MHMF Series |
| Type | High inertia |
| Special Order Product | Special Order Product |
| Cautions for Special ordering product | Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan. |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 176 mm sq. |
| Flange sq. dimension (Unit:mm) | 176 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Motor connector: JL10, Encoder connector: Large size JL10 |
| About Motor encoder connector | Connector JL10 (Large size): Also applicable to screwed type |
| Power supply capacity (kVA) | 7.8 |
| Voltage specifications | 200 V |
| Rated output | 5000 W |
| Rated current (A (rms)) | 23.3 |
| Holding brake | with |
| Mass (kg) | 22.8 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 23.9 |
| Continuous stall torque (N ⋅ m) | 26.3 |
| Momentary Max. peak torque (N ⋅ m) | 71.6 |
| Max. current (A (o-p)) | 99 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 2000 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 151 |
| Recommended moment of inertia ratio of the load and the rotor | 5 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 44.1 or more |
| Engaging time (ms) | 150 or less |
| Releasing time (ms) | 30 or less |
| Exciting current (DC) (A) | 1.29 ± 10 % |
| Releasing voltage (DC) (V) | 2 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 1666 |
| During assembly: Thrust load A-direction (N) | 784 |
| During assembly: Thrust load B-direction (N) | 980 |
| During operation: Radial load P-direction (N) | 784 |
| During operation: Thrust load A, B-direction (N) | 343 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
