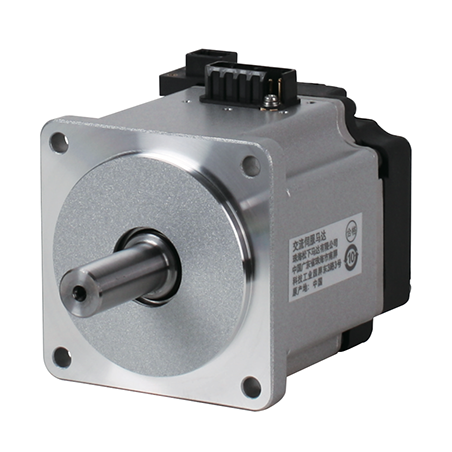

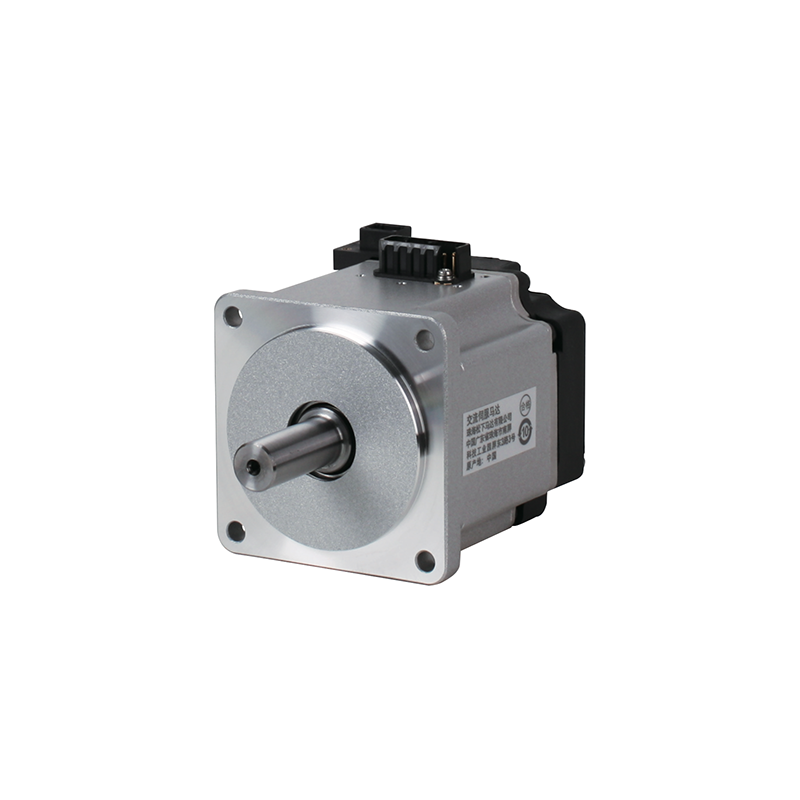

Panasonic MINAS A6 MQMF011L1U3 Servo Motor | 100V 100W Precision Motor
search
  • Panasonic MINAS A6 MQMF011L1U3 Servo Motor | 100V 100W Precision Motor

Panasonic MINAS A6 MQMF011L1U3 Servo Motor 100V 100W

$0.00
Tax included
Panasonic MINAS A6 MQMF011L1U3 Servo Motor 100V 100WThe Panasonic MINAS A6 MQMF011L1U3 Servo Motor stands as an exemplar of precision engineering, designed to deliver unparalleled performance in a compact form factor. With a power rating of 100V and 100W, this servo motor caters to demanding industrial applications, providing precise motion control and exceptional reliability.Key Features:High Precision Control: Engineered with cutting-edge technology, this servo motor ensures accurate positioning and control, ideal for tasks demanding utmost precision.Compact Design: Despite its robust performance, the MINAS A6 MQMF011L1U3 boasts a compact form factor, making it suitable for space-constrained applications without compromising on efficiency.Efficient Power Output: Operating at 100V and 100
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Panasonic MINAS A6 MQMF011L1U3 Servo Motor 100V 100W

The Panasonic MINAS A6 MQMF011L1U3 Servo Motor stands as an exemplar of precision engineering, designed to deliver unparalleled performance in a compact form factor. With a power rating of 100V and 100W, this servo motor caters to demanding industrial applications, providing precise motion control and exceptional reliability.

Key Features:

  1. High Precision Control: Engineered with cutting-edge technology, this servo motor ensures accurate positioning and control, ideal for tasks demanding utmost precision.

  2. Compact Design: Despite its robust performance, the MINAS A6 MQMF011L1U3 boasts a compact form factor, making it suitable for space-constrained applications without compromising on efficiency.

  3. Efficient Power Output: Operating at 100V and 100W, this servo motor optimizes power usage, resulting in enhanced energy efficiency while maintaining consistent output.

  4. Reliability and Durability: Crafted with premium materials and rigorous manufacturing standards, this servo motor guarantees longevity and sustained performance even in challenging industrial environments.

Technical Specifications:

  • Model Number: MQMF011L1U3
  • Voltage: 100V
  • Power Rating: 100W
  • Motor Type: Servo
  • Compact Size: [Insert precise dimensions if available]
  • Weight: [Insert weight]
  • Operating Temperature Range: [Specify temperature range]
  • Compatible Applications: [Mention specific industrial applications where this motor excels]

Applications:

The MINAS A6 MQMF011L1U3 Servo Motor finds its utility across various industries, including but not limited to:

  • Manufacturing: Precision machinery, robotics, automated assembly lines.
  • Automation: CNC machines, pick-and-place systems, packaging machinery.
  • Medical Equipment: Diagnostic instruments, robotic surgery systems.
  • Aerospace: Control systems, unmanned aerial vehicles (UAVs).

SEO-Optimized Keywords:

Ensure improved search engine visibility by incorporating relevant keywords:

  • Panasonic MINAS A6 MQMF011L1U3 Servo Motor
  • 100V 100W Servo Motor
  • Precision Control Servo Motor
  • Industrial Servo Motor Panasonic

Experience unparalleled precision and reliability with the Panasonic MINAS A6 MQMF011L1U3 Servo Motor, the epitome of performance in motion control technology.

Spec Detail

ItemSpecifications
Part NumberMQMF011L1U3
DetailsMiddle inertia Flat type, Connector type
Family NameMINAS A6
SeriesMQMF Series
TypeMiddle inertia Flat type
EnclosureIP67
About EnclosureExcept rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
Environmental ConditionsFor more details, please refer to the instruction manual.
Flange sq. dimension60 mm sq.
Flange sq. dimension (Unit:mm)60
Motor lead-out configurationConnector
Motor encoder connectorConnector
Power supply capacity (kVA)0.4
Voltage specifications100 V
Rated output100 W
Rated current (A (rms))1.6
Holding brakewithout
Mass (kg)0.61
Oil sealwith protective lip
ShaftKey-way, center tap
Rated torque (N ⋅ m)0.32
Continuous stall torque (N ⋅ m)0.33
Momentary Max. peak torque (N ⋅ m)1.11
Max. current (A (o-p))7.9
Regenerative brake frequency (times/min)Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4280
About regenerative brake frequencyPlease refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)3000
Rated rotational Max. speed (r/min)6500
Moment of inertia of rotor ( x10-4 kg ⋅ m²)0.15
Recommended moment of inertia ratio of the load and the rotor20 times or less
About recommended moment of inertia ratio of the load and the rotorPlease refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications23-bit Absolute/Incremental system
NoticeWhen using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution8388608


Permissible load

ItemSpecifications
During assembly: Radial load P-direction (N)147
During assembly: Thrust load A-direction (N)88
During assembly: Thrust load B-direction (N)117.6
During operation: Radial load P-direction (N)68.6
During operation: Thrust load A, B-direction (N)58.8
About permissible loadFor details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".
