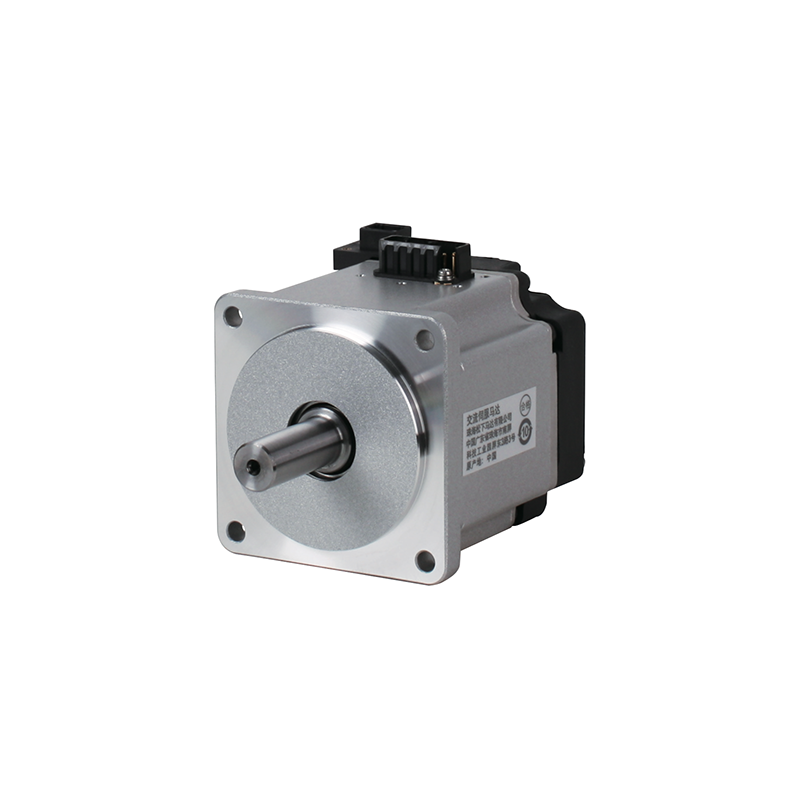

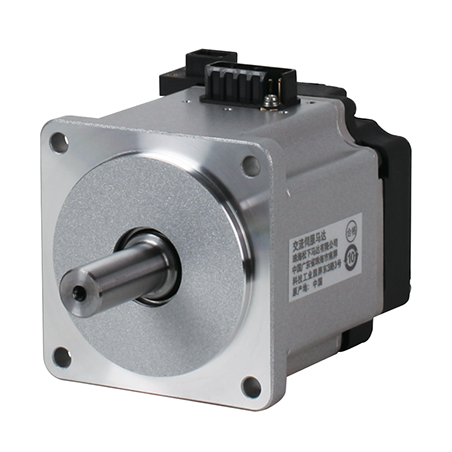

Panasonic MINAS A6 MQMF042L1V4 Servo Motor - 200V 400W High Precision
$0.00
Tax included
Panasonic MINAS A6 Family MQMF042L1V4 Servo Motor – 200V, 400WElevate Your Automation with Precision and PowerThe Panasonic MINAS A6 Family MQMF042L1V4 Servo Motor offers a state-of-the-art solution for high-performance motion control applications. Engineered with advanced technology and built for durability, this servo motor is ideal for a range of industrial and automation settings where precision and reliability are paramount.Key Features:Powerful Performance: With a robust 400W output power and a 200V operating voltage, the MQMF042L1V4 delivers superior torque and speed control, ensuring optimal performance across various applications.High Precision and Stability: The MINAS A6 series is renowned for its exceptional precision, thanks to advanced feedback systems and high-resolution enco
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Panasonic MINAS A6 Family MQMF042L1V4 Servo Motor – 200V, 400W
Elevate Your Automation with Precision and Power
The Panasonic MINAS A6 Family MQMF042L1V4 Servo Motor offers a state-of-the-art solution for high-performance motion control applications. Engineered with advanced technology and built for durability, this servo motor is ideal for a range of industrial and automation settings where precision and reliability are paramount.
Key Features:
Powerful Performance: With a robust 400W output power and a 200V operating voltage, the MQMF042L1V4 delivers superior torque and speed control, ensuring optimal performance across various applications.
High Precision and Stability: The MINAS A6 series is renowned for its exceptional precision, thanks to advanced feedback systems and high-resolution encoders that guarantee accurate positioning and consistent operation.
Enhanced Efficiency: Featuring an advanced motor control algorithm, this servo motor maximizes energy efficiency while minimizing heat generation, leading to reduced operational costs and extended service life.
Compact Design: The MQMF042L1V4's compact and lightweight design allows for easy integration into tight spaces and compact machinery setups, providing flexibility without compromising on performance.
Robust Construction: Built to withstand harsh industrial environments, the servo motor is constructed from high-quality materials, ensuring durability and reliability even under demanding conditions.
Versatile Application: Ideal for applications such as robotics, CNC machinery, conveyor systems, and more, the Panasonic MINAS A6 servo motor adapts to a wide range of automation and motion control requirements.
Easy Integration: Equipped with user-friendly interfaces and comprehensive compatibility with Panasonic’s control systems, the MQMF042L1V4 ensures seamless integration and quick setup.
Specifications:
- Model: MQMF042L1V4
- Voltage: 200V
- Power Rating: 400W
- Type: Servo Motor
- Series: MINAS A6 Family
- Feedback Type: Encoder-based
- Construction: Compact and durable
Applications:
- Industrial Automation: Enhance the efficiency and precision of automated production lines and robotic systems.
- CNC Machinery: Achieve high-precision control and smooth operation in CNC equipment.
- Material Handling: Improve performance and reliability in conveyor systems and other material handling processes.
- Robotics: Drive advanced robotic arms and systems with exceptional accuracy and responsiveness.
The Panasonic MINAS A6 Family MQMF042L1V4 Servo Motor stands out as a premier choice for engineers and automation professionals seeking reliable, high-performance motion control solutions. Invest in the future of automation technology with a servo motor designed to meet the demands of modern industrial applications.
For more information or to request a quote, please contact us.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MQMF042L1V4 |
| Details | Middle inertia Flat type, Lead wire type |
| Family Name | MINAS A6 |
| Series | MQMF Series |
| Type | Middle inertia Flat type |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 80 mm sq. |
| Flange sq. dimension (Unit:mm) | 80 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.9 |
| Voltage specifications | 200 V |
| Rated output | 400 W |
| Rated current (A (rms)) | 2.1 |
| Holding brake | with |
| Mass (kg) | 2.2 |
| Oil seal | with protective lip |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 1.27 |
| Continuous stall torque (N ⋅ m) | 1.40 |
| Momentary Max. peak torque (N ⋅ m) | 4.46 |
| Max. current (A (o-p)) | 10.4 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 6500 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 1.06 |
| Recommended moment of inertia ratio of the load and the rotor | 20 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 1.6 or more |
| Engaging time (ms) | 70 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.36 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 392 |
| During assembly: Thrust load A-direction (N) | 147 |
| During assembly: Thrust load B-direction (N) | 196 |
| During operation: Radial load P-direction (N) | 245 |
| During operation: Thrust load A, B-direction (N) | 98 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
