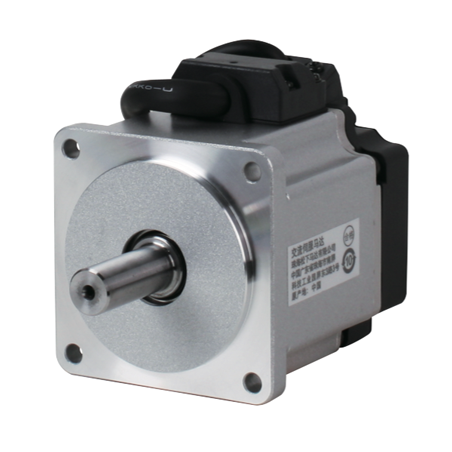

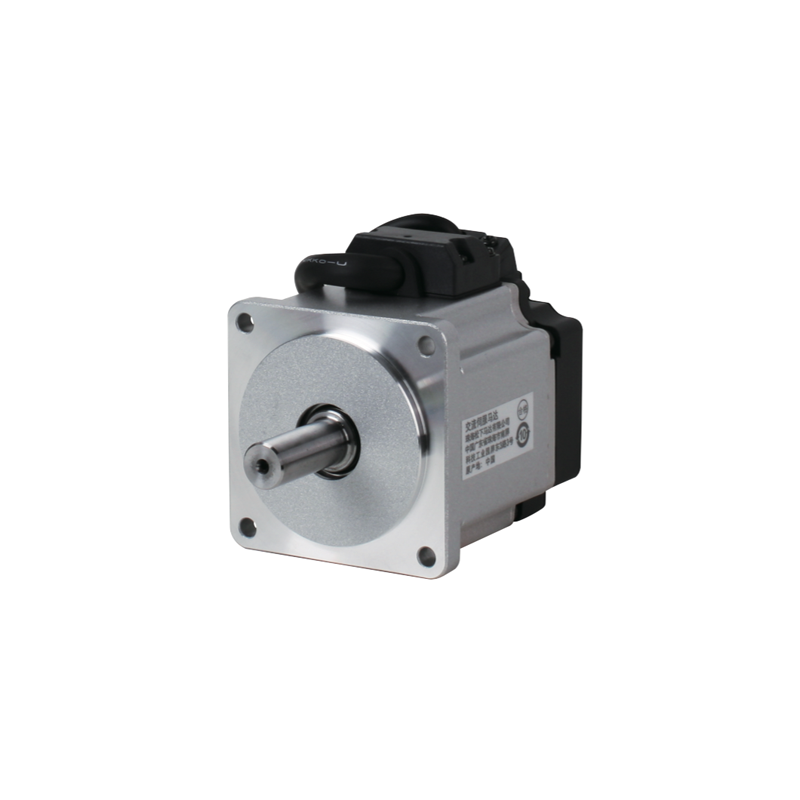

Panasonic MINAS A5 MSMD011G1T Servo Motor 100V 100W | High Precision & Reliability
search
  • Panasonic MINAS A5 MSMD011G1T Servo Motor 100V 100W | High Precision & Reliability

Panasonic MINAS A5 MSMD011G1T Servo Motor 100V 100W

$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MSMD011G1T Servo Motor (100V, 100W)The Panasonic MINAS A5 MSMD011G1T Servo Motor represents the pinnacle of precision and reliability in motion control technology. Designed for high-performance applications, this servo motor features a robust 100V operating voltage and a power rating of 100W, ensuring exceptional torque and speed control.Technical Specifications:Model: MINAS A5 MSMD011G1TVoltage Rating: 100V DCPower Output: 100WCurrent Rating: 1.0AMotor Type: Brushless DC Servo MotorFeedback System: EncoderMaximum Speed: 3000 RPMTorque Rating: 0.32 NmMounting Type: Flange MountOperating Temperature Range: -10°C to +40°CDimensions: 60mm x 60mm x 130mmWeight: 1.2 kgKey Features:High Precision Control: The MSMD011G1T integrates a high-resolution encoder t
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Description

Panasonic MINAS A5 MSMD011G1T Servo Motor (100V, 100W)

The Panasonic MINAS A5 MSMD011G1T Servo Motor represents the pinnacle of precision and reliability in motion control technology. Designed for high-performance applications, this servo motor features a robust 100V operating voltage and a power rating of 100W, ensuring exceptional torque and speed control.

Technical Specifications:

  • Model: MINAS A5 MSMD011G1T
  • Voltage Rating: 100V DC
  • Power Output: 100W
  • Current Rating: 1.0A
  • Motor Type: Brushless DC Servo Motor
  • Feedback System: Encoder
  • Maximum Speed: 3000 RPM
  • Torque Rating: 0.32 Nm
  • Mounting Type: Flange Mount
  • Operating Temperature Range: -10°C to +40°C
  • Dimensions: 60mm x 60mm x 130mm
  • Weight: 1.2 kg

Key Features:

  1. High Precision Control: The MSMD011G1T integrates a high-resolution encoder that provides superior position feedback, ensuring precise motion control for complex applications.
  2. Exceptional Reliability: Designed with advanced materials and engineering, this servo motor offers enhanced durability and operational longevity.
  3. Compact and Lightweight: Its compact size and light weight make it ideal for integration into space-constrained environments without compromising performance.
  4. Versatile Application: Perfect for a wide range of applications including robotics, CNC machinery, and automated systems, providing flexible solutions for various industrial needs.
  5. Efficient Operation: High energy efficiency and low power consumption contribute to reduced operational costs and environmental impact.

Applications:

  • Industrial automation
  • Robotics and mechatronics
  • CNC machines
  • Packaging machinery
  • Medical equipment

The Panasonic MINAS A5 MSMD011G1T Servo Motor delivers unmatched performance and precision, making it a crucial component for modern automation and control systems. Its state-of-the-art technology and robust construction ensure reliable operation and superior results in demanding applications.

Panasonic MINAS A5 Family MSMD011G1T Servo Motor 100V 100W

Spec Detail

ItemSpecifications
Part NumberMSMD011G1T
DetailsLow inertia, Lead wire type, IP65
Family NameMINAS A5
SeriesMSMD Series
TypeLow inertia
EnclosureIP65
About EnclosureExcept rotating portion of output shaft and leadwire end.
Environmental ConditionsFor more details, please refer to the instruction manual.
Flange sq. dimension38 mm sq.
Flange sq. dimension (Unit:mm)38
Motor lead-out configurationLead wire
Motor encoder connectorLead wire
Power supply capacity (kVA)0.4
Voltage specifications100 V
Rated output100 W
Rated current (A (rms))1.7
Holding brakewith
Mass (kg)0.68
Oil sealwithout
ShaftKey-way, center tap
Rated torque (N ⋅ m)0.32
Momentary Max. peak torque (N ⋅ m)0.95
Max. current (A (o-p))7.2
Regenerative brake frequency (times/min)Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4280
About regenerative brake frequencyPlease refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)3000
Rated rotational Max. speed (r/min)5000
Moment of inertia of rotor ( x10-4 kg ⋅ m²)0.054
Recommended moment of inertia ratio of the load and the rotor30 times or less
About recommended moment of inertia ratio of the load and the rotorPlease refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications20-bit Incremental system
Rotary encoder: Resolution1048576


Brake specifications

ItemSpecifications
Static friction torque (N ⋅ m)0.29 or more
Engaging time (ms)35 or less
Releasing time (ms)20 or less
Exciting current (DC) (A)0.3
Releasing voltage (DC) (V)1 or more
Exciting voltage (DC) (V)24 ± 1.2
About brake specificationsThis brake will be released when it is energized.
Do not use this for braking the motor in motion.
Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4.


Permissible load

ItemSpecifications
During assembly: Radial load P-direction (N)147
During assembly: Thrust load A-direction (N)88
During assembly: Thrust load B-direction (N)117.6
During operation: Radial load P-direction (N)68.6
During operation: Thrust load A, B-direction (N)58.8
About permissible loadFor details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".
MSMD011G1T

Specific References

UPC
MSMD011G1T
MPN
MSMD011G1T
New
