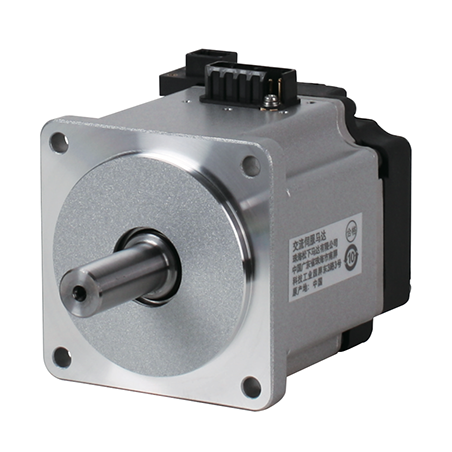

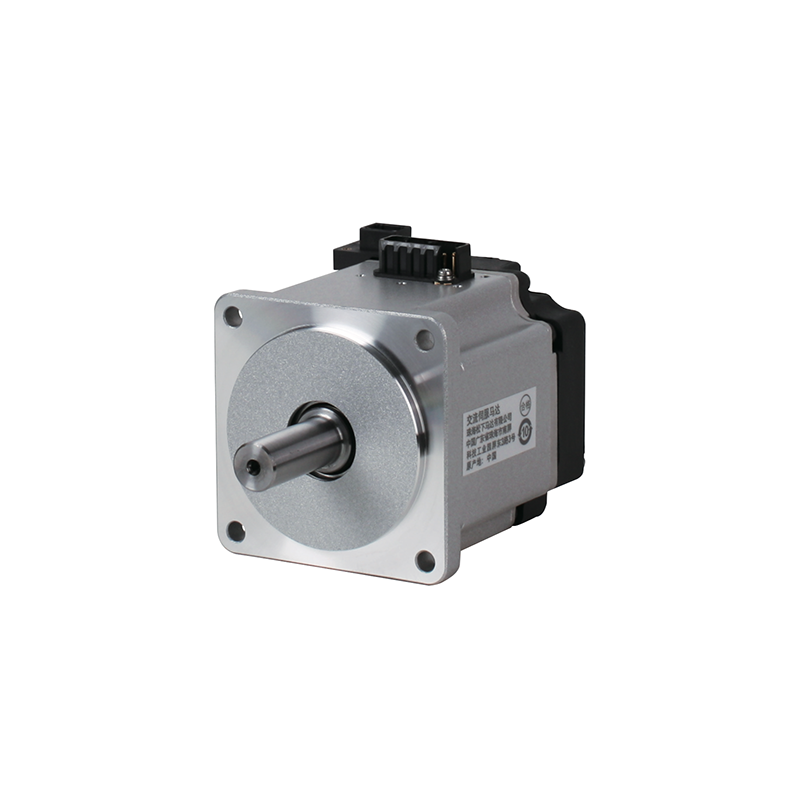

Panasonic MINAS A5 MSMD011G41N Servo Motor 100V 100W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MSMD011G41N Servo Motor 100V 100WThe Panasonic MINAS A5 MSMD011G41N is a high-performance servo motor engineered to deliver precision and reliability in demanding applications. Designed for operation at 100V and with a power rating of 100W, this advanced servo motor integrates seamlessly into automation and robotics systems, offering exceptional control and efficiency.Key Features:High Torque and Accuracy: The MSMD011G41N boasts superior torque characteristics and positional accuracy, making it ideal for applications requiring meticulous control and high performance.Advanced Control Technology: Incorporating Panasonic’s state-of-the-art MINAS A5 series control algorithms, this servo motor ensures smooth operation and precise response across a wide rang
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MSMD011G41N Servo Motor 100V 100W
The Panasonic MINAS A5 MSMD011G41N is a high-performance servo motor engineered to deliver precision and reliability in demanding applications. Designed for operation at 100V and with a power rating of 100W, this advanced servo motor integrates seamlessly into automation and robotics systems, offering exceptional control and efficiency.
Key Features:
- High Torque and Accuracy: The MSMD011G41N boasts superior torque characteristics and positional accuracy, making it ideal for applications requiring meticulous control and high performance.
- Advanced Control Technology: Incorporating Panasonic’s state-of-the-art MINAS A5 series control algorithms, this servo motor ensures smooth operation and precise response across a wide range of speeds and loads.
- Compact and Robust Design: Engineered with a compact footprint, the MSMD011G41N fits into space-constrained environments while maintaining a rugged construction suitable for harsh industrial conditions.
- Efficient Cooling System: Equipped with an advanced cooling mechanism, this servo motor ensures consistent performance and longevity even during prolonged operation.
- Enhanced Compatibility: The motor is compatible with a variety of Panasonic servo drives, allowing for flexible integration into existing systems and easy upgrades to newer technologies.
Applications:
The Panasonic MINAS A5 MSMD011G41N is ideal for applications in fields such as robotics, CNC machinery, packaging, and precision assembly where high-speed, high-precision motion control is critical. Its robust performance and reliability make it a preferred choice for engineers and technicians seeking to enhance the accuracy and efficiency of their systems.
Specifications:
- Power Supply Voltage: 100V
- Power Rating: 100W
- Type: AC Servo Motor
- Control Technology: MINAS A5 Series
- Dimensions: Compact, specific dimensions available upon request
- Weight: Lightweight, specific weight details available upon request
Customer Support and Warranty:
Panasonic offers comprehensive support for the MINAS A5 MSMD011G41N, including technical assistance and a standard warranty to ensure the motor operates at peak performance throughout its service life.
Panasonic MINAS A5 Family MSMD011G41N Servo Motor 100V 100W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSMD011G41N |
| Details | Servo motor with Gear reducer, Low inertia, Lead wire type, IP44 |
| Family Name | MINAS A5 |
| Series | MSMD Series |
| Type | Low inertia |
| Enclosure | IP44 |
| About Enclosure | at gear reducer |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.4 |
| Voltage specifications | 100 V |
| Rated output | 100 W |
| Rated current (A (rms)) | 1.7 |
| Holding brake | with |
| Mass (kg) | 1.23 |
| Gear reduction ratio | 1/5 |
| Gear type | For high precision |
| Shaft | Key-way |
| [About Characteristic of Gear Reducer] | The output, rated rotational speed, maximum rotational speed, rated torque, instantaneous maximum torque of the geared servomotor are values on the output shaft of the gear. |
| Output (W) | 75 |
| Rated torque (N ⋅ m) | 1.18 |
| Momentary Max. peak torque (N ⋅ m) | 3.72 |
| Max. current (A (o-p)) | 7.2 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4280 |
| Rated rotational speed (r/min) | 600 |
| Rated rotational Max. speed (r/min) | 1000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.094 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or smaller |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 0.29 or more |
| Engaging time (ms) | 35 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.3 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 1.2 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| Radial load (N) | 490 |
| Thrust load (N) | 245 |
