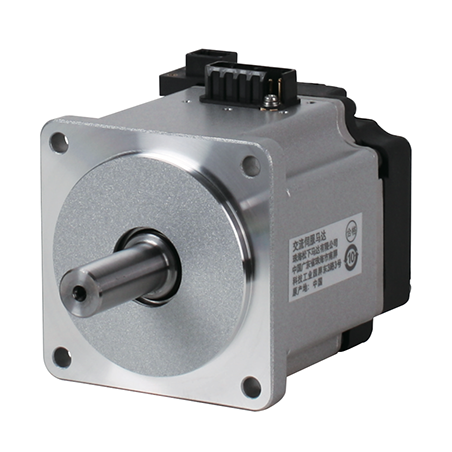

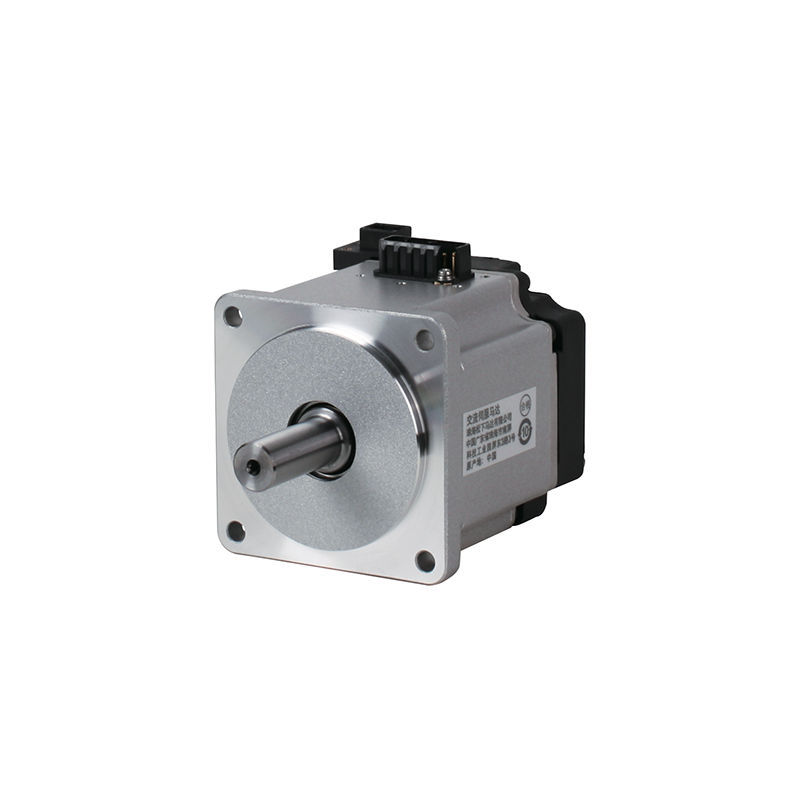

Panasonic MINAS A5 MSMD082G1C Servo Motor 200V 750W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MSMD082G1C Servo Motor 200V 750WThe Panasonic MINAS A5 MSMD082G1C Servo Motor delivers high-performance and precision control in demanding applications. Operating at 200V with a power rating of 750W, this advanced servo motor is engineered for optimal efficiency and reliability, making it ideal for automation, robotics, and precision machinery.Key Features:High Torque and Speed: With a nominal output power of 750W, this servo motor provides robust torque and rapid acceleration, ensuring superior performance in various industrial tasks.Advanced Control Technology: The MSMD082G1C integrates Panasonic’s cutting-edge servo control technology, enabling precise position, speed, and torque control for complex motion requirements.Enhanced Reliability: Built wi
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MSMD082G1C Servo Motor 200V 750W
The Panasonic MINAS A5 MSMD082G1C Servo Motor delivers high-performance and precision control in demanding applications. Operating at 200V with a power rating of 750W, this advanced servo motor is engineered for optimal efficiency and reliability, making it ideal for automation, robotics, and precision machinery.
Key Features:
- High Torque and Speed: With a nominal output power of 750W, this servo motor provides robust torque and rapid acceleration, ensuring superior performance in various industrial tasks.
- Advanced Control Technology: The MSMD082G1C integrates Panasonic’s cutting-edge servo control technology, enabling precise position, speed, and torque control for complex motion requirements.
- Enhanced Reliability: Built with high-quality materials and rigorous manufacturing standards, the MINAS A5 servo motor ensures long-term reliability and reduced maintenance needs.
- Compact Design: Its compact and lightweight design facilitates easy integration into space-constrained environments while delivering exceptional power density.
- Versatile Applications: Suitable for a wide range of applications including CNC machinery, assembly lines, and packaging systems, this motor adapts seamlessly to different operational needs.
- Integrated Encoder: Features a high-resolution encoder for accurate feedback, ensuring precise control and performance stability.
Technical Specifications:
- Model: MSMD082G1C
- Voltage: 200V
- Power Rating: 750W
- Feedback Device: Encoder
- Motor Type: Servo Motor
- Operating Environment: Suitable for industrial environments with high reliability and durability standards.
Applications:
- Robotics
- CNC Machines
- Automated Production Lines
- Packaging Machinery
- Industrial Automation
Product Advantages:
- Superior Performance: Achieves high-speed and high-torque output for demanding tasks.
- Reduced Downtime: Durable construction and advanced technology reduce the need for frequent maintenance.
- Energy Efficient: Designed for efficient energy consumption, contributing to lower operational costs.
The Panasonic MINAS A5 MSMD082G1C Servo Motor is a pivotal component for high-precision and high-reliability applications. Its advanced features and exceptional performance make it a valuable asset in any automation system.
Panasonic MINAS A5 Family MSMD082G1C Servo Motor 200V 750W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSMD082G1C |
| Details | Low inertia, Lead wire type, IP65 |
| Family Name | MINAS A5 |
| Series | MSMD Series |
| Type | Low inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 80 mm sq. |
| Flange sq. dimension (Unit:mm) | 80 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 1.3 |
| Voltage specifications | 200 V |
| Rated output | 750 W |
| Rated current (A (rms)) | 4.0 |
| Holding brake | without |
| Mass (kg) | 2.3 |
| Oil seal | with |
| Shaft | Round |
| Rated torque (N ⋅ m) | 2.4 |
| Momentary Max. peak torque (N ⋅ m) | 7.1 |
| Max. current (A (o-p)) | 17.0 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 4500 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.87 |
| Recommended moment of inertia ratio of the load and the rotor | 20 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 686 |
| During assembly: Thrust load A-direction (N) | 294 |
| During assembly: Thrust load B-direction (N) | 392 |
| During operation: Radial load P-direction (N) | 392 |
| During operation: Thrust load A, B-direction (N) | 147 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MSMD082G1C
Specific References
- UPC
- MSMD082G1C
- MPN
- MSMD082G1C
