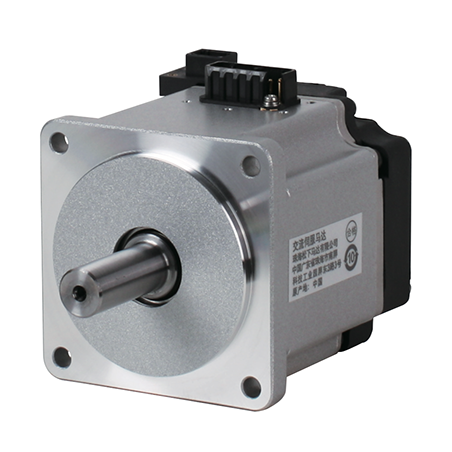

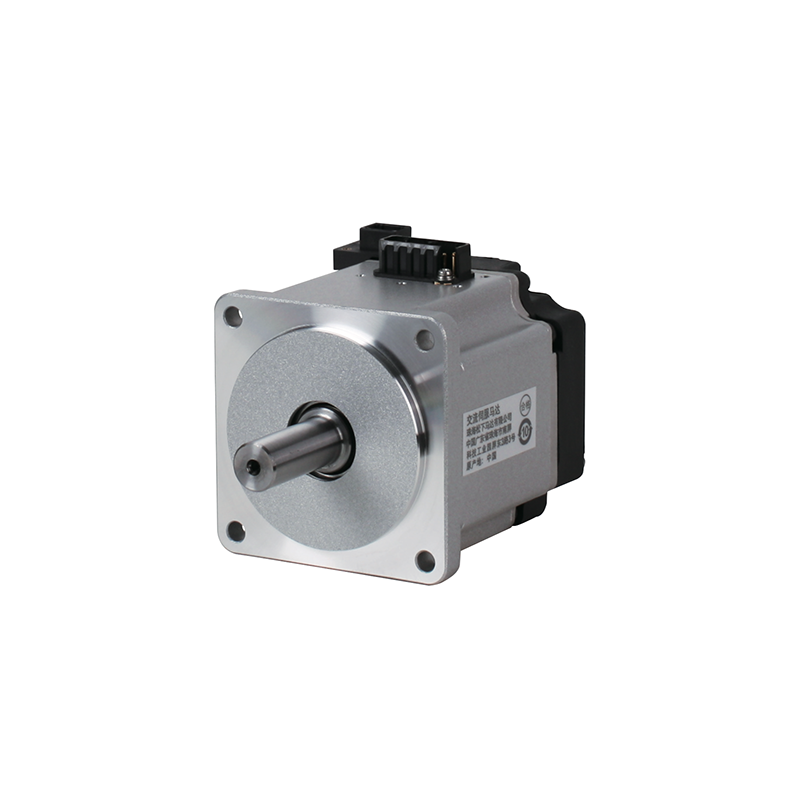

Panasonic MINAS A5 MSMD082G1D Servo Motor 200V 750W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MSMD082G1D Servo Motor 200V 750WThe Panasonic MINAS A5 MSMD082G1D Servo Motor is a high-performance, 200V, 750W servo motor designed to meet the rigorous demands of modern industrial applications. This advanced motor integrates cutting-edge technology to deliver superior precision, efficiency, and reliability in various automation and motion control systems.Key Features:High Power and Efficiency: With a rated power output of 750W and operating voltage of 200V, the MSMD082G1D provides robust performance for demanding applications, ensuring smooth and efficient operation.Precision Engineering: Equipped with advanced feedback mechanisms and high-resolution encoders, this servo motor offers exceptional accuracy and responsiveness, crucial for precise motio
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MSMD082G1D Servo Motor 200V 750W
The Panasonic MINAS A5 MSMD082G1D Servo Motor is a high-performance, 200V, 750W servo motor designed to meet the rigorous demands of modern industrial applications. This advanced motor integrates cutting-edge technology to deliver superior precision, efficiency, and reliability in various automation and motion control systems.
Key Features:
- High Power and Efficiency: With a rated power output of 750W and operating voltage of 200V, the MSMD082G1D provides robust performance for demanding applications, ensuring smooth and efficient operation.
- Precision Engineering: Equipped with advanced feedback mechanisms and high-resolution encoders, this servo motor offers exceptional accuracy and responsiveness, crucial for precise motion control.
- Compact and Durable Design: The motor's compact size allows for easy integration into space-constrained environments, while its durable construction ensures long-lasting reliability even in harsh operating conditions.
- Enhanced Control and Stability: The MINAS A5 series features an advanced control algorithm that enhances stability and minimizes vibrations, providing a smoother and more consistent performance.
- Versatile Applications: Ideal for a wide range of applications including robotics, CNC machinery, and automated manufacturing systems, this servo motor excels in both speed and torque control.
Technical Specifications:
- Model: MSMD082G1D
- Voltage: 200V
- Power: 750W
- Motor Type: Servo Motor
- Control Type: Feedback Control
- Application: Industrial Automation, Robotics, CNC Machining
The Panasonic MINAS A5 MSMD082G1D Servo Motor stands out for its combination of high power, precise control, and reliable performance, making it an excellent choice for professionals seeking top-tier motion control solutions.
Panasonic MINAS A5 Family MSMD082G1D Servo Motor 200V 750W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSMD082G1D |
| Details | Low inertia, Lead wire type, IP65 |
| Family Name | MINAS A5 |
| Series | MSMD Series |
| Type | Low inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 80 mm sq. |
| Flange sq. dimension (Unit:mm) | 80 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 1.3 |
| Voltage specifications | 200 V |
| Rated output | 750 W |
| Rated current (A (rms)) | 4.0 |
| Holding brake | with |
| Mass (kg) | 3.1 |
| Oil seal | with |
| Shaft | Round |
| Rated torque (N ⋅ m) | 2.4 |
| Momentary Max. peak torque (N ⋅ m) | 7.1 |
| Max. current (A (o-p)) | 17.0 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 4500 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.97 |
| Recommended moment of inertia ratio of the load and the rotor | 20 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 2.45 or more |
| Engaging time (ms) | 70 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.42 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 1.2 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 686 |
| During assembly: Thrust load A-direction (N) | 294 |
| During assembly: Thrust load B-direction (N) | 392 |
| During operation: Radial load P-direction (N) | 392 |
| During operation: Thrust load A, B-direction (N) | 147 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
