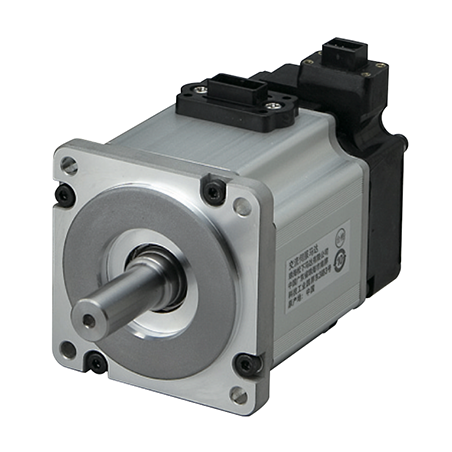

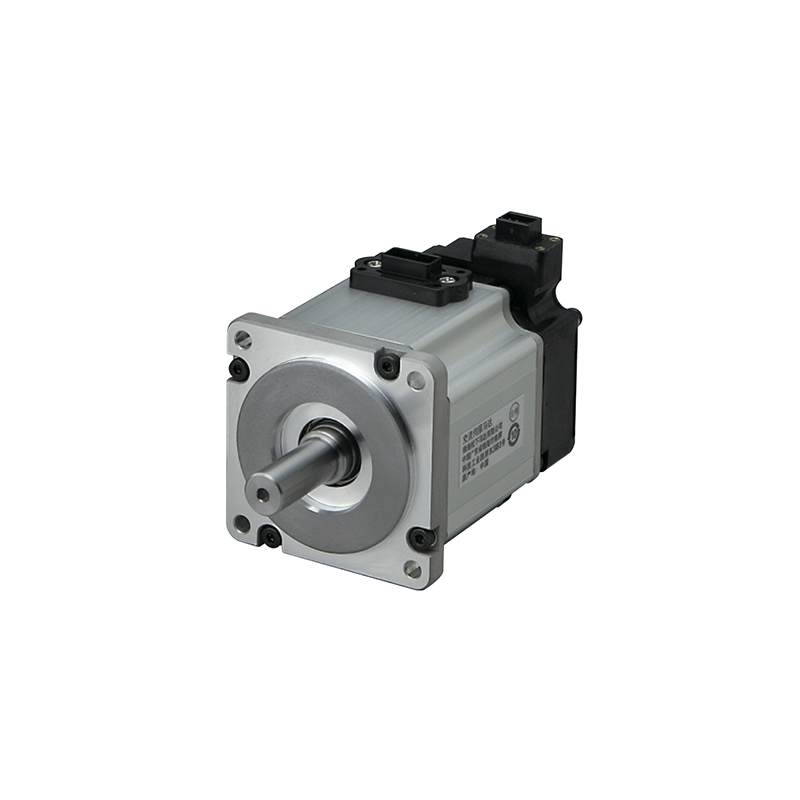

Panasonic MINAS A5 MSME042S42N Servo Motor 200V 400W

Name: Panasonic MINAS A5 MSME042S42N Servo Motor 200V 400W
Brand: Panasonic
SKU: MSME042S42N
Availability: OutOfStock

$0.00

Tax included

Product DescriptionPanasonic MINAS A5 MSME042S42N Servo Motor 200V 400WThe Panasonic MINAS A5 MSME042S42N Servo Motor represents a pinnacle in precision motion control, offering exceptional performance and reliability for advanced industrial applications. Engineered with a 200V, 400W rating, this servo motor is designed to meet the demands of high-speed, high-torque operations in various automated systems.Technical Specifications:Model: MSME042S42NType: AC Servo MotorRated Voltage: 200VRated Power: 400WRated Torque: 1.27 Nm (Nominal)Rated Speed: 3000 RPMEncoder Resolution: 2048 pulses per revolutionFeedback Type: Absolute encoderMotor Construction: High-strength aluminum housing with a compact designCooling Method: Convection coolingKey Features:High Precision: Equipped with a high-resolut

Quantity

Out-of-Stock

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Product Description

Panasonic MINAS A5 MSME042S42N Servo Motor 200V 400W

The Panasonic MINAS A5 MSME042S42N Servo Motor represents a pinnacle in precision motion control, offering exceptional performance and reliability for advanced industrial applications. Engineered with a 200V, 400W rating, this servo motor is designed to meet the demands of high-speed, high-torque operations in various automated systems.

Technical Specifications:

Model: MSME042S42N
Type: AC Servo Motor
Rated Voltage: 200V
Rated Power: 400W
Rated Torque: 1.27 Nm (Nominal)
Rated Speed: 3000 RPM
Encoder Resolution: 2048 pulses per revolution
Feedback Type: Absolute encoder
Motor Construction: High-strength aluminum housing with a compact design
Cooling Method: Convection cooling

Key Features:

High Precision: Equipped with a high-resolution encoder, the MINAS A5 offers superior positional accuracy and smooth motion control.
Enhanced Performance: The servo motor's advanced control algorithms ensure minimal vibration and noise, enhancing overall system stability.
Energy Efficiency: The motor is designed to optimize energy consumption while maintaining high performance, reducing operational costs.
Durability: Built to withstand harsh industrial environments, the robust construction ensures long-term reliability and reduced maintenance requirements.
Compatibility: The MINAS A5 integrates seamlessly with Panasonic's A5 series drive controllers, providing a comprehensive solution for sophisticated automation systems.

Applications: Ideal for use in robotics, CNC machinery, automated assembly lines, and other applications requiring precise and reliable motion control. The MINAS A5 MSME042S42N is well-suited for tasks involving high-speed positioning, complex motion profiles, and dynamic load conditions.

Benefits:

Improved Productivity: Achieve faster cycle times and higher throughput with the motor’s rapid response and high torque output.
Reduced Downtime: Reliability and low maintenance needs minimize production interruptions and maintenance costs.
Scalability: The flexibility of the MINAS A5 allows it to adapt to a wide range of applications and system configurations.

Invest in the Panasonic MINAS A5 MSME042S42N Servo Motor to enhance your automation capabilities with cutting-edge technology and unparalleled performance.

Panasonic MINAS A5 Family MSME042S42N Servo Motor 200V 400W

Spec Detail

Item	Specifications
Part Number	MSME042S42N
Details	Servo motor with Gear reducer, Low inertia, Connector type, IP44
Family Name	MINAS A5
Series	MSME Series
Type	Low inertia
Enclosure	IP44
About Enclosure	at gear reducer
Environmental Conditions	For more details, please refer to the instruction manual.
Motor lead-out configuration	Connector
Motor encoder connector	Connector
Power supply capacity (kVA)	0.9
Voltage specifications	200 V
Rated output	400 W
Rated current (A (rms))	0.9
Holding brake	with
Mass (kg)	3.3
Gear reduction ratio	1/9
Gear type	For high precision
Shaft	Key-way
[About Characteristic of Gear Reducer]	The output, rated rotational speed, maximum rotational speed, rated torque, instantaneous maximum torque of the geared servomotor are values on the output shaft of the gear.
Output (W)	332
Rated torque (N ⋅ m)	9.51
Momentary Max. peak torque (N ⋅ m)	28.5
Max. current (A (o-p))	10.2
Regenerative brake frequency (times/min)	Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283
Rated rotational speed (r/min)	333
Rated rotational Max. speed (r/min)	666
Moment of inertia of rotor ( x10^-4 kg ⋅ m²)	0.548
Recommended moment of inertia ratio of the load and the rotor	10 times or smaller
Rotary encoder: specifications	17-bit Absolute/Incremental system
Notice	When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution	131072

Brake specifications

Item	Specifications
Static friction torque (N ⋅ m)	1.27 or more
Engaging time (ms)	50 or less
Releasing time (ms)	15 or less
Exciting current (DC) (A)	0.36
Releasing voltage (DC) (V)	1 or more
Exciting voltage (DC) (V)	24 ± 1.2
About brake specifications	This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4.
