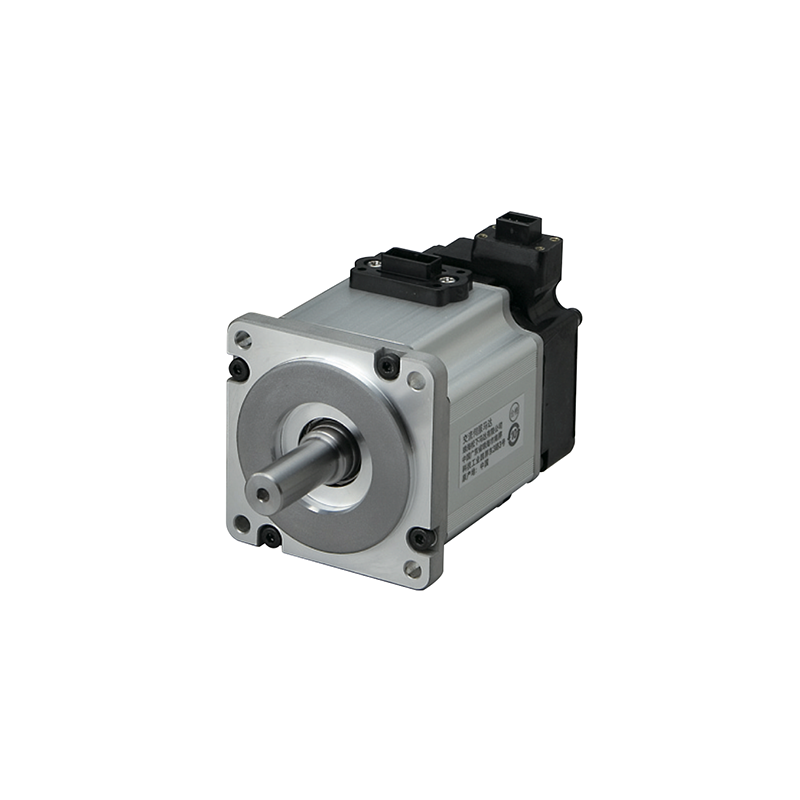

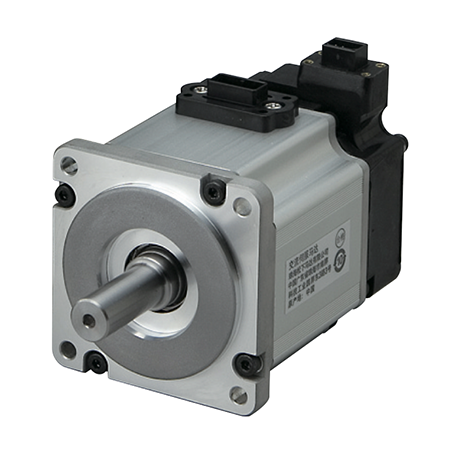

Panasonic MINAS A6 MSMF092L1B1 High-Performance Servo Motor
$0.00
Tax included
Panasonic MINAS A6 MSMF092L1B1 Servo MotorUnlock unparalleled precision and efficiency with the Panasonic MINAS A6 MSMF092L1B1 Servo Motor. Engineered to meet the most demanding industrial automation requirements, this high-performance servo motor is designed to enhance your machinery’s operational capabilities and deliver exceptional results in a wide range of applications.Key Features:Superior Performance: The MINAS A6 MSMF092L1B1 boasts an impressive torque-to-weight ratio, delivering high torque in a compact design. This ensures robust performance and reliability in various operational settings.Advanced Control Technology: Incorporating Panasonic’s latest control technology, this servo motor provides precise speed, position, and torque control. The advanced feedback system and high-res
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Panasonic MINAS A6 MSMF092L1B1 Servo Motor
Unlock unparalleled precision and efficiency with the Panasonic MINAS A6 MSMF092L1B1 Servo Motor. Engineered to meet the most demanding industrial automation requirements, this high-performance servo motor is designed to enhance your machinery’s operational capabilities and deliver exceptional results in a wide range of applications.
Key Features:
Superior Performance: The MINAS A6 MSMF092L1B1 boasts an impressive torque-to-weight ratio, delivering high torque in a compact design. This ensures robust performance and reliability in various operational settings.
Advanced Control Technology: Incorporating Panasonic’s latest control technology, this servo motor provides precise speed, position, and torque control. The advanced feedback system and high-resolution encoder facilitate accurate and responsive performance.
Enhanced Efficiency: With a high-efficiency design, the MINAS A6 reduces energy consumption and operational costs. The motor's superior thermal management and low vibration levels contribute to a longer lifespan and reduced maintenance requirements.
Versatile Application: Ideal for applications in robotics, CNC machinery, packaging, and other industrial automation systems, this servo motor offers versatility and adaptability to meet diverse needs.
Compact and Durable Design: The MSMF092L1B1 features a robust and compact construction, allowing it to fit into tight spaces while withstanding harsh industrial environments. Its durable design ensures reliable operation even under challenging conditions.
Seamless Integration: The motor is designed for easy integration with Panasonic’s MINAS A6 servo drives, providing a seamless and efficient system setup. This compatibility enhances overall system performance and simplifies installation.
High Precision Encoder: Equipped with a high-resolution encoder, the MINAS A6 delivers exceptional precision and accuracy in motion control, crucial for applications requiring exact positioning.
Specifications:
- Model: MSMF092L1B1
- Rated Output: [Insert specific output]
- Rated Speed: [Insert specific speed]
- Rated Torque: [Insert specific torque]
- Power Supply: [Insert voltage and current specifications]
- Encoder Resolution: [Insert resolution details]
- Protection Class: [Insert protection class]
Applications:
- Robotics
- CNC Machinery
- Packaging Equipment
- Material Handling
- Assembly Systems
Why Choose Panasonic MINAS A6 MSMF092L1B1?
The Panasonic MINAS A6 MSMF092L1B1 Servo Motor represents a fusion of cutting-edge technology and dependable performance. Its advanced features and precision engineering make it an ideal choice for industries requiring high-performance motion control solutions. Elevate your automation systems with Panasonic’s renowned quality and innovation.
Contact Us:
For more information about the Panasonic MINAS A6 MSMF092L1B1 Servo Motor or to request a quote, please contact us today. Our team of experts is here to assist you with your automation needs and ensure you get the best solution for your application.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSMF092L1B1 |
| Details | Low inertia, Connector type |
| Family Name | MINAS A6 |
| Series | MSMF Series |
| Type | Low inertia |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 80 mm sq. |
| Flange sq. dimension (Unit:mm) | 80 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 2.4 |
| Voltage specifications | 200 V |
| Rated output | 1000 W |
| Rated current (A (rms)) | 5.7 |
| Holding brake | with |
| Mass (kg) | 3.6 |
| Oil seal | without |
| Shaft | Round |
| Rated torque (N ⋅ m) | 3.18 |
| Continuous stall torque (N ⋅ m) | 3.18 |
| Momentary Max. peak torque (N ⋅ m) | 9.55 |
| Max. current (A (o-p)) | 24.2 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4284 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 6000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 1.36 |
| Recommended moment of inertia ratio of the load and the rotor | 15 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 3.80 or more |
| Engaging time (ms) | 70 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.42 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 686 |
| During assembly: Thrust load A-direction (N) | 294 |
| During assembly: Thrust load B-direction (N) | 392 |
| During operation: Radial load P-direction (N) | 392 |
| During operation: Thrust load A, B-direction (N) | 147 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
