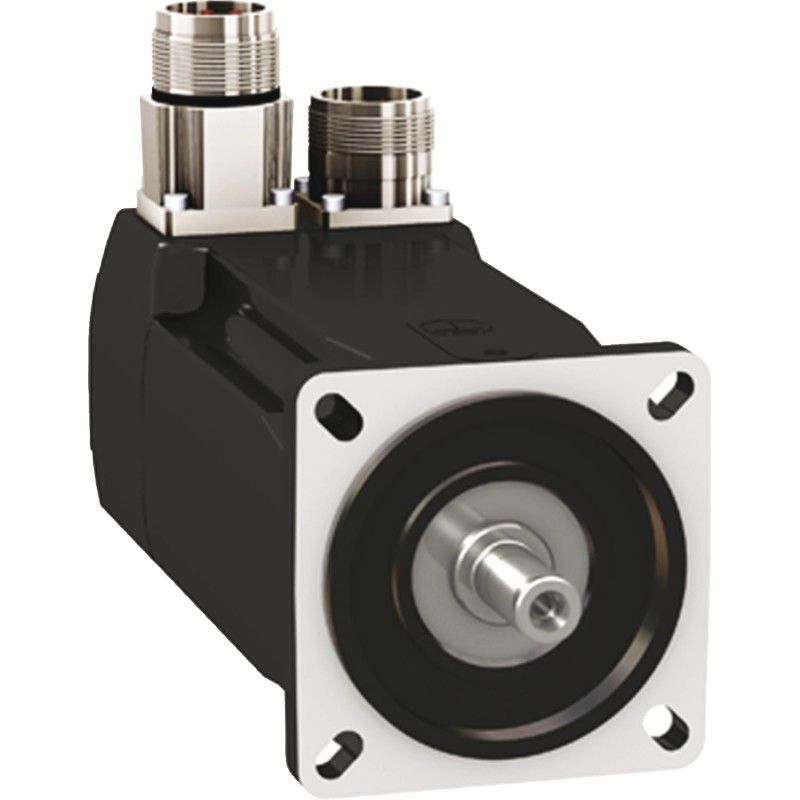

Schneider BMH0701T32A2A Servo Motor - 1.4 Nm, 8000 RPM, Keyed Shaft, IP65/IP67
search
  • Schneider BMH0701T32A2A Servo Motor - 1.4 Nm, 8000 RPM, Keyed Shaft, IP65/IP67

Schneider BMH0701T32A2A Servo Motor - 1.4 Nm - 8000 RPM - Keyed Shaft - Without Brake - IP65/IP67

$0.00
含稅
Schneider BMH0701T32A2A Servo Motor - 1.4 Nm, 8000 RPM, Keyed Shaft, Without Brake, IP65/IP67OverviewThe Schneider BMH0701T32A2A Servo Motor is engineered for precision and reliability in demanding applications. With a torque rating of 1.4 Nm and a high-speed capability of up to 8000 RPM, this servo motor is designed to deliver exceptional performance in a variety of automation and control systems.Key FeaturesHigh Performance: The BMH0701T32A2A offers a robust torque output of 1.4 Nm, ensuring efficient power transmission and precise control for high-speed applications.Speed Capability: Capable of reaching speeds up to 8000 RPM, this servo motor supports dynamic operations and rapid response requirements, making it ideal for high-performance automation tasks.Keyed Shaft: Equipped with a ke
數量

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Schneider BMH0701T32A2A Servo Motor - 1.4 Nm, 8000 RPM, Keyed Shaft, Without Brake, IP65/IP67

Overview

The Schneider BMH0701T32A2A Servo Motor is engineered for precision and reliability in demanding applications. With a torque rating of 1.4 Nm and a high-speed capability of up to 8000 RPM, this servo motor is designed to deliver exceptional performance in a variety of automation and control systems.

Key Features

  • High Performance: The BMH0701T32A2A offers a robust torque output of 1.4 Nm, ensuring efficient power transmission and precise control for high-speed applications.
  • Speed Capability: Capable of reaching speeds up to 8000 RPM, this servo motor supports dynamic operations and rapid response requirements, making it ideal for high-performance automation tasks.
  • Keyed Shaft: Equipped with a keyed shaft, this motor provides enhanced stability and accuracy in torque transmission, ensuring reliable performance and minimizing slippage.
  • Durable Construction: Designed without a brake, the motor is optimized for applications where braking is managed separately or not required, contributing to a lighter and more compact design.
  • Robust Protection: With an IP65/IP67 rating, the BMH0701T32A2A ensures superior protection against dust and water ingress, making it suitable for harsh and industrial environments.

Applications

The Schneider BMH0701T32A2A Servo Motor is ideal for use in a variety of industrial applications, including:

  • Automation Systems: Perfect for robotic arms, CNC machines, and automated assembly lines requiring high-speed and precise movements.
  • Material Handling: Suitable for conveyors and packaging machines where reliable and high-speed operation is critical.
  • Test Equipment: Excellent for dynamic testing setups that demand rapid and accurate motor response.

Technical Specifications

  • Torque: 1.4 Nm
  • Maximum Speed: 8000 RPM
  • Shaft Type: Keyed Shaft
  • Brake: None
  • Protection Rating: IP65/IP67

Benefits

  • Enhanced Precision: The combination of high speed and accurate torque delivery makes this motor ideal for precision-driven tasks.
  • Durability: The robust IP rating ensures the motor withstands harsh environmental conditions, prolonging its operational life.
  • Versatility: The absence of an internal brake allows flexibility in integrating external braking solutions based on specific application needs.

Optimize your automation processes with the Schneider BMH0701T32A2A Servo Motor, designed to offer superior performance and reliability in demanding environments.

Main
product or component type
Servo motor
device short name
BMH
maximum mechanical speed
8000 rpm
continuous stall torque
1.4 N.m for LXM32.D18M2 6 A at 115 V single phase
1.4 N.m for LXM32.U90M2 3 A at 230 V single phase
peak stall torque
4.2 N.m for LXM32.D18M2 6 A at 115 V single phase
4 N.m for LXM32.U90M2 3 A at 230 V single phase
nominal output power
450 W for LXM32.U90M2 3 A at 230 V single phase
350 W for LXM32.D18M2 6 A at 115 V single phase
nominal torque
1.35 N.m for LXM32.D18M2 6 A at 115 V single phase
1.1 N.m for LXM32.U90M2 3 A at 230 V single phase
nominal speed
2500 rpm for LXM32.D18M2 6 A at 115 V single phase
4000 rpm for LXM32.U90M2 3 A at 230 V single phase
product compatibility
LXM32.U90M2 at 230 V single phase
LXM32.D18M2 at 115 V single phase
shaft end
Keyed
IP degree of protection
IP65 (standard)
IP67 (with IP67 kit)
speed feedback resolution
131072 points/turn x 4096 turns
holding brake
Without
mounting support
International standard flange
electrical connection
Rotatable right-angled connectors
Complementary
range compatibility
Lexium 32
[Us] rated supply voltage
240 V
network number of phases
Three phase
continuous stall current
2.85 A
continuous power
1.05 W
maximum current Irms
9.6 A for LXM32.D18M2
9.6 A for LXM32.U90M2
maximum permanent current
9.56 A
second shaft
Without second shaft end
shaft diameter
11 mm
shaft length
23 mm
key width
18 mm
feedback type
Multiturn SinCos Hiperface
motor flange size
70 mm
number of motor stacks
1
torque constant
0.49 N.m/A at 120 °C
back emf constant
31.17 V/krpm at 120 °C
number of motor poles
10
rotor inertia
0.59 kg.cm²
stator resistance
3.2 Ohm at 20 °C
stator inductance
9.1 mH at 20 °C
stator electrical time constant
2.8 ms at 20 °C
maximum radial force Fr
360 N at 6000 rpm
380 N at 5000 rpm
410 N at 4000 rpm
460 N at 3000 rpm
520 N at 2000 rpm
660 N at 1000 rpm
maximum axial force Fa
0.2 x Fr
type of cooling
Natural convection
length
122 mm
centring collar diameter
60 mm
centring collar depth
2.5 mm
number of mounting holes
4
mounting holes diameter
5.5 mm
circle diameter of the mounting holes
82 mm
product weight
1.6 kg
BMH0701T32A2A

具體參考

UPC
BMH0701T32A2
MPN
BMH0701T32A2A
