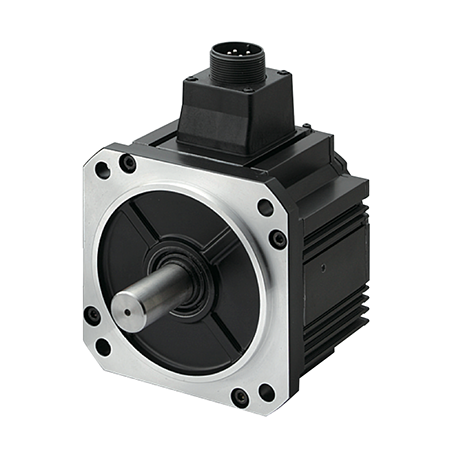

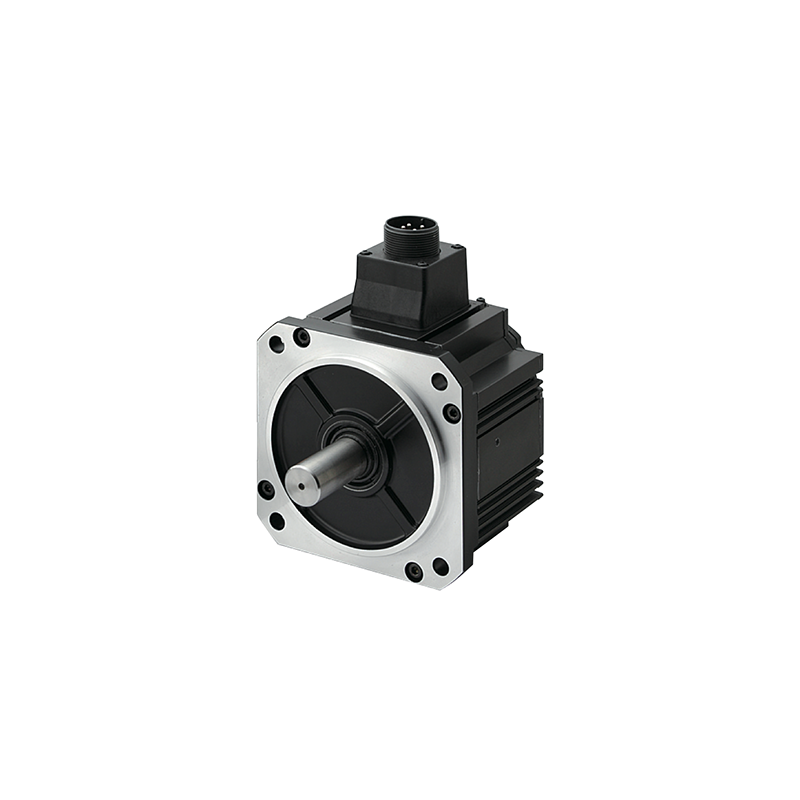

Panasonic MINAS A5 MDMEC12G1H Servo Motor 200V 11000W
$0.00
含稅
Product DescriptionPanasonic MINAS A5 MDMEC12G1H Servo Motor 200V 11000WThe Panasonic MINAS A5 MDMEC12G1H is a high-performance servo motor designed to meet the rigorous demands of industrial automation. This model operates at a voltage of 200V and delivers an impressive 11000W of power, making it an ideal choice for applications requiring precision, reliability, and high torque output.Key Features:Powerful Performance: With a robust output of 11000W, the MDMEC12G1H provides exceptional torque and speed, facilitating superior control and efficiency in various industrial tasks.Advanced Control Technology: Equipped with Panasonic's advanced MINAS A5 drive technology, this servo motor ensures precise positioning and smooth operation, reducing mechanical wear and enhancing system longevity.Enh
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MDMEC12G1H Servo Motor 200V 11000W
The Panasonic MINAS A5 MDMEC12G1H is a high-performance servo motor designed to meet the rigorous demands of industrial automation. This model operates at a voltage of 200V and delivers an impressive 11000W of power, making it an ideal choice for applications requiring precision, reliability, and high torque output.
Key Features:
- Powerful Performance: With a robust output of 11000W, the MDMEC12G1H provides exceptional torque and speed, facilitating superior control and efficiency in various industrial tasks.
- Advanced Control Technology: Equipped with Panasonic's advanced MINAS A5 drive technology, this servo motor ensures precise positioning and smooth operation, reducing mechanical wear and enhancing system longevity.
- Enhanced Durability: Built with high-quality materials and a rigorous manufacturing process, the MDMEC12G1H is engineered to withstand demanding environments and prolonged usage, ensuring reliable performance and minimal maintenance.
- Compact Design: The motor’s compact and lightweight design allows for easy integration into a wide range of machinery, optimizing space utilization and simplifying installation processes.
- Versatile Applications: Ideal for use in CNC machines, robotics, packaging machinery, and other automation systems where high power and accuracy are critical.
Specifications:
- Model: MINAS A5 MDMEC12G1H
- Voltage: 200V
- Power Output: 11000W
- Motor Type: AC Servo Motor
- Control Method: Digital Feedback Control
- Mounting Type: Flange Mount
- Protection Class: IP65 (dust-tight and protected against water jets)
Applications:
The Panasonic MINAS A5 MDMEC12G1H servo motor is engineered for high-precision and high-torque applications. It is particularly suitable for advanced manufacturing environments, including:
- CNC Machining Centers
- Automated Assembly Lines
- Robotic Arms
- Packaging Systems
- Material Handling Equipment
Experience enhanced performance and reliability with the Panasonic MINAS A5 MDMEC12G1H servo motor. Its cutting-edge technology and robust construction make it a superior choice for modern industrial automation.
Panasonic MINAS A5 Family MDMEC12G1H Servo Motor 200V 11000W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MDMEC12G1H |
| Details | Middle inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MDME Series |
| Type | Middle inertia |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 220 mm sq. |
| Flange sq. dimension (Unit:mm) | 220 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 17 |
| Voltage specifications | 200 V |
| Rated output | 11000 W |
| Rated current (A (rms)) | 54.2 |
| Holding brake | with |
| Mass (kg) | 58.9 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 70.0 |
| Momentary Max. peak torque (N ⋅ m) | 175 |
| Max. current (A (o-p)) | 203 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0PM20058 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 1500 |
| Rated rotational Max. speed (r/min) | 2000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 220 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 100 or more |
| Engaging time (ms) | 300 or less |
| Releasing time (ms) | 140 or less |
| Exciting current (DC) (A) | 1.08 |
| Releasing voltage (DC) (V) | 2 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 4508 |
| During assembly: Thrust load A-direction (N) | 1470 |
| During assembly: Thrust load B-direction (N) | 1764 |
| During operation: Radial load P-direction (N) | 2254 |
| During operation: Thrust load A, B-direction (N) | 686 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
