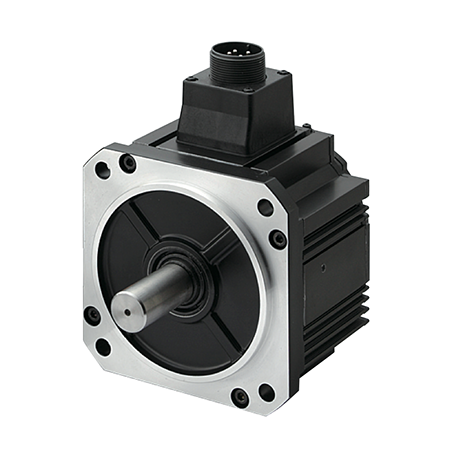

Panasonic MINAS A5 MGME602S1C Servo Motor 200V 6000W
$0.00
含稅
Product DescriptionPanasonic MINAS A5 MGME602S1C Servo Motor 200V 6000WThe Panasonic MINAS A5 MGME602S1C Servo Motor is a high-performance, precision-engineered motor designed for demanding industrial applications. With a power rating of 6000W and operating voltage of 200V, this servo motor provides exceptional torque and speed control, ensuring optimal performance for automation systems and machinery.Key Features:High Power Output: Delivers up to 6000W of power, ideal for applications requiring substantial torque and speed.200V Operation: Designed for use in systems operating at 200V, offering reliable and consistent performance in various industrial settings.Advanced Control Technology: Incorporates Panasonic’s cutting-edge MINAS A5 technology for precise control and efficient operation.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MGME602S1C Servo Motor 200V 6000W
The Panasonic MINAS A5 MGME602S1C Servo Motor is a high-performance, precision-engineered motor designed for demanding industrial applications. With a power rating of 6000W and operating voltage of 200V, this servo motor provides exceptional torque and speed control, ensuring optimal performance for automation systems and machinery.
Key Features:
- High Power Output: Delivers up to 6000W of power, ideal for applications requiring substantial torque and speed.
- 200V Operation: Designed for use in systems operating at 200V, offering reliable and consistent performance in various industrial settings.
- Advanced Control Technology: Incorporates Panasonic’s cutting-edge MINAS A5 technology for precise control and efficient operation.
- Enhanced Durability: Built with robust materials and engineering to withstand the rigors of industrial environments and ensure long-term reliability.
- Compact Design: Despite its high power output, the motor’s compact form factor allows for integration into space-constrained applications.
Applications:
The MGME602S1C is suitable for use in a wide range of industrial applications, including:
- CNC machinery
- Robotics
- Packaging equipment
- Assembly lines
- Material handling systems
Specifications:
- Model: MGME602S1C
- Power: 6000W
- Voltage: 200V
- Type: Servo Motor
- Series: MINAS A5
Benefits:
- Precision and Reliability: Achieve high precision in control with Panasonic’s advanced servo technology, ensuring consistent and reliable operation.
- Energy Efficiency: Designed for optimal energy usage, contributing to cost savings and reduced environmental impact.
- Versatility: Adaptable to a variety of industrial applications, enhancing flexibility in system design.
The Panasonic MINAS A5 MGME602S1C Servo Motor is engineered to meet the highest standards of performance and durability, making it a superior choice for demanding applications that require precision and reliability.
Panasonic MINAS A5 Family MGME602S1C Servo Motor 200V 6000W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MGME602S1C |
| Details | Middle inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MGME Series |
| Type | Middle inertia |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 176 mm sq. |
| Flange sq. dimension (Unit:mm) | 176 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 9.0 |
| Voltage specifications | 200 V |
| Rated output | 6000 W |
| Rated current (A (rms)) | 38.8 |
| Holding brake | without |
| Mass (kg) | 36.4 |
| Oil seal | with |
| Shaft | Round |
| Rated torque (N ⋅ m) | 57.3 |
| Momentary Max. peak torque (N ⋅ m) | 143 |
| Max. current (A (o-p)) | 149 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 x 4 in parallel |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 1000 |
| Rated rotational Max. speed (r/min) | 2000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 101 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 17-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 131072 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 2058 |
| During assembly: Thrust load A-direction (N) | 980 |
| During assembly: Thrust load B-direction (N) | 1176 |
| During operation: Radial load P-direction (N) | 1764 |
| During operation: Thrust load A, B-direction (N) | 588 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MGME602S1C
具體參考
- UPC
- MGME602S1C
- MPN
- MGME602S1C
