  • Panasonic MINAS A5 MGME604G1G Servo Motor 400V 6000W | High-Performance Industrial Motor

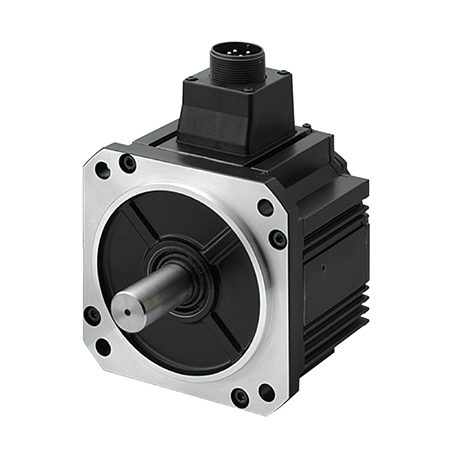

Panasonic MINAS A5 MGME604G1G Servo Motor 400V 6000W

$0.00
含稅
Product Description:Panasonic MINAS A5 MGME604G1G Servo Motor 400V 6000WThe Panasonic MINAS A5 MGME604G1G Servo Motor is a high-performance motor designed for demanding industrial applications requiring precision and reliability. Operating at 400V with a robust 6000W power rating, this servo motor is engineered to deliver exceptional torque and speed control, making it ideal for high-speed automation and motion control systems.Key Features:High Power Output: With a 6000W power rating, the MGME604G1G offers significant torque and power for demanding applications, ensuring smooth and efficient operation.Voltage Rating: Designed for a 400V power supply, the motor is optimized for stability and performance in high-voltage environments.Advanced Control: The MINAS A5 series features advanced fee
數量

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Description:

Panasonic MINAS A5 MGME604G1G Servo Motor 400V 6000W

The Panasonic MINAS A5 MGME604G1G Servo Motor is a high-performance motor designed for demanding industrial applications requiring precision and reliability. Operating at 400V with a robust 6000W power rating, this servo motor is engineered to deliver exceptional torque and speed control, making it ideal for high-speed automation and motion control systems.

Key Features:

  • High Power Output: With a 6000W power rating, the MGME604G1G offers significant torque and power for demanding applications, ensuring smooth and efficient operation.
  • Voltage Rating: Designed for a 400V power supply, the motor is optimized for stability and performance in high-voltage environments.
  • Advanced Control: The MINAS A5 series features advanced feedback and control systems, providing precise position, velocity, and torque control.
  • Durable Construction: Built with high-quality materials and advanced engineering, this servo motor is designed to withstand harsh industrial conditions and deliver reliable performance over extended periods.
  • Compact Design: Despite its powerful output, the motor's compact design ensures ease of integration into various machinery and systems.
  • Energy Efficiency: The servo motor is engineered for energy-efficient operation, reducing overall energy consumption and operating costs.

Applications:

The Panasonic MINAS A5 MGME604G1G Servo Motor is suitable for a wide range of applications, including:

  • Automated Production Lines: Ideal for use in robotics and automated machinery where precise control is crucial.
  • CNC Machines: Perfect for high-precision CNC equipment requiring accurate motion and control.
  • Packaging Machinery: Suitable for high-speed packaging systems demanding reliable performance.
  • Material Handling Systems: Effective in conveyor systems and other material handling equipment where robust performance is needed.

Technical Specifications:

  • Power Rating: 6000W
  • Voltage: 400V
  • Control Type: Advanced digital servo control
  • Feedback Type: High-resolution encoder
  • Cooling Method: Air-cooled
  • Mounting Type: Flange mount

Benefits:

  • Enhanced Performance: The high power output and precise control capabilities ensure enhanced performance and productivity.
  • Reliability: The robust construction and advanced control systems contribute to reliable operation even in demanding environments.
  • Efficiency: Energy-efficient design leads to lower operational costs and reduced environmental impact.

Manufacturer: Panasonic

Model: MINAS A5 MGME604G1G

Panasonic MINAS A5 Family MGME604G1G Servo Motor 400V 6000W

Spec Detail

ItemSpecifications
Part NumberMGME604G1G
DetailsMiddle inertia, Connector type, IP67
Family NameMINAS A5
SeriesMGME Series
TypeMiddle inertia
EnclosureIP67
About EnclosureExcept rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
Environmental ConditionsFor more details, please refer to the instruction manual.
Flange sq. dimension176 mm sq.
Flange sq. dimension (Unit:mm)176
Motor lead-out configurationConnector
Motor encoder connectorConnector
Power supply capacity (kVA)9.0
Voltage specifications400 V
Rated output6000 W
Rated current (A (rms))19.4
Holding brakewithout
Mass (kg)36.4
Oil sealwith
ShaftKey-way
Rated torque (N ⋅ m)57.3
Momentary Max. peak torque (N ⋅ m)143
Max. current (A (o-p))74
Regenerative brake frequency (times/min)Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0PM20049 x 3 in parallel
About regenerative brake frequencyPlease refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)1000
Rated rotational Max. speed (r/min)2000
Moment of inertia of rotor ( x10-4 kg ⋅ m²)101
Recommended moment of inertia ratio of the load and the rotor10 times or less
About recommended moment of inertia ratio of the load and the rotorPlease refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications20-bit Incremental system
Rotary encoder: Resolution1048576


Permissible load

ItemSpecifications
During assembly: Radial load P-direction (N)2058
During assembly: Thrust load A-direction (N)980
During assembly: Thrust load B-direction (N)1176
During operation: Radial load P-direction (N)1764
During operation: Thrust load A, B-direction (N)588
About permissible loadFor details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".
