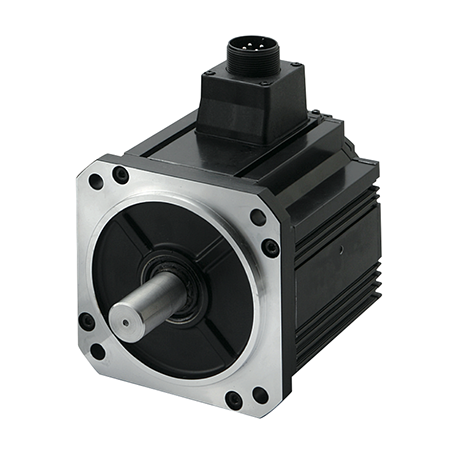

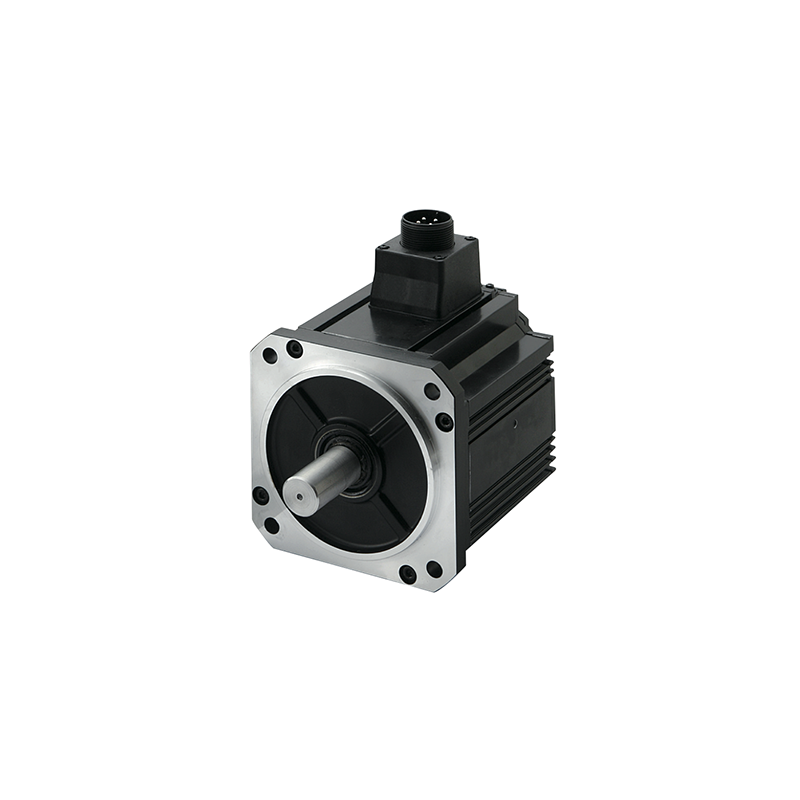

Panasonic MINAS A5 MHME304GCH Servo Motor 400V 3000W
$0.00
含稅
Product DescriptionPanasonic MINAS A5 MHME304GCH Servo Motor - 400V 3000WThe Panasonic MINAS A5 MHME304GCH Servo Motor represents the pinnacle of precision and performance in industrial motion control technology. Designed for high-demand applications, this advanced servo motor offers unparalleled accuracy, reliability, and efficiency.Key Specifications:Model: MHME304GCHVoltage: 400V ACPower Output: 3000WType: Servo MotorControl System: Closed-loop, high-performanceMounting Type: Flange mountedFeedback Device: Incremental encoderThermal Class: F (155°C)Features:High Torque and Speed: Delivers exceptional torque and speed characteristics, ensuring optimal performance in dynamic environments.Precision Control: Equipped with advanced feedback and control systems for precise motion control, min
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MHME304GCH Servo Motor - 400V 3000W
The Panasonic MINAS A5 MHME304GCH Servo Motor represents the pinnacle of precision and performance in industrial motion control technology. Designed for high-demand applications, this advanced servo motor offers unparalleled accuracy, reliability, and efficiency.
Key Specifications:
- Model: MHME304GCH
- Voltage: 400V AC
- Power Output: 3000W
- Type: Servo Motor
- Control System: Closed-loop, high-performance
- Mounting Type: Flange mounted
- Feedback Device: Incremental encoder
- Thermal Class: F (155°C)
Features:
- High Torque and Speed: Delivers exceptional torque and speed characteristics, ensuring optimal performance in dynamic environments.
- Precision Control: Equipped with advanced feedback and control systems for precise motion control, minimizing errors and enhancing accuracy.
- Durability: Constructed with robust materials and engineered for long-lasting reliability, even in the most demanding conditions.
- Compact Design: Space-efficient design that integrates seamlessly into various applications, providing flexibility in installation.
- Advanced Technology: Incorporates Panasonic's latest technological advancements for superior energy efficiency and reduced operational costs.
Applications: Ideal for use in robotics, CNC machinery, packaging equipment, and other high-precision applications where reliability and performance are critical.
Benefits:
- Enhanced Productivity: Improve overall system performance with precise and consistent motor control.
- Reduced Downtime: Minimize maintenance needs with a durable and reliable design.
- Energy Efficiency: Lower operational costs through advanced energy-saving technologies.
The Panasonic MINAS A5 MHME304GCH Servo Motor is engineered to meet the rigorous demands of modern industrial applications, making it a top choice for engineers and technicians seeking high-performance motion control solutions.
Panasonic MINAS A5 Family MHME304GCH Servo Motor 400V 3000W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHME304GCH |
| Details | High inertia, Connector type, IP65 |
| Family Name | MINAS A5 |
| Series | MHME Series |
| Type | High inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 176 mm sq. |
| Flange sq. dimension (Unit:mm) | 176 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 4.5 |
| Voltage specifications | 400 V |
| Rated output | 3000 W |
| Rated current (A (rms)) | 8.0 |
| Holding brake | with |
| Mass (kg) | 19.2 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 14.3 |
| Momentary Max. peak torque (N ⋅ m) | 43.0 |
| Max. current (A (o-p)) | 34 |
| Regenerative brake frequency (times/min) | Without option :19 With option :142 Option (External regenerative resistor) Part No. : DV0PM20049 x 2 in parallel |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 2000 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 92.1 |
| Recommended moment of inertia ratio of the load and the rotor | 5 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 24.5 or more |
| Engaging time (ms) | 80 or less |
| Releasing time (ms) | 25 or less |
| Exciting current (DC) (A) | 1.3 ± 10% |
| Releasing voltage (DC) (V) | 2 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 1666 |
| During assembly: Thrust load A-direction (N) | 784 |
| During assembly: Thrust load B-direction (N) | 980 |
| During operation: Radial load P-direction (N) | 784 |
| During operation: Thrust load A, B-direction (N) | 343 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MHME304GCH
