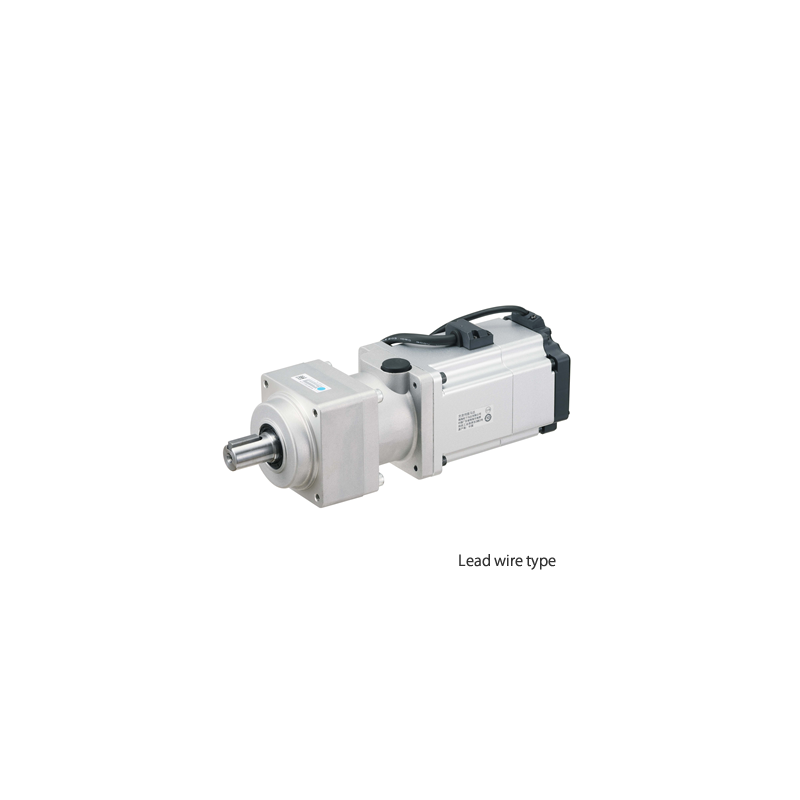

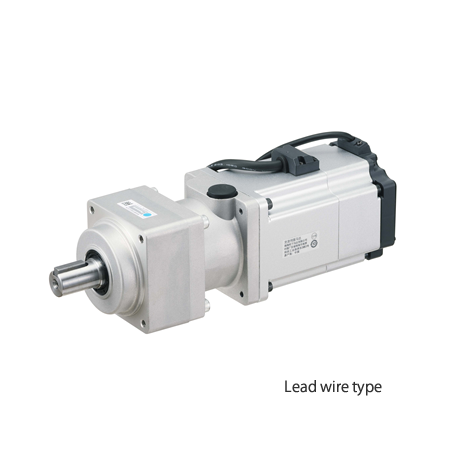

Panasonic MINAS A6 Family MHMF021L84N Servo Motor - 100V 200W High-Precision AC Motor
$0.00
含稅
Panasonic MINAS A6 Family MHMF021L84N Servo Motor - 100V, 200WOverviewElevate your automation and control systems with the Panasonic MINAS A6 Family MHMF021L84N Servo Motor. This high-performance servo motor, operating at 100V and 200W, combines advanced technology with exceptional reliability, making it an ideal choice for a wide range of industrial applications.Key FeaturesHigh Precision and Performance: The Panasonic MINAS A6 MHMF021L84N offers superior torque and speed control, thanks to its precision-engineered components and advanced feedback systems. With a nominal power of 200W, it ensures smooth and accurate motion for critical applications.Compact and Robust Design: Designed with a space-saving form factor, this servo motor delivers impressive power density without compromising o
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Panasonic MINAS A6 Family MHMF021L84N Servo Motor - 100V, 200W
Overview
Elevate your automation and control systems with the Panasonic MINAS A6 Family MHMF021L84N Servo Motor. This high-performance servo motor, operating at 100V and 200W, combines advanced technology with exceptional reliability, making it an ideal choice for a wide range of industrial applications.
Key Features
- High Precision and Performance: The Panasonic MINAS A6 MHMF021L84N offers superior torque and speed control, thanks to its precision-engineered components and advanced feedback systems. With a nominal power of 200W, it ensures smooth and accurate motion for critical applications.
- Compact and Robust Design: Designed with a space-saving form factor, this servo motor delivers impressive power density without compromising on durability. Its robust construction withstands harsh operating environments, ensuring long-term reliability.
- Advanced Control Capabilities: Equipped with cutting-edge control algorithms and an integrated servo amplifier, the MINAS A6 series provides excellent dynamic response and precise position control, enhancing overall system performance.
- Enhanced Efficiency: The motor's high-efficiency design minimizes energy consumption and heat generation, contributing to lower operational costs and extended service life.
- User-Friendly Integration: Featuring intuitive setup and configuration options, the MHMF021L84N simplifies integration into various control systems. Its compatibility with a wide range of PLCs and controllers streamlines implementation in diverse applications.
Applications
The Panasonic MINAS A6 Family MHMF021L84N Servo Motor is suited for numerous industrial and automation tasks, including:
- Robotics: Ideal for precise control in robotic arms and automated machinery.
- CNC Machines: Provides accurate motion control for CNC applications, enhancing machining precision.
- Conveyor Systems: Ensures reliable performance in conveyor belts and material handling systems.
- Packaging Equipment: Delivers consistent and accurate movement for high-speed packaging processes.
Specifications
- Model: MHMF021L84N
- Voltage: 100V
- Power: 200W
- Type: AC Servo Motor
- Feedback Type: Encoder
- Compatibility: Panasonic MINAS A6 Series Controllers
Why Choose Panasonic MINAS A6?
Panasonic's MINAS A6 series is renowned for its advanced technology and unparalleled reliability. By choosing the MHMF021L84N Servo Motor, you invest in a solution that combines precision, efficiency, and durability, backed by Panasonic's extensive expertise in motion control technology.
For more information or to request a quote, contact our sales team today.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHMF021L84N |
| Details | Servo motor with Gear reducer, High inertia, Lead wire type, IP44 |
| Family Name | MINAS A6 |
| Series | MHMF Series |
| Type | High inertia |
| Enclosure | IP44 |
| About Enclosure | at gear reducer |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.5 |
| Voltage specifications | 100 V |
| Rated output | 200 W |
| Rated current (A (rms)) | 2.1 |
| Holding brake | with |
| Mass (kg) | 3.2 |
| Gear reduction ratio | 1/25 |
| Gear type | For high precision |
| Shaft | Key-way, center tap |
| [About Characteristic of Gear Reducer] | The output, rated rotational speed, maximum rotational speed, rated torque, instantaneous maximum torque of the geared servomotor are values on the output shaft of the gear. |
| Output (W) | 163 |
| Rated torque (N ⋅ m) | 13.0 |
| Continuous stall torque (N ⋅ m) | 0.76 |
| Momentary Max. peak torque (N ⋅ m) | 47.9 |
| Max. current (A (o-p)) | 10.4 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| Rated rotational speed (r/min) | 120 |
| Rated rotational Max. speed (r/min) | 260 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.603 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or smaller |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 1.6 or more |
| Engaging time (ms) | 50 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.36 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| Radial load (N) | 1670 |
| Thrust load (N) | 833 |
MHMF021L84N
