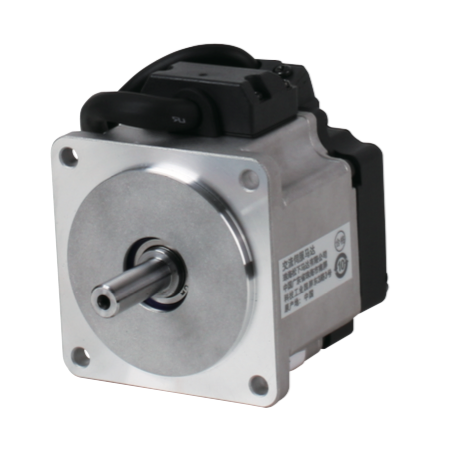

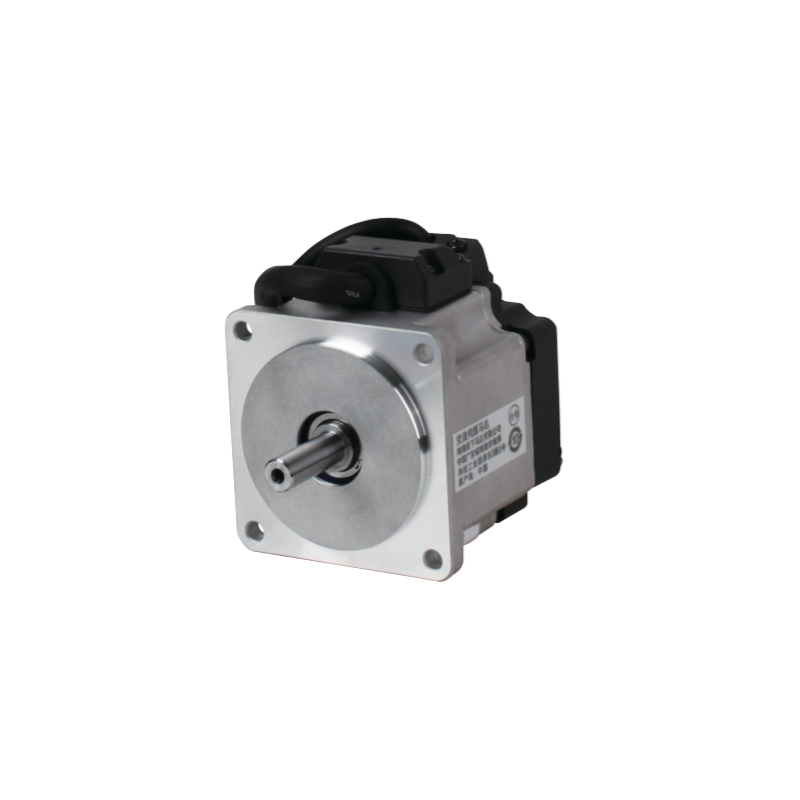

Panasonic MINAS A6 MQMF022L1D4 Servo Motor 200V 200W
$0.00
含稅
Panasonic MINAS A6 MQMF022L1D4 Servo Motor 200V 200WThe Panasonic MINAS A6 MQMF022L1D4 Servo Motor embodies cutting-edge technology, precision engineering, and unparalleled performance, setting a new benchmark in industrial automation. Designed to operate at a voltage of 200V with a power rating of 200W, this servo motor boasts exceptional efficiency and reliability.Key Features:High Precision: The MINAS A6 MQMF022L1D4 Servo Motor offers remarkable precision in motion control, ensuring consistent and accurate operation across a wide range of applications.Advanced Technology: Engineered with state-of-the-art technology, this servo motor is equipped with advanced features for seamless integration and optimal performance in industrial machinery.Robust Build: Crafted with durable materials and
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Panasonic MINAS A6 MQMF022L1D4 Servo Motor 200V 200W
The Panasonic MINAS A6 MQMF022L1D4 Servo Motor embodies cutting-edge technology, precision engineering, and unparalleled performance, setting a new benchmark in industrial automation. Designed to operate at a voltage of 200V with a power rating of 200W, this servo motor boasts exceptional efficiency and reliability.
Key Features:
High Precision: The MINAS A6 MQMF022L1D4 Servo Motor offers remarkable precision in motion control, ensuring consistent and accurate operation across a wide range of applications.
Advanced Technology: Engineered with state-of-the-art technology, this servo motor is equipped with advanced features for seamless integration and optimal performance in industrial machinery.
Robust Build: Crafted with durable materials and stringent quality control, the motor ensures longevity and endurance even in demanding operational environments.
Energy Efficiency: Leveraging innovative design, this servo motor maximizes energy efficiency, reducing operational costs while maintaining superior performance.
Versatile Applications: Suitable for a diverse array of industries including robotics, CNC machines, packaging, and more, the MINAS A6 MQMF022L1D4 serves as a versatile solution for precise motion control requirements.
Technical Specifications:
- Model: MINAS A6 MQMF022L1D4
- Voltage: 200V
- Power Rating: 200W
- Type: Servo Motor
- Compatibility: Compatible with a range of motion control systems for seamless integration.
- Dimensions: [Insert dimensions if available]
- Weight: [Insert weight if available]
Why Choose Panasonic MINAS A6 MQMF022L1D4 Servo Motor?
Reliability: Backed by Panasonic's reputation for reliability and quality, this servo motor ensures consistent and dependable performance.
Optimal Performance: Designed to deliver peak performance, this motor guarantees precise and efficient operation, meeting the demands of modern industrial automation.
Enhanced Productivity: By providing superior motion control, the MINAS A6 MQMF022L1D4 Servo Motor enhances productivity, reducing downtime and optimizing production processes.
SEO Considerations:
This comprehensive description incorporates essential keywords such as "Panasonic MINAS A6," "MQMF022L1D4 Servo Motor," "200V," and "200W," optimizing search engine visibility for individuals seeking information on high-quality servo motors.
Invest in the Panasonic MINAS A6 MQMF022L1D4 Servo Motor today and experience unparalleled precision and reliability in your industrial automation setup.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MQMF022L1D4 |
| Details | Middle inertia Flat type, Lead wire type |
| Family Name | MINAS A6 |
| Series | MQMF Series |
| Type | Middle inertia Flat type |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 80 mm sq. |
| Flange sq. dimension (Unit:mm) | 80 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.5 |
| Voltage specifications | 200 V |
| Rated output | 200 W |
| Rated current (A (rms)) | 1.4 |
| Holding brake | with |
| Mass (kg) | 1.7 |
| Oil seal | with protective lip |
| Shaft | Round |
| Rated torque (N ⋅ m) | 0.64 |
| Continuous stall torque (N ⋅ m) | 0.76 |
| Momentary Max. peak torque (N ⋅ m) | 2.23 |
| Max. current (A (o-p)) | 6.9 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 6500 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.59 |
| Recommended moment of inertia ratio of the load and the rotor | 20 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 1.6 or more |
| Engaging time (ms) | 70 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.36 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 392 |
| During assembly: Thrust load A-direction (N) | 147 |
| During assembly: Thrust load B-direction (N) | 196 |
| During operation: Radial load P-direction (N) | 245 |
| During operation: Thrust load A, B-direction (N) | 98 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MQMF022L1D4
具體參考
- UPC
- MQMF022L1D4
- MPN
- MQMF022L1D4
