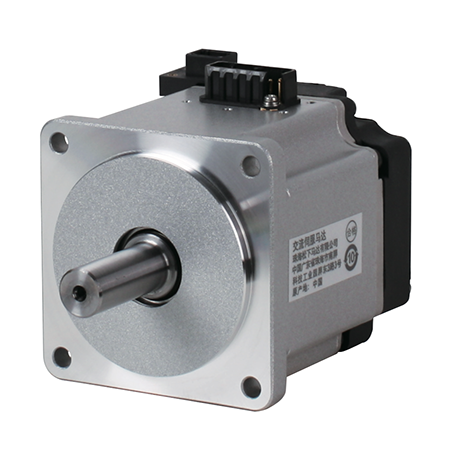

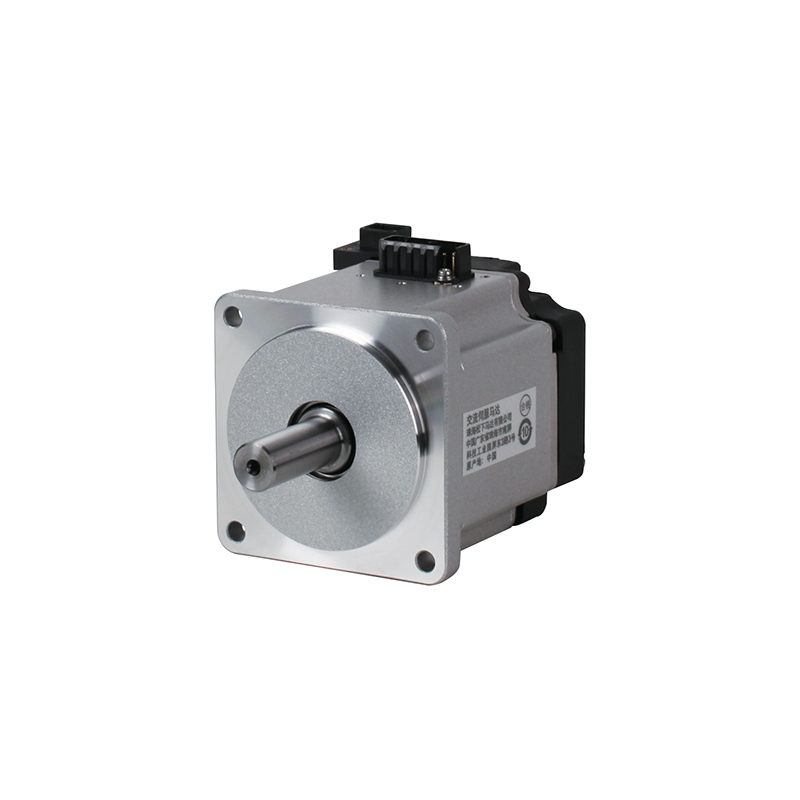

Panasonic MINAS A5 MSMD042G31N Servo Motor 200V 400W
$0.00
含稅
Product DescriptionPanasonic MINAS A5 MSMD042G31N Servo Motor 200V 400WThe Panasonic MINAS A5 MSMD042G31N is a high-performance servo motor designed to meet the rigorous demands of industrial automation applications. Operating at a nominal voltage of 200V and delivering a power output of 400W, this advanced servo motor excels in providing precise control and exceptional reliability.Technical Specifications:Model: MSMD042G31NType: Servo MotorVoltage: 200VPower Output: 400WCurrent Rating: 2.3A (RMS)Rated Speed: 3000 RPMTorque: 1.27 Nm (Nominal)Resolution: 131072 P/RFeedback Device: Incremental EncoderMounting Type: Flange MountInsulation Class: FProtection Rating: IP65Dimensions: 40 x 40 x 95 mm (W x D x H)Weight: 1.5 kgKey Features:High Precision and Efficiency: The MSMD042G31N integrates a
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MSMD042G31N Servo Motor 200V 400W
The Panasonic MINAS A5 MSMD042G31N is a high-performance servo motor designed to meet the rigorous demands of industrial automation applications. Operating at a nominal voltage of 200V and delivering a power output of 400W, this advanced servo motor excels in providing precise control and exceptional reliability.
Technical Specifications:
- Model: MSMD042G31N
- Type: Servo Motor
- Voltage: 200V
- Power Output: 400W
- Current Rating: 2.3A (RMS)
- Rated Speed: 3000 RPM
- Torque: 1.27 Nm (Nominal)
- Resolution: 131072 P/R
- Feedback Device: Incremental Encoder
- Mounting Type: Flange Mount
- Insulation Class: F
- Protection Rating: IP65
- Dimensions: 40 x 40 x 95 mm (W x D x H)
- Weight: 1.5 kg
Key Features:
- High Precision and Efficiency: The MSMD042G31N integrates advanced control algorithms for precise positioning and smooth operation, making it ideal for high-precision applications.
- Robust Design: Engineered with a high protection rating of IP65, this servo motor is designed to withstand harsh environments and ensure durability.
- Compact and Lightweight: The compact form factor and lightweight design of the motor facilitate easy integration into space-constrained applications without compromising performance.
- Advanced Feedback System: Equipped with a high-resolution incremental encoder, this motor provides accurate feedback and enhances control over motion tasks.
- Versatile Applications: Suitable for a wide range of industrial applications including robotics, CNC machinery, and automated production systems.
Applications:
The Panasonic MINAS A5 MSMD042G31N servo motor is ideal for use in various automation systems where high precision and reliability are paramount. Typical applications include:
- Robotics and robotic arms
- CNC machine tools
- Automated assembly lines
- Packaging machinery
- Laboratory automation
Installation and Maintenance:
For optimal performance, ensure proper installation in accordance with the provided guidelines. Regular maintenance checks are recommended to sustain operational efficiency and extend the motor's lifespan.
Compatibility:
This servo motor is compatible with Panasonic's A5 series controllers and drive systems, providing a seamless integration experience for enhanced system performance.
Panasonic MINAS A5 Family MSMD042G31N Servo Motor 200V 400W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSMD042G31N |
| Details | Servo motor with Gear reducer, Low inertia, Lead wire type, IP44 |
| Family Name | MINAS A5 |
| Series | MSMD Series |
| Type | Low inertia |
| Enclosure | IP44 |
| About Enclosure | at gear reducer |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.9 |
| Voltage specifications | 200 V |
| Rated output | 400 W |
| Rated current (A (rms)) | 2.6 |
| Holding brake | without |
| Mass (kg) | 2.9 |
| Gear reduction ratio | 1/5 |
| Gear type | For high precision |
| Shaft | Key-way |
| [About Characteristic of Gear Reducer] | The output, rated rotational speed, maximum rotational speed, rated torque, instantaneous maximum torque of the geared servomotor are values on the output shaft of the gear. |
| Output (W) | 340 |
| Rated torque (N ⋅ m) | 5.39 |
| Momentary Max. peak torque (N ⋅ m) | 16.2 |
| Max. current (A (o-p)) | 11.0 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| Rated rotational speed (r/min) | 600 |
| Rated rotational Max. speed (r/min) | 1000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.623 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or smaller |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Permissible load
| Item | Specifications |
|---|---|
| Radial load (N) | 980 |
| Thrust load (N) | 490 |
