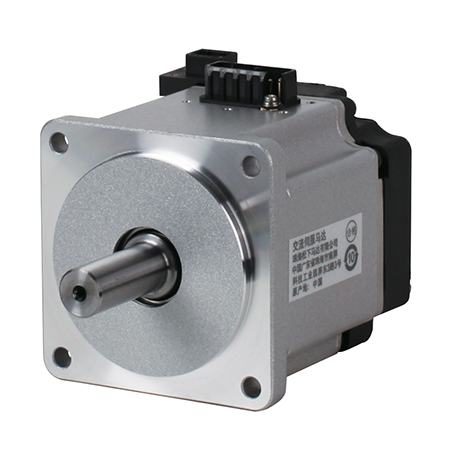

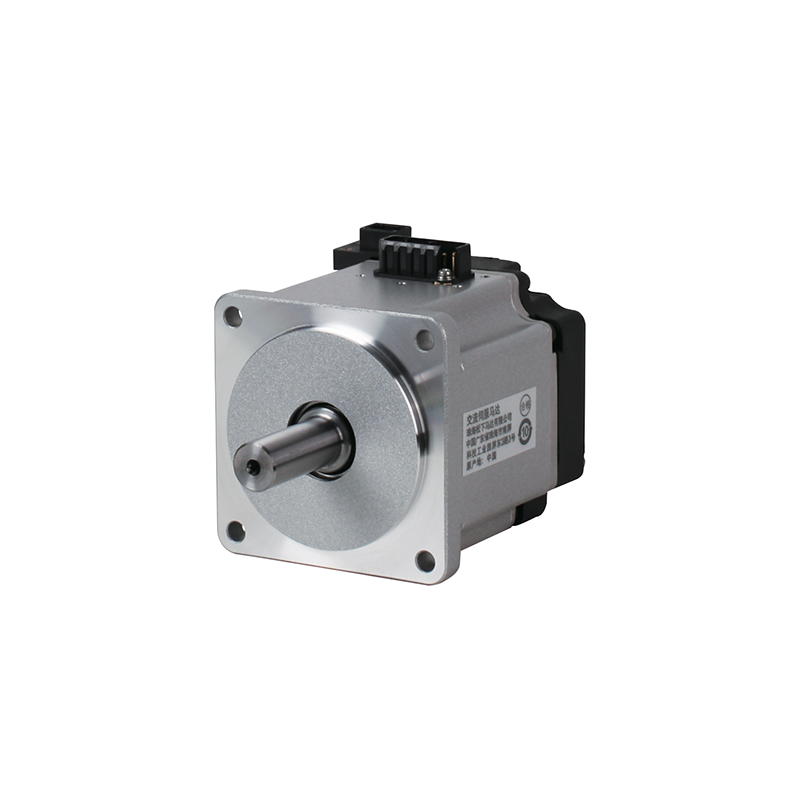

Panasonic MINAS A5 MSMD042S32N Servo Motor 200V 400W
$0.00
含稅
Product DescriptionPanasonic MINAS A5 MSMD042S32N Servo Motor 200V 400WThe Panasonic MINAS A5 MSMD042S32N Servo Motor exemplifies precision, reliability, and advanced engineering in motion control. Designed for high-performance applications, this 200V, 400W servo motor delivers exceptional torque and speed control, making it ideal for demanding industrial environments and automation systems.Key Features:High Torque Density: The MSMD042S32N provides superior torque output relative to its size, ensuring robust performance in compact spaces.Advanced Feedback System: Equipped with a high-resolution encoder, the servo motor offers precise position and speed feedback, enhancing accuracy and control.Efficient Operation: The motor's advanced design optimizes energy efficiency, reducing operational
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MSMD042S32N Servo Motor 200V 400W
The Panasonic MINAS A5 MSMD042S32N Servo Motor exemplifies precision, reliability, and advanced engineering in motion control. Designed for high-performance applications, this 200V, 400W servo motor delivers exceptional torque and speed control, making it ideal for demanding industrial environments and automation systems.
Key Features:
- High Torque Density: The MSMD042S32N provides superior torque output relative to its size, ensuring robust performance in compact spaces.
- Advanced Feedback System: Equipped with a high-resolution encoder, the servo motor offers precise position and speed feedback, enhancing accuracy and control.
- Efficient Operation: The motor's advanced design optimizes energy efficiency, reducing operational costs and extending service life.
- Compact Design: Its compact form factor allows for easy integration into a variety of applications without compromising performance.
- Durability: Built with high-quality materials and rigorous testing, the MSMD042S32N is designed to withstand harsh industrial conditions and ensure long-term reliability.
Applications:
The Panasonic MINAS A5 MSMD042S32N is suitable for a range of applications including:
- Robotic Systems: Ideal for precise control in robotic arms and automation processes.
- CNC Machinery: Enhances performance in CNC machines requiring accurate and reliable motion.
- Conveyor Systems: Perfect for use in conveyor systems where precise control of movement is essential.
- Packaging Equipment: Supports efficient and accurate operation in packaging and material handling systems.
Specifications:
- Voltage: 200V
- Power Rating: 400W
- Encoder Type: High-resolution encoder
- Motor Type: Servo Motor
- Compliance: Meets international standards for safety and performance
The Panasonic MINAS A5 MSMD042S32N Servo Motor is engineered to meet the highest standards of performance and reliability, making it a superior choice for your motion control needs.
Panasonic MINAS A5 Family MSMD042S32N Servo Motor 200V 400W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSMD042S32N |
| Details | Servo motor with Gear reducer, Low inertia, Lead wire type, IP44 |
| Family Name | MINAS A5 |
| Series | MSMD Series |
| Type | Low inertia |
| Enclosure | IP44 |
| About Enclosure | at gear reducer |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.9 |
| Voltage specifications | 200 V |
| Rated output | 400 W |
| Rated current (A (rms)) | 2.6 |
| Holding brake | without |
| Mass (kg) | 2.9 |
| Gear reduction ratio | 1/9 |
| Gear type | For high precision |
| Shaft | Key-way |
| [About Characteristic of Gear Reducer] | The output, rated rotational speed, maximum rotational speed, rated torque, instantaneous maximum torque of the geared servomotor are values on the output shaft of the gear. |
| Output (W) | 332 |
| Rated torque (N ⋅ m) | 9.51 |
| Momentary Max. peak torque (N ⋅ m) | 28.5 |
| Max. current (A (o-p)) | 11.0 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| Rated rotational speed (r/min) | 333 |
| Rated rotational Max. speed (r/min) | 555 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.528 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or smaller |
| Rotary encoder: specifications | 17-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 131072 |
Permissible load
| Item | Specifications |
|---|---|
| Radial load (N) | 1180 |
| Thrust load (N) | 588 |
