Panasonic MINAS A5 MSME021S1Q Servo Motor 100V 200W | High Precision & Reliable Performance
search
  • Panasonic MINAS A5 MSME021S1Q Servo Motor 100V 200W | High Precision & Reliable Performance

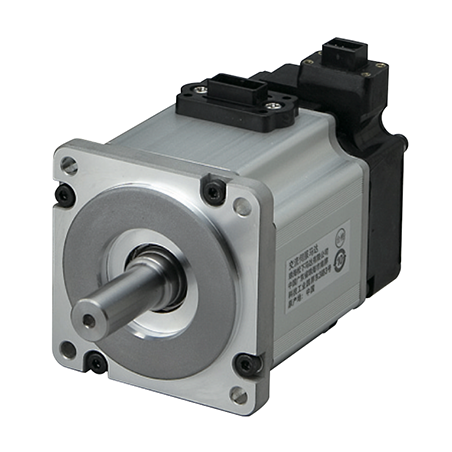

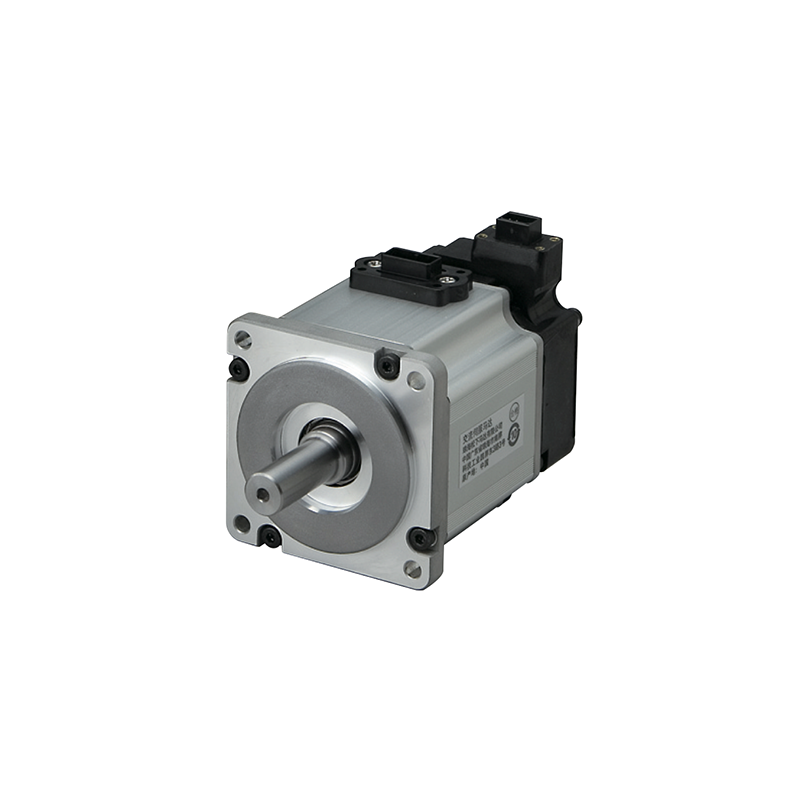

Panasonic MINAS A5 MSME021S1Q Servo Motor 100V 200W

$0.00
含稅
Product DescriptionPanasonic MINAS A5 MSME021S1Q Servo Motor 100V 200WElevate the precision and efficiency of your automation systems with the Panasonic MINAS A5 MSME021S1Q Servo Motor. Engineered for high-performance applications, this 100V 200W servo motor combines advanced technology with exceptional reliability, ensuring optimal operation for a range of industrial tasks.Key Features:High Efficiency and Performance: The MINAS A5 MSME021S1Q operates at 100V and delivers a power output of 200W, providing robust torque and speed capabilities for demanding applications.Precision Control: With advanced digital signal processing, this servo motor offers precise control over position, velocity, and torque, making it ideal for applications requiring high accuracy and repeatability.Compact and R
數量

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Description

Panasonic MINAS A5 MSME021S1Q Servo Motor 100V 200W

Elevate the precision and efficiency of your automation systems with the Panasonic MINAS A5 MSME021S1Q Servo Motor. Engineered for high-performance applications, this 100V 200W servo motor combines advanced technology with exceptional reliability, ensuring optimal operation for a range of industrial tasks.

Key Features:

  • High Efficiency and Performance: The MINAS A5 MSME021S1Q operates at 100V and delivers a power output of 200W, providing robust torque and speed capabilities for demanding applications.
  • Precision Control: With advanced digital signal processing, this servo motor offers precise control over position, velocity, and torque, making it ideal for applications requiring high accuracy and repeatability.
  • Compact and Robust Design: Designed with a compact form factor, the MINAS A5 integrates seamlessly into space-constrained environments while ensuring durability and long service life.
  • Enhanced Feedback Mechanism: Equipped with a high-resolution encoder, this servo motor delivers real-time feedback, ensuring accurate motion control and reducing the likelihood of errors.
  • Versatile Applications: Suitable for a wide range of industrial applications, including robotics, CNC machinery, and automation systems, thanks to its versatile performance and compatibility with various control systems.

Technical Specifications:

  • Voltage: 100V
  • Power Output: 200W
  • Motor Type: Servo Motor
  • Encoder Resolution: High-resolution feedback for precise control
  • Dimensions: Compact design for easy integration
  • Applications: Robotics, CNC machinery, automation systems

Applications:

The Panasonic MINAS A5 MSME021S1Q is ideal for applications where high precision and reliable performance are critical. Common use cases include:

  • Robotics: For precise control of robotic arms and movements.
  • CNC Machining: Enhancing the accuracy and repeatability of CNC operations.
  • Automated Systems: Improving efficiency and accuracy in various automated processes.

Why Choose Panasonic MINAS A5 MSME021S1Q?

Panasonic's MINAS A5 series is renowned for its exceptional performance and reliability. The MSME021S1Q model upholds this reputation, providing engineers and technicians with a high-quality servo motor that meets the demanding needs of modern industrial applications.

Panasonic MINAS A5 Family MSME021S1Q Servo Motor 100V 200W

Spec Detail

ItemSpecifications
Part NumberMSME021S1Q
DetailsLow inertia, Connector type, IP67
Family NameMINAS A5
SeriesMSME Series
TypeLow inertia
EnclosureIP67
About EnclosureExcept rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
Environmental ConditionsFor more details, please refer to the instruction manual.
Flange sq. dimension60 mm sq.
Flange sq. dimension (Unit:mm)60
Motor lead-out configurationConnector
Motor encoder connectorConnector
Power supply capacity (kVA)0.5
Voltage specifications100 V
Rated output200 W
Rated current (A (rms))2.5
Holding brakewithout
Mass (kg)0.78
Oil sealwith
ShaftD-cut
Rated torque (N ⋅ m)0.64
Momentary Max. peak torque (N ⋅ m)1.91
Max. current (A (o-p))10.6
Regenerative brake frequency (times/min)Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequencyPlease refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)3000
Rated rotational Max. speed (r/min)6000
Moment of inertia of rotor ( x10-4 kg ⋅ m²)0.14
Recommended moment of inertia ratio of the load and the rotor30 times or less
About recommended moment of inertia ratio of the load and the rotorPlease refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications17-bit Absolute/Incremental system
NoticeWhen using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution131072


Permissible load

ItemSpecifications
During assembly: Radial load P-direction (N)392
During assembly: Thrust load A-direction (N)147
During assembly: Thrust load B-direction (N)196
During operation: Radial load P-direction (N)245
During operation: Thrust load A, B-direction (N)98
About permissible loadFor details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".
MSME021S1Q

具體參考

UPC
MSME021S1Q
MPN
MSME021S1Q
