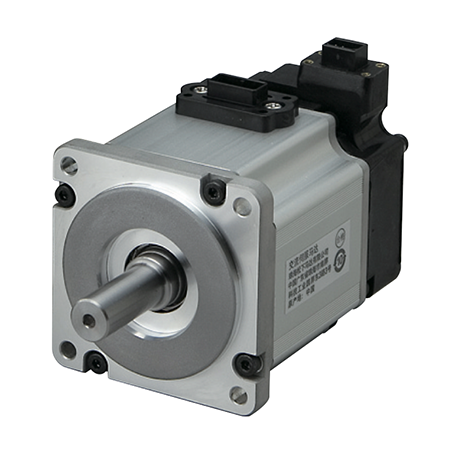

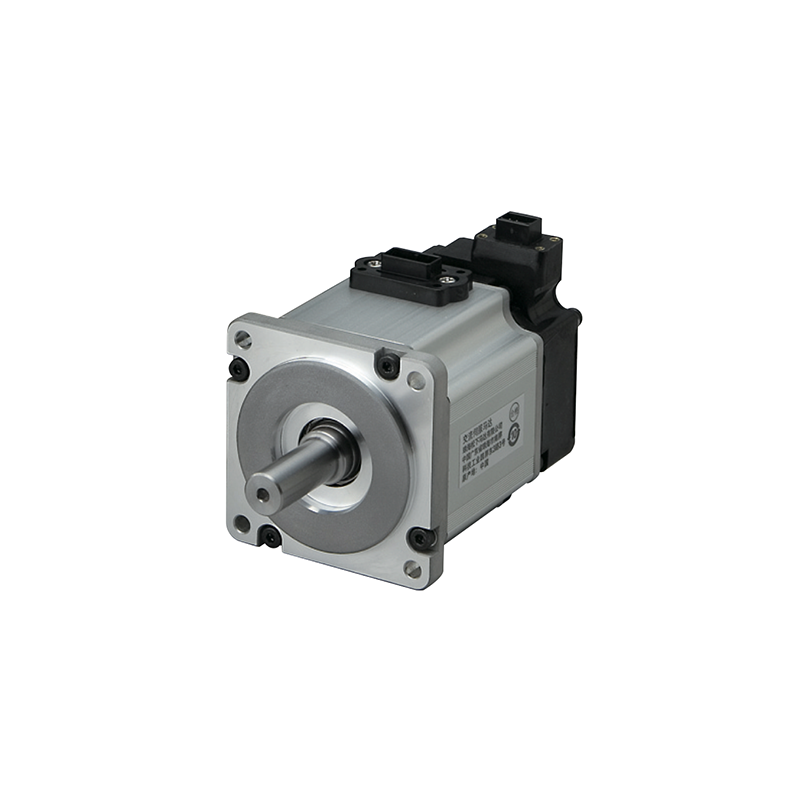

Panasonic MINAS A5 MSME022G1R Servo Motor 200V 200W
$0.00
含稅
Product DescriptionPanasonic MINAS A5 MSME022G1R Servo Motor 200V 200WElevate your automation systems with the Panasonic MINAS A5 MSME022G1R Servo Motor, a precision-engineered component designed for optimal performance and reliability in demanding industrial applications. This high-efficiency servo motor operates at a nominal voltage of 200V and delivers a continuous power output of 200W, making it an ideal choice for applications requiring precise motion control and high torque.Key Features:Advanced Control Technology: The MINAS A5 series integrates Panasonic’s cutting-edge control algorithms, enabling superior torque response and smooth operation even under varying loads. This results in enhanced precision and stability for intricate motion tasks.High Power Density: With a compact desig
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MSME022G1R Servo Motor 200V 200W
Elevate your automation systems with the Panasonic MINAS A5 MSME022G1R Servo Motor, a precision-engineered component designed for optimal performance and reliability in demanding industrial applications. This high-efficiency servo motor operates at a nominal voltage of 200V and delivers a continuous power output of 200W, making it an ideal choice for applications requiring precise motion control and high torque.
Key Features:
Advanced Control Technology: The MINAS A5 series integrates Panasonic’s cutting-edge control algorithms, enabling superior torque response and smooth operation even under varying loads. This results in enhanced precision and stability for intricate motion tasks.
High Power Density: With a compact design, the MSME022G1R offers remarkable power density, delivering 200W of power while maintaining a small footprint. This enables efficient use of space in tight or constrained environments.
Robust Construction: Engineered for durability, this servo motor features high-quality bearings and materials that ensure long-term reliability and reduced maintenance needs, even in harsh industrial settings.
Flexible Integration: The servo motor is compatible with a range of Panasonic controllers and drives, facilitating seamless integration into existing systems or new setups. Its versatile interface supports easy configuration and calibration.
Enhanced Energy Efficiency: Designed with energy-saving technologies, the MINAS A5 MSME022G1R optimizes power consumption, reducing operational costs and contributing to overall system efficiency.
Compact and Lightweight: The motor’s streamlined design minimizes space requirements and simplifies installation, making it a practical choice for various applications including robotics, CNC machinery, and automation systems.
Applications:
- Robotics
- CNC Machines
- Packaging Machinery
- Conveyor Systems
- Textile Machines
- Laboratory Equipment
The Panasonic MINAS A5 MSME022G1R Servo Motor combines performance, efficiency, and reliability, making it a vital component for high-precision automation solutions. Experience unparalleled control and power with this advanced servo motor, and ensure your systems operate at peak performance.
Specifications:
- Model: MINAS A5 MSME022G1R
- Voltage: 200V
- Power Output: 200W
- Motor Type: Servo Motor
- Series: MINAS A5
- Mounting Type: Flange Mount
- Feedback Type: Encoder
Panasonic MINAS A5 Family MSME022G1R Servo Motor 200V 200W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSME022G1R |
| Details | Low inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MSME Series |
| Type | Low inertia |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 60 mm sq. |
| Flange sq. dimension (Unit:mm) | 60 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 0.5 |
| Voltage specifications | 200 V |
| Rated output | 200 W |
| Rated current (A (rms)) | 1.5 |
| Holding brake | with |
| Mass (kg) | 1.2 |
| Oil seal | with |
| Shaft | D-cut |
| Rated torque (N ⋅ m) | 0.64 |
| Momentary Max. peak torque (N ⋅ m) | 1.91 |
| Max. current (A (o-p)) | 6.5 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 6000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.16 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 1.27 or more |
| Engaging time (ms) | 50 or less |
| Releasing time (ms) | 15 or less |
| Exciting current (DC) (A) | 0.36 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 1.2 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 392 |
| During assembly: Thrust load A-direction (N) | 147 |
| During assembly: Thrust load B-direction (N) | 196 |
| During operation: Radial load P-direction (N) | 245 |
| During operation: Thrust load A, B-direction (N) | 98 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
