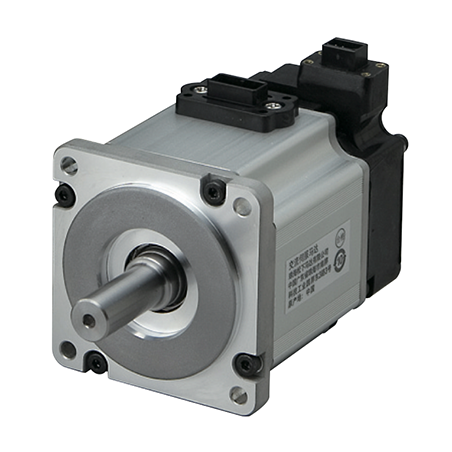

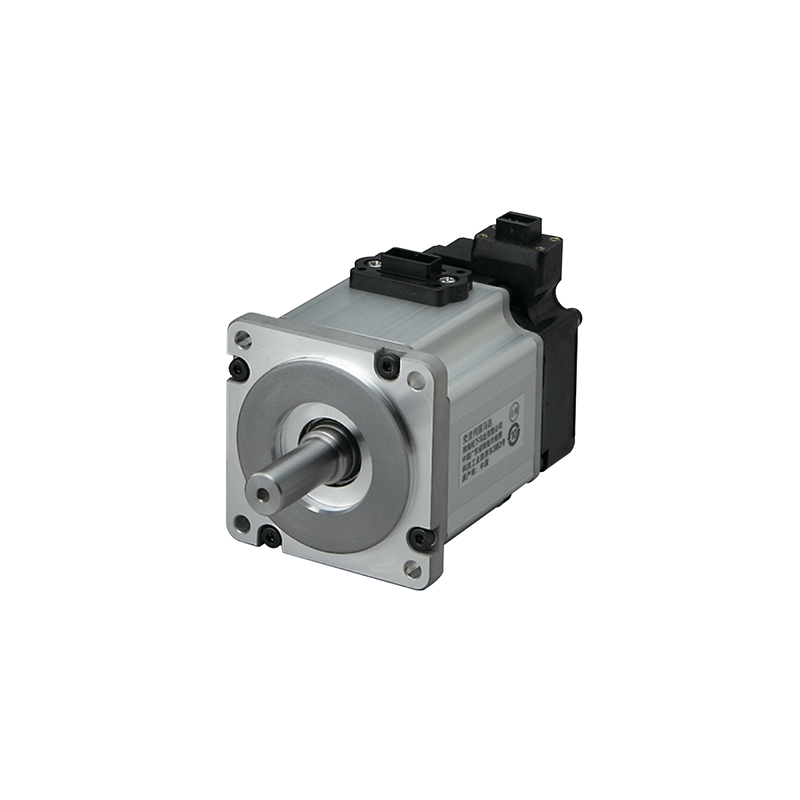

Panasonic MINAS A5 MSME041G1V Servo Motor 100V 400W
$0.00
含稅
Product DescriptionPanasonic MINAS A5 MSME041G1V Servo Motor 100V 400WThe Panasonic MINAS A5 MSME041G1V Servo Motor is an advanced, high-performance solution designed for precision motion control applications. This 100V, 400W servo motor integrates state-of-the-art technology to deliver unparalleled accuracy, efficiency, and reliability.Key Features:Precision Engineering: The MSME041G1V features a high-resolution encoder and a robust feedback system, ensuring precise position control and smooth operation even at high speeds.Superior Torque and Speed: With a rated output of 400W, this servo motor offers exceptional torque and speed performance, making it ideal for demanding applications that require swift and accurate motion.Compact Design: Its compact and lightweight design allows for easy
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MSME041G1V Servo Motor 100V 400W
The Panasonic MINAS A5 MSME041G1V Servo Motor is an advanced, high-performance solution designed for precision motion control applications. This 100V, 400W servo motor integrates state-of-the-art technology to deliver unparalleled accuracy, efficiency, and reliability.
Key Features:
Precision Engineering: The MSME041G1V features a high-resolution encoder and a robust feedback system, ensuring precise position control and smooth operation even at high speeds.
Superior Torque and Speed: With a rated output of 400W, this servo motor offers exceptional torque and speed performance, making it ideal for demanding applications that require swift and accurate motion.
Compact Design: Its compact and lightweight design allows for easy integration into various systems and machinery, optimizing space without compromising performance.
High Efficiency: The advanced motor design minimizes power consumption while maximizing output, contributing to reduced operational costs and enhanced overall system efficiency.
Durable Construction: Built with high-quality materials and rigorous manufacturing standards, the MINAS A5 MSME041G1V is engineered for long-lasting reliability and durability in industrial environments.
Versatile Application: This servo motor is suitable for a wide range of applications including robotics, automation systems, CNC machinery, and other high-precision tasks.
Technical Specifications:
- Rated Voltage: 100V DC
- Rated Output: 400W
- Encoder Resolution: High-resolution encoder for precise feedback
- Motor Type: Brushless DC Servo Motor
- Dimensions: [Specify dimensions]
- Weight: [Specify weight]
- Mounting Type: [Specify mounting type]
- Operating Temperature Range: [Specify temperature range]
- Protection Class: [Specify protection class]
The Panasonic MINAS A5 MSME041G1V Servo Motor stands out for its exceptional performance and reliability, making it an excellent choice for engineers and designers seeking a high-quality servo motor for their advanced motion control needs.
Panasonic MINAS A5 Family MSME041G1V Servo Motor 100V 400W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSME041G1V |
| Details | Low inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MSME Series |
| Type | Low inertia |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 60 mm sq. |
| Flange sq. dimension (Unit:mm) | 60 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 0.9 |
| Voltage specifications | 100 V |
| Rated output | 400 W |
| Rated current (A (rms)) | 4.6 |
| Holding brake | with |
| Mass (kg) | 1.6 |
| Oil seal | with |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 1.3 |
| Momentary Max. peak torque (N ⋅ m) | 3.8 |
| Max. current (A (o-p)) | 19.5 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4282 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 6000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.28 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 1.27 or more |
| Engaging time (ms) | 50 or less |
| Releasing time (ms) | 15 or less |
| Exciting current (DC) (A) | 0.36 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 1.2 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 392 |
| During assembly: Thrust load A-direction (N) | 147 |
| During assembly: Thrust load B-direction (N) | 196 |
| During operation: Radial load P-direction (N) | 245 |
| During operation: Thrust load A, B-direction (N) | 98 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
