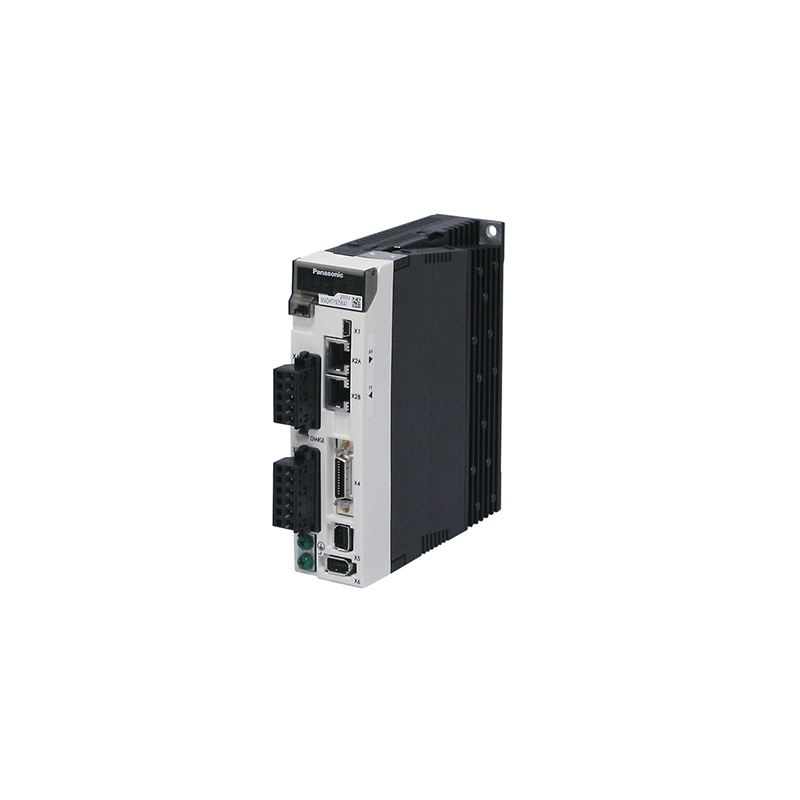

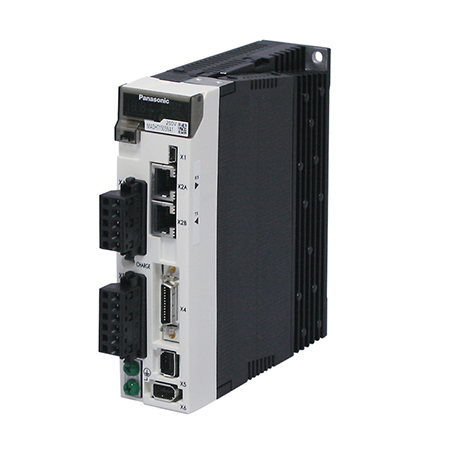

Panasonic MINAS A6 Family MADLN05SG Servo Drive | High Precision Motion Control

Panasonic MINAS A6 MADLN05SG Servo Drive

Name: Panasonic MINAS A6 MADLN05SG Servo Drive
Brand: Panasonic
SKU: MADLN05SG
Availability: OutOfStock

$0.00

Tax included

Panasonic MINAS A6 Family MADLN05SG Servo DriveProduct Overview: The Panasonic MINAS A6 Family MADLN05SG Servo Drive is a cutting-edge solution designed for high-precision motion control applications. Combining exceptional performance with advanced technology, this servo drive is engineered to meet the demanding requirements of modern industrial automation systems.Key Features:Advanced Motion Control: The MADLN05SG offers superior motion control capabilities, including high-speed response and precise positioning, essential for complex automation tasks.High Efficiency: With an emphasis on energy efficiency, the MADLN05SG minimizes power consumption while delivering reliable performance, contributing to reduced operational costs.Compact Design: The servo drive features a compact and robust

Quantity

Out-of-Stock

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Panasonic MINAS A6 Family MADLN05SG Servo Drive

Product Overview: The Panasonic MINAS A6 Family MADLN05SG Servo Drive is a cutting-edge solution designed for high-precision motion control applications. Combining exceptional performance with advanced technology, this servo drive is engineered to meet the demanding requirements of modern industrial automation systems.

Key Features:

Advanced Motion Control: The MADLN05SG offers superior motion control capabilities, including high-speed response and precise positioning, essential for complex automation tasks.
High Efficiency: With an emphasis on energy efficiency, the MADLN05SG minimizes power consumption while delivering reliable performance, contributing to reduced operational costs.
Compact Design: The servo drive features a compact and robust design, allowing for easy integration into tight spaces within control panels or machinery.
Versatile Compatibility: Designed to work seamlessly with a variety of Panasonic MINAS A6 servo motors, the MADLN05SG supports diverse application needs, from simple to highly dynamic systems.
User-Friendly Interface: Equipped with an intuitive interface, the servo drive simplifies setup and tuning processes, making it accessible for both experienced engineers and new users.
High Precision: Achieve exceptional accuracy and smooth operation with advanced feedback systems and precise control algorithms.
Durable Construction: Built to withstand harsh industrial environments, the MADLN05SG features a rugged construction that ensures long-term reliability and durability.

Technical Specifications:

Input Voltage: 200-230V AC
Current Rating: 5A
Control Method: Vector Control
Communication Interfaces: RS-232, RS-485, Ethernet (optional)
Protection Class: IP20
Temperature Range: 0°C to 50°C
Dimensions (HxWxD): [Provide specific dimensions]

Applications:

The Panasonic MINAS A6 Family MADLN05SG Servo Drive is ideal for a wide range of applications including robotics, CNC machinery, packaging equipment, and other automation systems requiring precise and reliable motion control.

Spec Detail

Item	Specifications
Part Number	MADLN05SG
Details	A6SG series RS485/RS232 Communication type (Pulse train only) without safety function
Family Name	MINAS A6
Series	A6SG series
Type	RS485/RS232 Communication type
Frame	A-Frame
Frequency response	3.2 kHz
Control method	Position control
Safety Function	without
Supply voltage	Single/3-phase 200 V
I/F Classification of type	Pulse, Modbus (RS485 /RS232)
Dimensions (W) (Unit: mm)	40
Dimensions (H) (Unit: mm)	150
Dimensions (D) (Unit: mm)	130
Mass (kg)	0.8
Environment	For more details, please refer to the instruction manual.

Basic Specifications

Item	Specifications
Input power: Main circuit	Single/3-phase 200 to 240V +10% -15% 50/60 Hz
Input power: Control circuit	Single phase 200 to 240V +10% -15% 50/60 Hz
Encoder feedback	23-bit (8388608 resolution) absolute encoder, 7-wire serial
Parallel I/O connector: Control signal Input	General purpose 10 inputs The function of general-purpose input is selected by parameters.
Parallel I/O connector: Control signal Output	General purpose 6 output The function of general-purpose output is selected by parameters.
Parallel I/O connector: Analog signal Output	2 outputs (Analog monitor: 2 output)
Parallel I/O connector: Pulse signal Input	2 inputs (Photo-coupler input, Line receiver input)
Parallel I/O connector: Pulse signal Output	4 outputs (Line driver: 3 output, open collector: 1 output)
Communication function	USB, RS232, RS485, Modbus-RTU
Communication function: USB	USB interface to connect to computers for parameter setting or status monitoring.
Communication function: RS232	1:1 communication
Communication function: RS485	1: n communication (max 31)
Communication function: Modbus-RTU	1: n communication
Regeneration	No built-in regenerative resistor (external resistor only)
Control mode	Switching among the following 3 mode is enabled, (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command
