Product Description

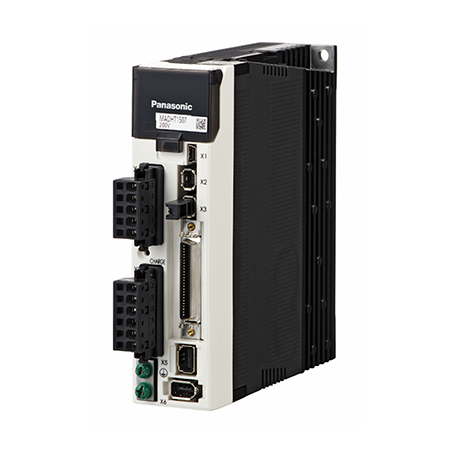

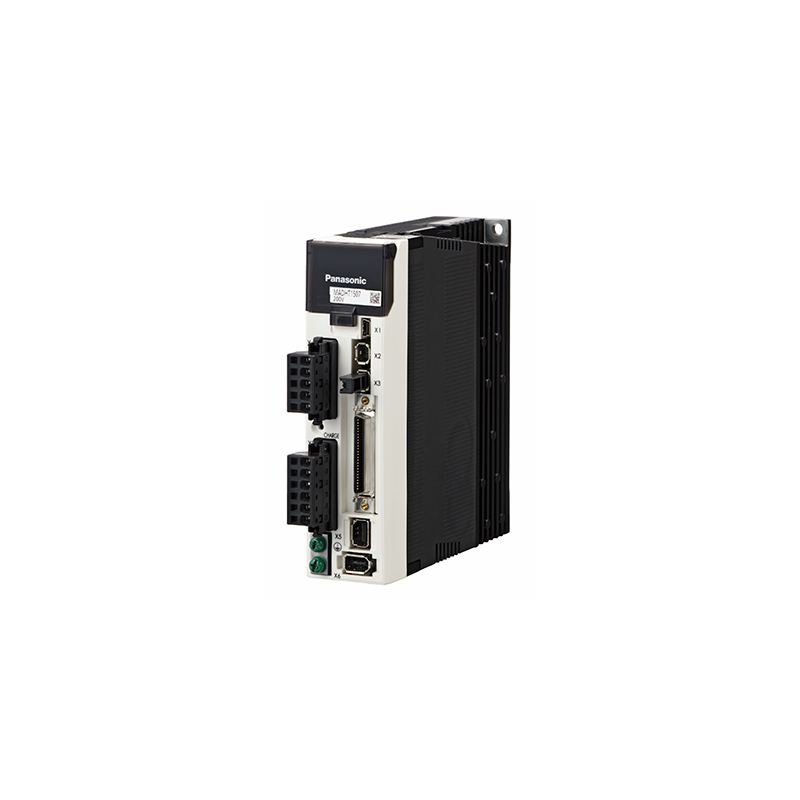

Panasonic MINAS A5 MDDHT2407N21 Servo Driver
The Panasonic MINAS A5 MDDHT2407N21 Servo Driver represents the pinnacle of advanced motion control technology, designed to meet the demands of high-precision automation applications. This state-of-the-art servo driver is engineered to deliver exceptional performance with superior reliability, making it ideal for a wide range of industrial automation and robotics systems.
Key Features:
- High Precision Control: Equipped with advanced control algorithms, the MDDHT2407N21 ensures precise and smooth servo performance, providing excellent torque control and speed regulation for complex motion tasks.
- Robust Construction: Built with high-quality components and a durable design, this servo driver is engineered to withstand harsh operating environments and provide long-lasting performance.
- Versatile Compatibility: The MDDHT2407N21 is compatible with a variety of Panasonic servo motors, offering flexibility in system integration and enhancing overall system efficiency.
- Advanced Communication Interfaces: Featuring multiple communication protocols including EtherCAT and RS-232, it ensures seamless integration with modern control systems and facilitates easy configuration and monitoring.
- Enhanced Safety Features: Integrated safety functions such as overcurrent protection, thermal protection, and fault detection safeguard both the servo driver and connected machinery, minimizing downtime and maintenance costs.
- User-Friendly Interface: The intuitive setup and tuning interface simplify configuration and optimization, allowing for quick adjustments and improved system performance.
Specifications:
- Model Number: MDDHT2407N21
- Input Voltage: 200-230V AC
- Rated Output Current: 7.0A
- Control Type: Vector Control / Position Control
- Communication Interfaces: EtherCAT, RS-232
- Protection Features: Overcurrent, Overvoltage, Overtemperature, Fault Detection
- Dimensions: [Insert dimensions]
- Weight: [Insert weight]
The Panasonic MINAS A5 MDDHT2407N21 Servo Driver is the ideal solution for applications requiring high-speed and high-accuracy motion control. Its robust performance, combined with its user-friendly features and advanced safety functions, makes it a valuable asset for enhancing productivity and operational efficiency in automation systems.
Panasonic MINAS A5 Family MDDHT2407N21 Servo Driver
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MDDHT2407N21 |
| Details | A5ⅡN series RTEX, Ultra high-speed Network with the safety function |
| Family Name | MINAS A5 |
| Series | A5ⅡN series |
| Type | RTEX, Ultra high-speed Network |
| Frame | D-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control, Velocity control, Torque control, and Full-closed control |
| Safety Function | with |
| Power device Max. current rating | 15A |
| Current detector current rating | 7.5A |
| Supply voltage | 3-phase 400 V |
| I/F Classification of type | RTEX |
| Dimensions (W) (Unit: mm) | 85 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 172 |
| Mass (kg) | 1.9 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single phase 380 to 480V +10% -15% 50/60 Hz |
| Input power: Control circuit | DC 24V ± 15% |
| Encoder feedback | 17-bit (131072 resolution) absolute encoder, 7-wire serial 20-bit (1048576 resolution) incremental encoder, 5-wire serial |
| External scale feedback | A/B phase, homing signal differential input. Serial communication is also supported. |
| Parallel I/O connector: Control signal Input | Each 8 input can be assigned by the parameter. |
| Parallel I/O connector: Control signal Output | Each 3 input can be assigned by the parameter. |
| Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 1, 2 output) |
| Parallel I/O connector: Pulse signal Output | Line driver output for Encoder pulses or external scale pulses (A/B phase signal). |
| Communication function | RTEX, USB |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Communication function: RTEX | Communication for transmission of a real-time operation command, the parameter setting, or the status monitoring. |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | 1. Semi-closed control Position control: Profile position control [PP], Cyclic position control [CP] Velocity control: Cyclic velocity control [CV] Torque control: Cyclic torque control [CT] 2.Full-closed control Position control: Profile position control [PP], Cyclic position control [CP] * Switch two modes (above-mentioned 1 and 2) according to the parameter. * Switch PP/CP/CV/CT mode according to the RTEX communication command. |
