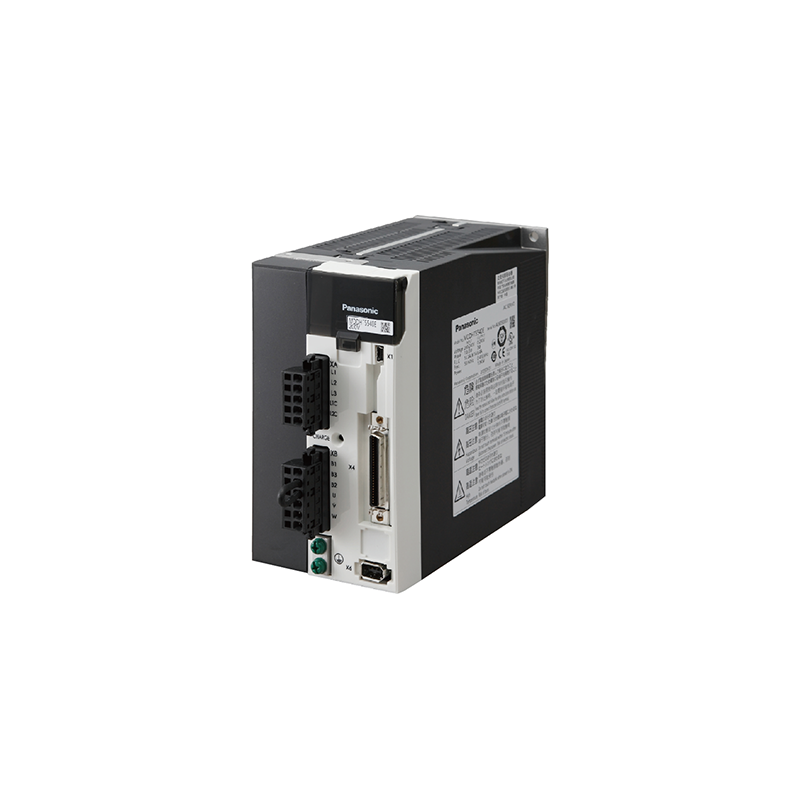

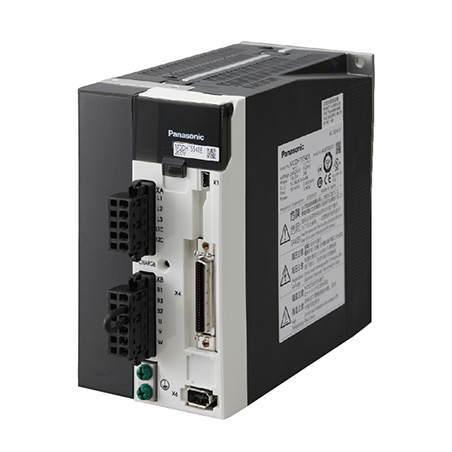

Panasonic MINAS A5 MDDHT5540E Servo Driver
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MDDHT5540E Servo DriverThe Panasonic MINAS A5 MDDHT5540E Servo Driver represents a pinnacle in precision motion control technology, tailored for high-performance industrial automation applications. This advanced servo driver is engineered to deliver exceptional accuracy, robustness, and energy efficiency in demanding environments.Key Features:High Precision Control: Equipped with advanced feedback systems, the MINAS A5 MDDHT5540E offers unparalleled accuracy in motion control, minimizing position errors and ensuring smooth operation.Wide Power Range: The driver supports a wide voltage range, making it adaptable to various power supply requirements and operational conditions.Enhanced Efficiency: Utilizing Panasonic's cutting-edge technology, the servo d
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MDDHT5540E Servo Driver
The Panasonic MINAS A5 MDDHT5540E Servo Driver represents a pinnacle in precision motion control technology, tailored for high-performance industrial automation applications. This advanced servo driver is engineered to deliver exceptional accuracy, robustness, and energy efficiency in demanding environments.
Key Features:
High Precision Control: Equipped with advanced feedback systems, the MINAS A5 MDDHT5540E offers unparalleled accuracy in motion control, minimizing position errors and ensuring smooth operation.
Wide Power Range: The driver supports a wide voltage range, making it adaptable to various power supply requirements and operational conditions.
Enhanced Efficiency: Utilizing Panasonic's cutting-edge technology, the servo driver achieves high energy efficiency, reducing operational costs and heat generation.
Robust Performance: Built to withstand harsh industrial environments, the MINAS A5 MDDHT5540E features a durable design that ensures reliable performance even in challenging conditions.
Versatile Compatibility: This servo driver is compatible with a broad range of servo motors, providing flexibility in system design and integration.
Advanced Communication: The device supports multiple communication protocols, including EtherCAT, for seamless integration with modern automation systems and ease of data exchange.
User-Friendly Interface: The intuitive setup and configuration interface simplify the process of parameter adjustments and system tuning, reducing installation time and effort.
Safety Features: Equipped with built-in safety functions and certifications, the MINAS A5 MDDHT5540E ensures secure operation and compliance with industry standards.
Applications:
The Panasonic MINAS A5 MDDHT5540E is ideal for use in precision machinery, robotics, automated manufacturing systems, and other applications where high-performance motion control is essential. Its versatile design and advanced features make it a valuable component in various industrial settings, from automotive and aerospace to electronics and packaging.
Specifications:
- Model: MINAS A5 MDDHT5540E
- Power Supply Voltage: [Specify range]
- Output Current: [Specify range]
- Control Type: Digital Servo Control
- Communication Protocols: EtherCAT, [Additional protocols if applicable]
- Dimensions: [Specify dimensions]
- Weight: [Specify weight]
Panasonic MINAS A5 Family MDDHT5540E Servo Driver
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MDDHT5540E |
| Details | A5E series Position control type without the safety function |
| Family Name | MINAS A5 |
| Series | A5E series |
| Type | Position control type |
| Frame | D-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control |
| Safety Function | without |
| Power device Max. current rating | 50A |
| Current detector current rating | 40A |
| Supply voltage | Single/3-phase 200 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 85 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 170 |
| Mass (kg) | 1.8 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single/3-phase 200 to 240V +10% -15% 50/60 Hz |
| Input power: Control circuit | Single phase 200 to 240V +10% -15% 50/60 Hz |
| Encoder feedback | 20-bit (1048576 resolution) incremental encoder, 5-wire serial |
| Parallel I/O connector: Control signal Input | General purpose 10 inputs The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: Control signal Output | General purpose 6 output The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input | 2 inputs (Photo-coupler input, Line receiver input) |
| Parallel I/O connector: Pulse signal Output | 4 outputs (Line driver: 3 output, open collector: 1 output) |
| Communication function | USB |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | Switching among the following 3 mode is enabled, (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command |
MDDHT5540E
Specific References
- UPC
- MDDHT5540E
- MPN
- MDDHT5540E
New
