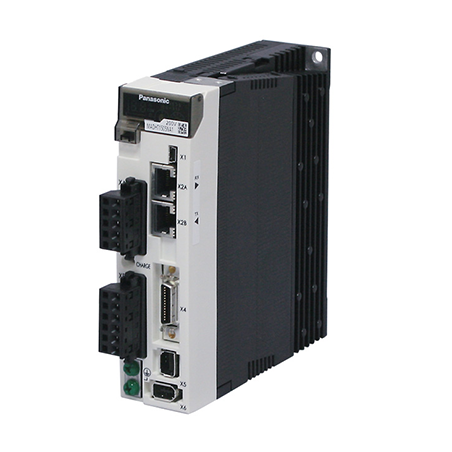

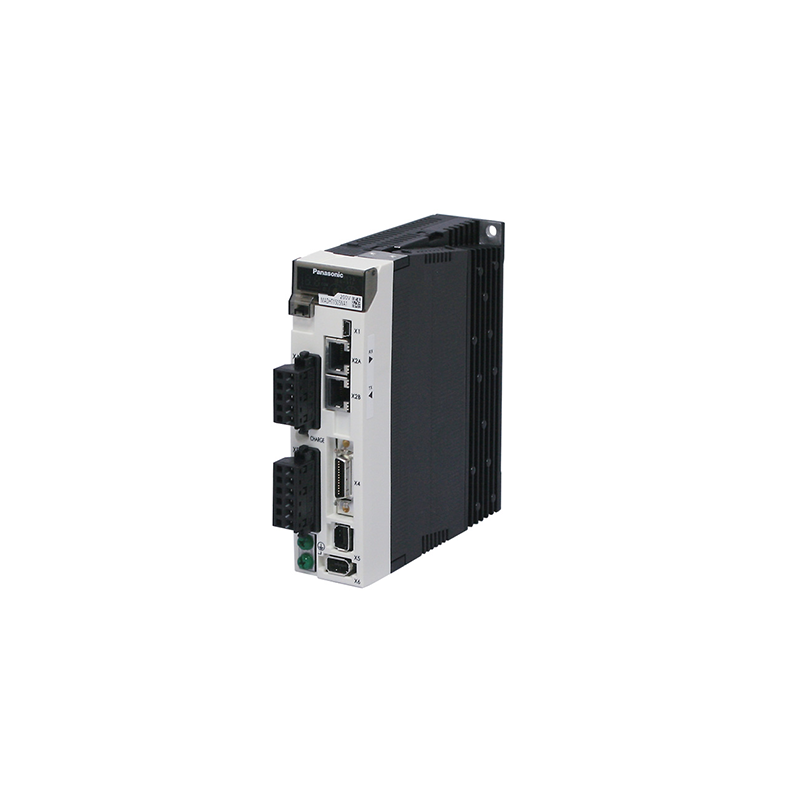

Panasonic MINAS A5 MGDHTB4A2N21 Servo Driver

Name: Panasonic MINAS A5 MGDHTB4A2N21 Servo Driver
Brand: Panasonic
SKU: MGDHTB4A2N21
Availability: OutOfStock

$0.00

Tax included

Product DescriptionPanasonic MINAS A5 MGDHTB4A2N21 Servo DriverThe Panasonic MINAS A5 MGDHTB4A2N21 Servo Driver is engineered for precision motion control in advanced automation applications. Featuring cutting-edge technology, this high-performance servo driver is designed to deliver exceptional accuracy, reliability, and efficiency in a wide range of industrial settings.Key Features:High Precision Control: Equipped with advanced digital signal processing (DSP) technology, the MINAS A5 MGDHTB4A2N21 ensures precise and responsive control of servo motors, enhancing overall system performance and accuracy.Compact Design: The compact form factor of this servo driver allows for easy integration into space-constrained environments, reducing installation footprint without compromising performance

Quantity

Out-of-Stock

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Product Description

Panasonic MINAS A5 MGDHTB4A2N21 Servo Driver

The Panasonic MINAS A5 MGDHTB4A2N21 Servo Driver is engineered for precision motion control in advanced automation applications. Featuring cutting-edge technology, this high-performance servo driver is designed to deliver exceptional accuracy, reliability, and efficiency in a wide range of industrial settings.

Key Features:

High Precision Control: Equipped with advanced digital signal processing (DSP) technology, the MINAS A5 MGDHTB4A2N21 ensures precise and responsive control of servo motors, enhancing overall system performance and accuracy.
Compact Design: The compact form factor of this servo driver allows for easy integration into space-constrained environments, reducing installation footprint without compromising performance.
Enhanced Efficiency: With a high-efficiency power supply and intelligent current control, this servo driver minimizes energy consumption while maximizing operational efficiency and reducing heat generation.
Robust Communication Protocols: Supports multiple communication protocols, including EtherCAT and RS-232/485, enabling seamless integration with various PLCs and automation systems for versatile applications.
User-Friendly Interface: The intuitive setup and programming interface simplify configuration and adjustments, allowing for quick deployment and easy maintenance.
Advanced Diagnostics: Integrated diagnostic functions and real-time monitoring capabilities provide valuable insights into system performance, aiding in proactive maintenance and troubleshooting.

Applications:

The Panasonic MINAS A5 MGDHTB4A2N21 Servo Driver is ideal for applications such as robotics, CNC machines, packaging equipment, and other automated machinery where precision and reliability are paramount.

Specifications:

Model: MGDHTB4A2N21
Input Voltage: 200-230V AC
Output Current: 4A continuous
Control Method: Digital Signal Processing (DSP)
Communication Protocols: EtherCAT, RS-232/485
Dimensions: [Insert Dimensions]
Weight: [Insert Weight]
Operating Temperature: [Insert Temperature Range]
Protection Class: [Insert Protection Class]

Elevate your automation systems with the Panasonic MINAS A5 MGDHTB4A2N21 Servo Driver, where superior performance meets cutting-edge technology.

Panasonic MINAS A5 Family MGDHTB4A2N21 Servo Driver

Spec Detail

Item	Specifications
Part Number	MGDHTB4A2N21
Details	A5ⅡN series RTEX, Ultra high-speed Network with the safety function
Family Name	MINAS A5
Series	A5ⅡN series
Type	RTEX, Ultra high-speed Network
Frame	G-Frame
Frequency response	2.3 kHz
Control method	Position control, Velocity control, Torque control, and Full-closed control
Safety Function	with
Power device Max. current rating	150A
Current detector current rating	120A
Supply voltage	3-phase 400 V
I/F Classification of type	RTEX
Dimensions (W) (Unit: mm)	233
Dimensions (H) (Unit: mm)	220
Dimensions (D) (Unit: mm)	334
Mass (kg)	13.5
Environment	For more details, please refer to the instruction manual.

Basic Specifications

Item	Specifications
Input power: Main circuit	Single phase 380 to 480V +10% -15% 50/60 Hz
Input power: Control circuit	DC 24V ± 15%
Encoder feedback	17-bit (131072 resolution) absolute encoder, 7-wire serial 20-bit (1048576 resolution) incremental encoder, 5-wire serial
External scale feedback	A/B phase, homing signal differential input. Serial communication is also supported.
Parallel I/O connector: Control signal Input	Each 8 input can be assigned by the parameter.
Parallel I/O connector: Control signal Output	Each 3 input can be assigned by the parameter.
Parallel I/O connector: Analog signal Output	2 outputs (Analog monitor: 1, 2 output)
Parallel I/O connector: Pulse signal Output	Line driver output for Encoder pulses or external scale pulses (A/B phase signal).
Communication function	RTEX, USB
Communication function: USB	USB interface to connect to computers for parameter setting or status monitoring.
Communication function: RTEX	Communication for transmission of a real-time operation command, the parameter setting, or the status monitoring.
Regeneration	No built-in regenerative resistor (external resistor only)
Control mode	1. Semi-closed control Position control: Profile position control [PP], Cyclic position control [CP] Velocity control: Cyclic velocity control [CV] Torque control: Cyclic torque control [CT] 2.Full-closed control Position control: Profile position control [PP], Cyclic position control [CP] * Switch two modes (above-mentioned 1 and 2) according to the parameter. * Switch PP/CP/CV/CT mode according to the RTEX communication command.

Reference MGDHTB4A2N21

Specific References

UPC: MGDHTB4A2N21
MPN: MGDHTB4A2N21

Condition New
