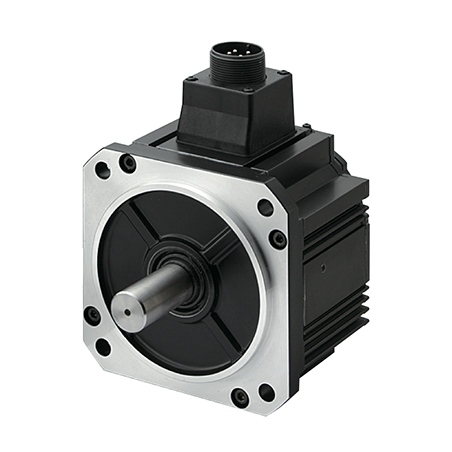

Panasonic MINAS A5 MGME302SCGM Servo Motor 200V 3000W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MGME302SCGM Servo Motor 200V 3000WElevate your automation and control systems with the Panasonic MINAS A5 MGME302SCGM Servo Motor, a pinnacle of precision and performance in industrial motion control. Designed for high-demand applications, this 200V, 3000W servo motor integrates advanced technology to deliver exceptional torque, speed, and reliability.Key Features:Powerful Performance: With a robust 3000W power output and a 200V operating voltage, the MINAS A5 MGME302SCGM ensures high torque and swift acceleration, making it ideal for applications requiring precision and rapid response.High Efficiency: Engineered for optimal efficiency, this servo motor minimizes energy consumption while maximizing performance, reducing operational costs and enhancing
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MGME302SCGM Servo Motor 200V 3000W
Elevate your automation and control systems with the Panasonic MINAS A5 MGME302SCGM Servo Motor, a pinnacle of precision and performance in industrial motion control. Designed for high-demand applications, this 200V, 3000W servo motor integrates advanced technology to deliver exceptional torque, speed, and reliability.
Key Features:
- Powerful Performance: With a robust 3000W power output and a 200V operating voltage, the MINAS A5 MGME302SCGM ensures high torque and swift acceleration, making it ideal for applications requiring precision and rapid response.
- High Efficiency: Engineered for optimal efficiency, this servo motor minimizes energy consumption while maximizing performance, reducing operational costs and enhancing productivity.
- Advanced Control Technology: The MINAS A5 series incorporates Panasonic’s cutting-edge control technology, offering precise positioning and speed control. The integrated feedback system ensures accurate motion and smooth operation.
- Durable Construction: Built to withstand demanding industrial environments, the servo motor features a durable housing and high-quality components that provide long-term reliability and reduced maintenance needs.
- Compact Design: Despite its powerful capabilities, the servo motor boasts a compact design, facilitating easy integration into a variety of machinery and systems without compromising space.
Applications:
The Panasonic MINAS A5 MGME302SCGM Servo Motor is ideal for a range of applications, including:
- CNC machinery
- Robotics
- Conveyor systems
- Packaging equipment
- Textile machines
Specifications:
- Model: MINAS A5 MGME302SCGM
- Voltage: 200V
- Power Output: 3000W
- Type: Servo Motor
- Control Technology: Advanced feedback and control systems
- Construction: High durability and compact design
Enhance your operational efficiency and precision with the Panasonic MINAS A5 MGME302SCGM Servo Motor, a superior choice for demanding industrial applications.
Panasonic MINAS A5 Family MGME302SCGM Servo Motor 200V 3000W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MGME302SCGM |
| Details | Middle inertia, Connector type, IP65 |
| Family Name | MINAS A5 |
| Series | MGME Series |
| Type | Middle inertia |
| Special Order Product | Special Order Product |
| Cautions for Special ordering product | Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan. |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 176 mm sq. |
| Flange sq. dimension (Unit:mm) | 176 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 4.5 |
| Voltage specifications | 200 V |
| Rated output | 3000 W |
| Rated current (A (rms)) | 22.6 |
| Holding brake | without |
| Mass (kg) | 20.0 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 28.7 |
| Momentary Max. peak torque (N ⋅ m) | 71.7 |
| Max. current (A (o-p)) | 80 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 1000 |
| Rated rotational Max. speed (r/min) | 2000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 48.4 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 17-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 131072 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 2058 |
| During assembly: Thrust load A-direction (N) | 980 |
| During assembly: Thrust load B-direction (N) | 1176 |
| During operation: Radial load P-direction (N) | 1470 |
| During operation: Thrust load A, B-direction (N) | 490 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MGME302SCGM
Specific References
- UPC
- MGME302SCGM
- MPN
- MGME302SCGM
