- Out-of-Stock

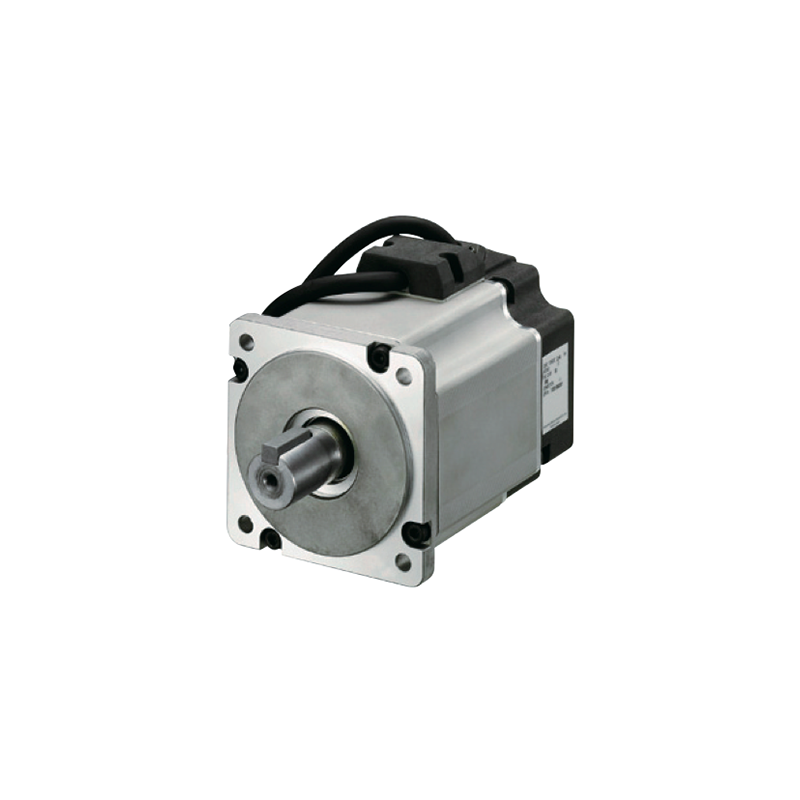

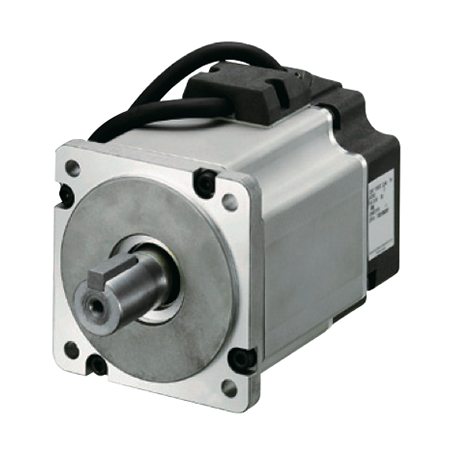

Panasonic MINAS A5 MHMD022S32N Servo Motor 200V 200W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MHMD022S32N Servo Motor 200V 200WThe Panasonic MINAS A5 MHMD022S32N Servo Motor is engineered to deliver exceptional performance and precision for demanding automation applications. With a robust 200V power supply and 200W output, this servo motor is designed for high-efficiency operations, making it an ideal choice for advanced industrial machinery and robotics.Key Features:Power & Performance: The MHMD022S32N provides a stable 200V power supply with 200W output, ensuring reliable and high-performance operation in various applications.Precision Engineering: Featuring advanced feedback control, this servo motor offers exceptional accuracy and response, crucial for high-precision tasks.Durability: Built to withstand the rigors of industrial environments
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MHMD022S32N Servo Motor 200V 200W
The Panasonic MINAS A5 MHMD022S32N Servo Motor is engineered to deliver exceptional performance and precision for demanding automation applications. With a robust 200V power supply and 200W output, this servo motor is designed for high-efficiency operations, making it an ideal choice for advanced industrial machinery and robotics.
Key Features:
- Power & Performance: The MHMD022S32N provides a stable 200V power supply with 200W output, ensuring reliable and high-performance operation in various applications.
- Precision Engineering: Featuring advanced feedback control, this servo motor offers exceptional accuracy and response, crucial for high-precision tasks.
- Durability: Built to withstand the rigors of industrial environments, the MINAS A5 series is known for its durability and long service life.
- Compact Design: Its compact and lightweight design allows for easy integration into space-constrained applications without compromising on power.
- Versatile Application: Suitable for a wide range of applications including CNC machines, packaging machinery, and other automation systems.
Technical Specifications:
- Model: MINAS A5 MHMD022S32N
- Voltage: 200V
- Power Rating: 200W
- Control Type: Digital Servo
- Feedback Type: Incremental Encoder
- Mounting Type: Flange Mount
- Protection Class: IP65
Applications:
- CNC Machinery
- Industrial Robots
- Packaging Equipment
- Assembly Lines
- Automated Workstations
The Panasonic MINAS A5 MHMD022S32N Servo Motor combines cutting-edge technology with unparalleled reliability, making it a top choice for engineers and system integrators seeking high-performance motion control solutions.
Panasonic MINAS A5 Family MHMD022S32N Servo Motor 200V 200W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHMD022S32N |
| Details | Servo motor with Gear reducer, High inertia, Lead wire type, IP44 |
| Family Name | MINAS A5 |
| Series | MHMD Series |
| Type | High inertia |
| Enclosure | IP44 |
| About Enclosure | at gear reducer |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.5 |
| Voltage specifications | 200 V |
| Rated output | 200 W |
| Rated current (A (rms)) | 0.5 |
| Holding brake | without |
| Mass (kg) | 2.66 |
| Gear reduction ratio | 1/9 |
| Gear type | For high precision |
| Shaft | Key-way |
| [About Characteristic of Gear Reducer] | The output, rated rotational speed, maximum rotational speed, rated torque, instantaneous maximum torque of the geared servomotor are values on the output shaft of the gear. |
| Output (W) | 132 |
| Rated torque (N ⋅ m) | 3.72 |
| Momentary Max. peak torque (N ⋅ m) | 11.3 |
| Max. current (A (o-p)) | 6.9 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| Rated rotational speed (r/min) | 333 |
| Rated rotational Max. speed (r/min) | 555 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.688 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or smaller |
| Rotary encoder: specifications | 17-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 131072 |
Permissible load
| Item | Specifications |
|---|---|
| Radial load (N) | 1180 |
| Thrust load (N) | 588 |
MHMD022S32N
Specific References
- UPC
- MHMD022S32N
- MPN
- MHMD022S32N
