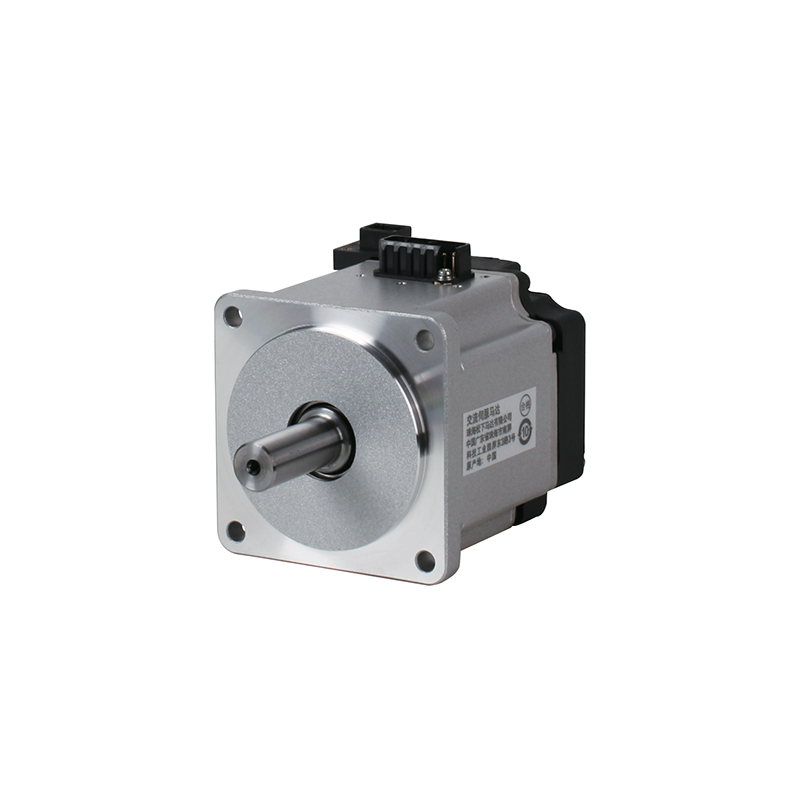

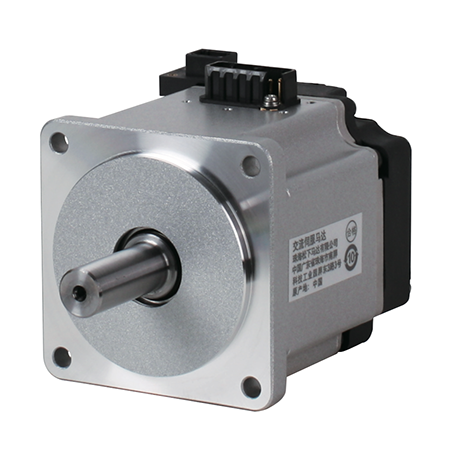

Panasonic MINAS A5 MSMD021G1B Servo Motor 100V 200W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MSMD021G1B Servo Motor 100V 200WThe Panasonic MINAS A5 MSMD021G1B Servo Motor represents the pinnacle of precision and reliability in motion control systems. Engineered for high-performance applications, this 100V 200W servo motor is designed to deliver exceptional torque and speed stability with minimal maintenance.Key Features:High Efficiency: With a 200W rated power output and 100V operating voltage, the MSMD021G1B provides efficient energy conversion, ensuring optimal performance and reduced power consumption.Precision Control: This servo motor integrates advanced digital signal processing technology, offering superior accuracy and responsiveness for precise motion control in complex systems.Robust Construction: The motor’s robust design ensures du
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MSMD021G1B Servo Motor 100V 200W
The Panasonic MINAS A5 MSMD021G1B Servo Motor represents the pinnacle of precision and reliability in motion control systems. Engineered for high-performance applications, this 100V 200W servo motor is designed to deliver exceptional torque and speed stability with minimal maintenance.
Key Features:
- High Efficiency: With a 200W rated power output and 100V operating voltage, the MSMD021G1B provides efficient energy conversion, ensuring optimal performance and reduced power consumption.
- Precision Control: This servo motor integrates advanced digital signal processing technology, offering superior accuracy and responsiveness for precise motion control in complex systems.
- Robust Construction: The motor’s robust design ensures durability and longevity, even under demanding operational conditions. Its high-quality bearings and heat-resistant materials contribute to a longer lifespan.
- Compact Size: Its compact form factor allows for easy integration into various applications where space is at a premium, without compromising on performance.
- Low Vibration and Noise: The MINAS A5 series is known for its smooth operation with minimal vibration and noise, enhancing the overall operational environment.
- Versatile Application: Ideal for use in robotics, CNC machinery, and other automation systems where precise and reliable motion control is critical.
Technical Specifications:
- Rated Voltage: 100V
- Rated Power: 200W
- Type: Servo Motor
- Model Number: MSMD021G1B
- Control Type: Digital
- Applications: Robotics, CNC, Automation Systems
Why Choose Panasonic MINAS A5 MSMD021G1B?
The Panasonic MINAS A5 MSMD021G1B Servo Motor is a testament to Panasonic's commitment to quality and innovation. Its high precision, durability, and efficiency make it a preferred choice for professionals seeking top-tier motion control solutions. The integration of cutting-edge technology ensures that it meets the rigorous demands of modern industrial applications.
Panasonic MINAS A5 Family MSMD021G1B Servo Motor 100V 200W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSMD021G1B |
| Details | Low inertia, Lead wire type, IP65 |
| Family Name | MINAS A5 |
| Series | MSMD Series |
| Type | Low inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 60 mm sq. |
| Flange sq. dimension (Unit:mm) | 60 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.5 |
| Voltage specifications | 100 V |
| Rated output | 200 W |
| Rated current (A (rms)) | 2.5 |
| Holding brake | with |
| Mass (kg) | 1.3 |
| Oil seal | without |
| Shaft | Round |
| Rated torque (N ⋅ m) | 0.64 |
| Momentary Max. peak torque (N ⋅ m) | 1.91 |
| Max. current (A (o-p)) | 10.6 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.16 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 1.27 or more |
| Engaging time (ms) | 50 or less |
| Releasing time (ms) | 15 or less |
| Exciting current (DC) (A) | 0.36 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 1.2 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 392 |
| During assembly: Thrust load A-direction (N) | 147 |
| During assembly: Thrust load B-direction (N) | 196 |
| During operation: Radial load P-direction (N) | 245 |
| During operation: Thrust load A, B-direction (N) | 98 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
MSMD021G1B
Specific References
- UPC
- MSMD021G1B
- MPN
- MSMD021G1B
