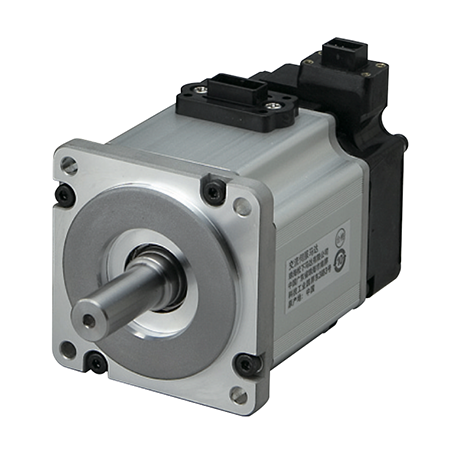

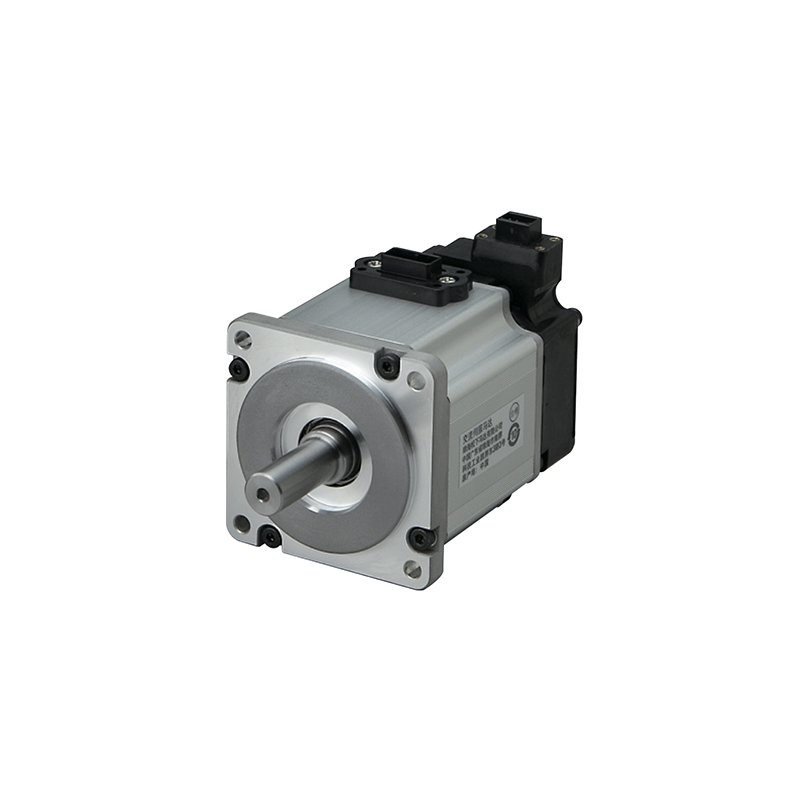

Panasonic MINAS A5 MSME011S42N Servo Motor 100V 100W
$0.00
Tax included
Product DescriptionPanasonic MINAS A5 MSME011S42N Servo Motor 100V 100WThe Panasonic MINAS A5 MSME011S42N Servo Motor offers precision, reliability, and high-performance for a wide range of applications. Designed for 100V power supply and with a power rating of 100W, this servo motor stands out in both efficiency and operational excellence.Key Features:High Precision Control: Equipped with advanced feedback systems and a high-resolution encoder, the MSME011S42N ensures accurate positioning and smooth motion control, essential for applications requiring meticulous movement and high-speed operation.Compact and Robust Design: Its compact size and robust construction make it ideal for space-constrained environments while maintaining durability and performance under various conditions.Superior
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Description
Panasonic MINAS A5 MSME011S42N Servo Motor 100V 100W
The Panasonic MINAS A5 MSME011S42N Servo Motor offers precision, reliability, and high-performance for a wide range of applications. Designed for 100V power supply and with a power rating of 100W, this servo motor stands out in both efficiency and operational excellence.
Key Features:
- High Precision Control: Equipped with advanced feedback systems and a high-resolution encoder, the MSME011S42N ensures accurate positioning and smooth motion control, essential for applications requiring meticulous movement and high-speed operation.
- Compact and Robust Design: Its compact size and robust construction make it ideal for space-constrained environments while maintaining durability and performance under various conditions.
- Superior Efficiency: The motor’s design optimizes energy consumption, reducing operational costs and extending the motor’s lifespan. It operates efficiently even in demanding scenarios, providing consistent performance.
- Versatile Application: Suitable for a variety of industrial automation tasks, including robotics, CNC machinery, and packaging equipment. Its versatility makes it a reliable choice for diverse automation needs.
- Easy Integration: Compatible with Panasonic’s A5 series controllers, the MSME011S42N integrates seamlessly into existing systems, simplifying setup and reducing time-to-market.
Technical Specifications:
- Voltage: 100V
- Power Rating: 100W
- Encoder Resolution: High-resolution encoder for precise feedback
- Dimensions: Compact form factor for versatile mounting options
- Operating Temperature Range: Designed to operate effectively in a wide range of temperatures
- Protection Class: Robust protection against dust and moisture, ensuring reliable performance in industrial environments
Applications:
The Panasonic MINAS A5 MSME011S42N is ideal for applications such as:
- Industrial Automation: Enhances precision in manufacturing and assembly processes.
- Robotics: Provides reliable control and movement for robotic arms and other automated systems.
- CNC Machines: Ensures accurate and consistent performance in CNC machinery.
- Packaging Machinery: Optimizes movement and control in various packaging applications.
Panasonic MINAS A5 Family MSME011S42N Servo Motor 100V 100W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSME011S42N |
| Details | Servo motor with Gear reducer, Low inertia, Connector type, IP44 |
| Family Name | MINAS A5 |
| Series | MSME Series |
| Type | Low inertia |
| Enclosure | IP44 |
| About Enclosure | at gear reducer |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 0.4 |
| Voltage specifications | 100 V |
| Rated output | 100 W |
| Rated current (A (rms)) | 0.4 |
| Holding brake | with |
| Mass (kg) | 1.2 |
| Gear reduction ratio | 1/9 |
| Gear type | For high precision |
| Shaft | Key-way |
| [About Characteristic of Gear Reducer] | The output, rated rotational speed, maximum rotational speed, rated torque, instantaneous maximum torque of the geared servomotor are values on the output shaft of the gear. |
| Output (W) | 80 |
| Rated torque (N ⋅ m) | 2.25 |
| Momentary Max. peak torque (N ⋅ m) | 6.86 |
| Max. current (A (o-p)) | 6.9 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4280 |
| Rated rotational speed (r/min) | 333 |
| Rated rotational Max. speed (r/min) | 666 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.0883 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or smaller |
| Rotary encoder: specifications | 17-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 131072 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 0.29 or more |
| Engaging time (ms) | 35 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.3 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 1.2 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| Radial load (N) | 588 |
| Thrust load (N) | 294 |
